Aquamatic WK200 Installation Instructions

INSTALLATION INSTRUCTIONS

fOR wk200/300/400 wATER fILTER kITS

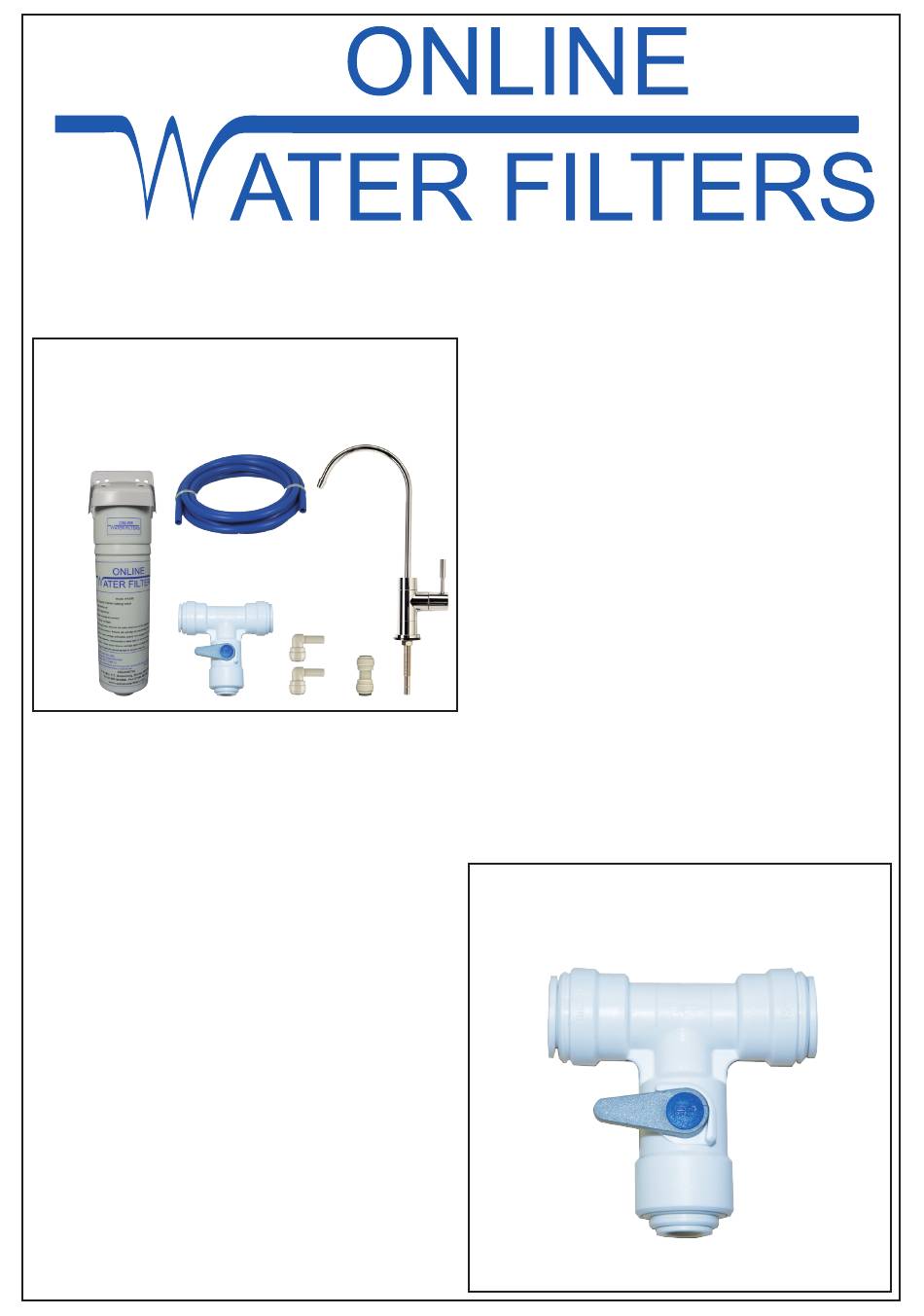

CONTENTS
1. Filter head, bracket, cartridge
2. Stem Elbows
3. Isolating valve
4. Tube 3 metres
5. Tap
6. Connector for tap
1

GENERAL PRECAUTIONS

Install on cold water lines only
Maximum pressure 120 p.s.i – minimum pressure 25 p.s.i.
Maximum temperature 100 deg F.
WARNING THIS FILTER MUST BE PROTECTED FROM
FREEZING. FAILURE TO DO SO MAY RESULT IN CRACK-
ING OF THE FILTER AND WATER LEAKAGE.

INSTALLING ISOLATING VALVE (3)

(refer to figure 1)
Locate the pipe supplying the cold water to your kitchen sink. This
should be 15mm copper, in the unlikely event this it is not contact
your dealer for advice since this valve is unsuitable for any other
type of pipe. (If you have a water softener installed you must con-
nect the isolating valve to the hard water inlet side, not the softened
side).
Turn off the cold water supply and drain the cold main. This can
be done by opening the cold tap and then running the hot tap for a
minute or so to open the ball valve in the tank. If you have a mains
fed water system such as a combi boiler or unvented system then
you will not need to do this.
Select a straight length of copper on the cold supply to the sink with
at least an 80mm clear run. Use a copper cutter to remove a section
15mm long at least 35mm from the end. Pipe must be clean and free
of paint/solder/flux etc. If you have to use a saw (not recommended)
you will have to ensure that the ends of the pipe are filed completely
free of sharp/rough ends because this will damage the sealing 'O'
rings. See figure 3 for how to connect the pushfit fittings. Ensure
valve is closed (lever at right angle as in fig 1) and turn water supply
back on. Check for leaks.
4
3
2
6

IMPORTANT NOTES

You should read these instructions fully before starting work.
This unit must be installed in compliance with local regulations.
The unit must not be installed in any position where it could freeze.

TOOLS REQUIRED

Screwdriver
Adjustable Spanner
Stanley Knife
Drill (with 3mm & 12mm drill bit)
Pencil
5
Copper tube cutter
INSTALLATION
The installation can be broken down into 4 stages
Installation of isolating valve
Installation of tap
Mounting of filter unit
Connection of tubing and commissioning
fIGURE 1
