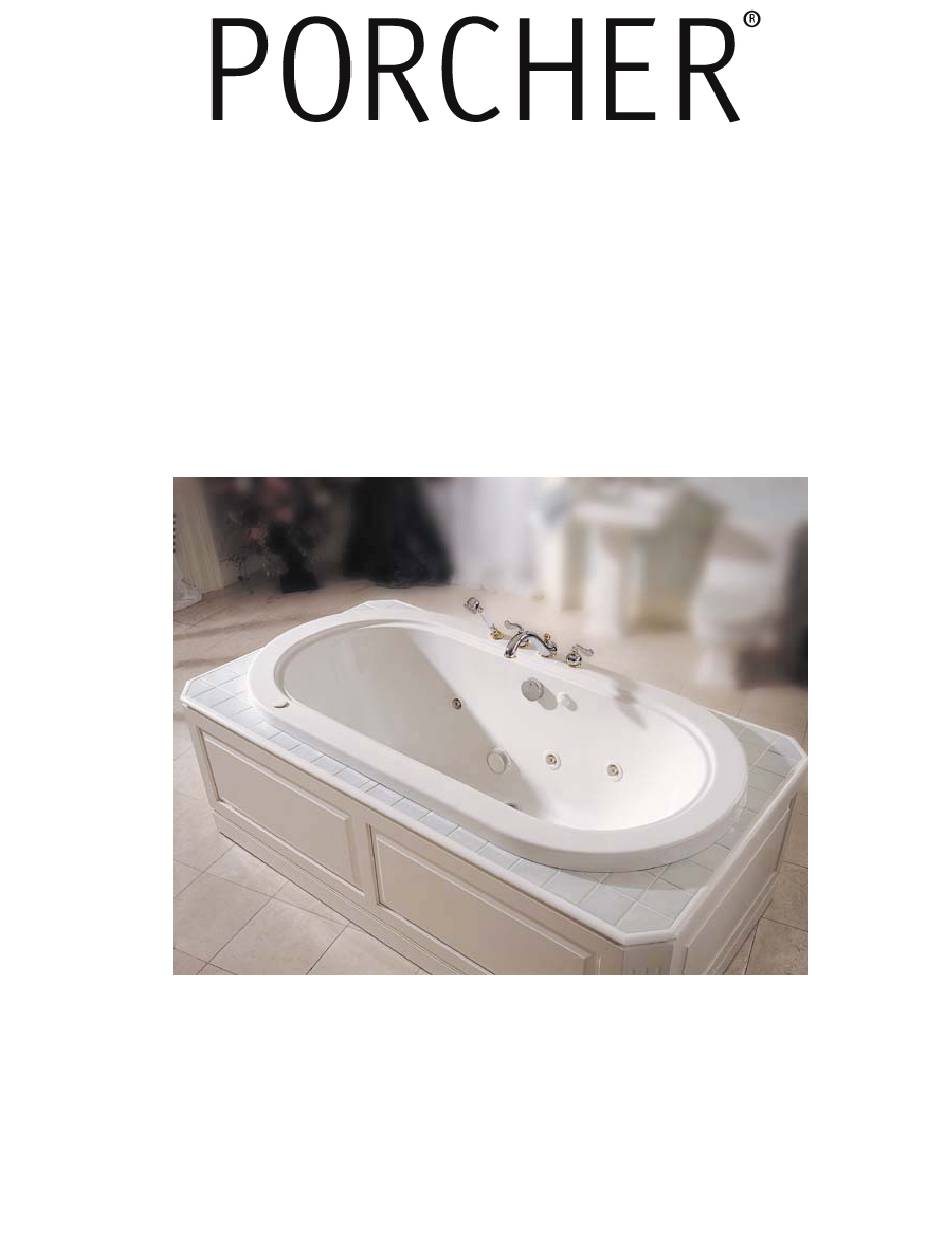

CALLA II SERIES
WHIRLPOOL AND BATH
Operating and Installation Instructions
For Calla II Whirlpool and Bath
INTRODUCTION
Thank you for selecting our Porcher product. To ensure that your installation proceeds smoothly, read
these instructions carefully before you begin. Also, review the recommended tools and materials section.
Carefully unpack and examine your new plumbing fixture.
Porcher, 6615 West Boston Street, Chandler, AZ 85226
1
Advertisement
Related Manuals for Porcher CALLA II Series
Summary of Contents for Porcher CALLA II Series
- Page 1 For Calla II Whirlpool and Bath INTRODUCTION Thank you for selecting our Porcher product. To ensure that your installation proceeds smoothly, read these instructions carefully before you begin. Also, review the recommended tools and materials section. Carefully unpack and examine your new plumbing fixture.
-
Page 2: Important Safety Precautions
Rotate nozzle clockwise for vigorous flow and counterclockwise for soft flow. You may need to balance the air volume control and the water flow for the most desirable condition Porcher, 6615 West Boston Street, Chandler, AZ 85226... -
Page 3: Tools And Materials Required
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing, supply stores. It is essential that the tools and materials be on hand before work is begun. Porcher, 6615 West Boston Street, Chandler, AZ 85226... - Page 4 24 1/2" [62.2] 70" [177.8] 60" [152.4] IN [CM] 39" [99.1] 9 3/4" [24.8] 34 3/4" [88.3] 26" [66.0] 18" [45.7] 35" [88.9] 4 1/4" [10.8] 2" [5.1] C/L Overflow 24 1/2" [62.2] Porcher, 6615 West Boston Street, Chandler, AZ 85226...
- Page 5 For recess type installation locate studs and ensure proper dimensions and that studs are plumb and square. Attach leveling stringers and cutout to studs at the height indicated. See diagram on next page. Porcher, 6615 West Boston Street, Chandler, AZ 85226...
- Page 6 Typical Pier Type Installation 22 1/2" [57.2] Typical Recess Type Installation Porcher, 6615 West Boston Street, Chandler, AZ 85226...
- Page 7 9" [22.9] Floor Cutout For Drain 1 3/4" [4.4] DIA. Holes 8" [20.3] IN [CM] 2 Places For Control Valves 1 1/4" [3.2] DIA. Hole For 1/2" Spout 12" [30.5] 4" [10.2] Porcher, 6615 West Boston Street, Chandler, AZ 85226...
- Page 8 STEP 3. Mount handle adapter and snap on turn handle to bath. For brass handle installation use 5/32” hex key. Adjust pop-up to min. 1/2” opening. See diagram below. Handle Adaptor Turn Handle 1/2" [1.3cm] Porcher, 6615 West Boston Street, Chandler, AZ 85226...
-
Page 9: Care And Maintenance
The wires shall be sized for a minimum circuit ampacity of 15 amps and protected by a 15 amp maximum gfci. CARE AND MAINTENANCE YOUR PORCHER WHIRLPOOL BATH IS DESIGNED TO LAST INDEFINITELY WITH REASONABLE CARE AND MAINTANCE GENERAL CLEANING The high-gloss acrylic surface is resistant to impact and retains its luster with proper care and maintenance. - Page 10 STEP 4. Drain whirlpool completely. FIXTURE LIMITED WARRANTY If inspection of this Porcher plumbing product, within one year after its initial purchase, confirms that it is defective in materials or workmanship, Porcher will repair or, at its option, exchange the product for a similar model.
