Inter-fab BYOS 1 SLIDE SYSTEM Assembly/Installation Instructions

Build your own slide

Advertisement

Quick Links

B Y O S 1
S L I D E S Y S T E M
( B U I L D Y O U R O W N S L I D E )
Assembly & Installation Instructions
WARNING
BYOS-IM Rev. 08/15 (SBK-BYOS INSTAL)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BYOS 1 SLIDE SYSTEM and is the answer not in the manual?

Questions and answers

Summary of Contents for Inter-fab BYOS 1 SLIDE SYSTEM

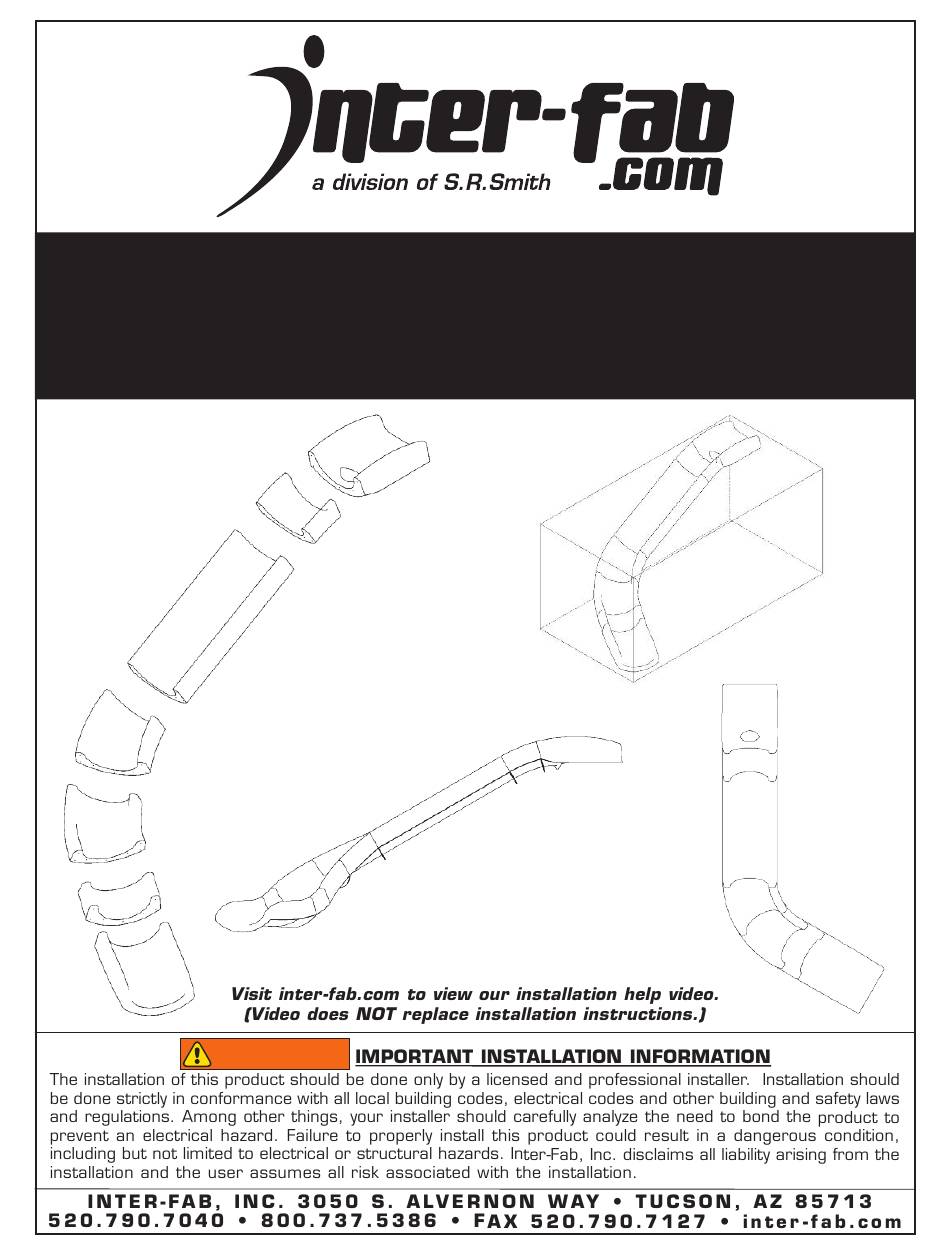

  • Page 1 B Y O S 1 S L I D E S Y S T E M ™ ( B U I L D Y O U R O W N S L I D E ) Assembly & Installation Instructions WARNING BYOS-IM Rev.
  • Page 2 Inter-Fab recommends that you read the BYOS 1 Installation Manual in its entirety before attempting an installation.
  • Page 3: Table Of Contents

    Step 7: Reset Slide in Position..........11 Step 8: Final Slide Position ..........12-14 Step 9: Pour Concrete Piers ..........14 Step 10: Connect Water Supply ..........14 Flume & Anchor Support Hardware.........15 Slide Care & Maintenance............16 Page for Notes..............17 Inter-Fab Limited Warranty.............18 BYOS-IM Rev. 08/15 (SBK-BYOS INSTAL)
  • Page 4: Intended Use Instructions

    I N S T A L L A T I O N I N S T R U C T I O N S B Y O S 1 S L I D E WARNING INTENDED USE INSTRUCTIONS Everyone who uses this slide must know, understand and follow these instructions The ANSI/APSP/ICC-5 2011 standard for above ground pools prohibits the use of slides or diving boards on above ground pools.
  • Page 5: Water Safety Envelope

    I N S T A L L A T I O N I N S T R U C T I O N S B Y O S 1 S L I D E DIAGRAM A WATER SAFETY ENVELOPE: (NOT TO SCALE) A minimum water depth of three feet (3') under the exit of the slide which increases to a depth of four feet six inches (4'6”) at point A which is located four feet six...
  • Page 6: Slide Placement

    I N S T A L L A T I O N I N S T R U C T I O N S B Y O S 1 S L I D E SLIDE PLACEMENT If the slide meets the pool edge at an angle, then the outside curve “Pivot A” has to be at the pool edge.
  • Page 7: Getting Started

    It is important to note however, that Inter-Fab does not approve or accept liability for BYOS designs. All designs should be checked by a licensed Civil or Structural Engineer in your state, and when necessary, inspected/approved by the applicable local governing agency.
  • Page 8: Tools Required

    I N S T A L L A T I O N I N S T R U C T I O N S B Y O S 1 S L I D E LIST OF REQUIRED TOOLS Tools required for assembly and installation of BYOS slide: 3/8"...
  • Page 9: Step 2: Flume Assembly

    I N S T A L L A T I O N I N S T R U C T I O N S B Y O S 1 S L I D E STEP TWO: Flume assembly - CONTINUED TIPS: •...
  • Page 10: Step 3: Entry Section Anchor Assembly

    I N S T A L L A T I O N I N S T R U C T I O N S B Y O S 1 S L I D E STEP THREE: Entry section anchor assembly. The BYOS ESA COMBO Entry Section Anchor consists of 1 upright, 1 right support arm and 1 left support arm.
  • Page 11 I N S T A L L A T I O N I N S T R U C T I O N S B Y O S 1 S L I D E STEP THREE: Entry section anchor assembly - CONTINUED The BYOS ESA COMBO must have a minimum concrete embedment depth as shown in Fig.
  • Page 12: Step 4: Variable 15˚ And 30˚ Anchor Information

    I N S T A L L A T I O N I N S T R U C T I O N S B Y O S 1 S L I D E STEP FOUR: Variable 15˚ and 30˚ nchor information.
  • Page 13: Step 6: Excavate The Holes

    I N S T A L L A T I O N I N S T R U C T I O N S B Y O S 1 S L I D E STEP SIX: Excavate the holes. Pier holes for the flume anchor supports (Straight, 15° and 30°) should be a minimum of 12”...
  • Page 14: Step 8: Final Slide Position

    I N S T A L L A T I O N I N S T R U C T I O N S B Y O S 1 S L I D E STEP EIGHT: Final slide position. It is essential that the slide be in its correct horizontal and vertical position prior to pouring concrete;...
  • Page 15 I N S T A L L A T I O N I N S T R U C T I O N S B Y O S 1 S L I D E STEP EIGHT: Final slide position - CONTINUED When checking for the correct flume angle keep the below in mind: •...
  • Page 16: Step 9: Pour Concrete Piers

    I N S T A L L A T I O N I N S T R U C T I O N S B Y O S 1 S L I D E STEP EIGHT: Final slide position - CONTINUED TIPS FOR SETTING THE SLIDE IN FINAL POSITION - CONTINUED •...
  • Page 17: Flume & Anchor Support Hardware

    I N S T A L L A T I O N I N S T R U C T I O N S B Y O S 1 S L I D E BYOS™ FLUME & ANCHOR SUPPORT HARDWARE Seating Support Seating Support 15˚...
  • Page 18: Slide Care & Maintenance

    I N S T A L L A T I O N I N S T R U C T I O N S B Y O S 1 S L I D E BYOS™ SLIDE CARE & MAINTENANCE: Your BYOS slide requires periodic maintenance to keep it looking like new and protected from the elements.
  • Page 19: Page For Notes

    I N S T A L L A T I O N I N S T R U C T I O N S B Y O S 1 S L I D E NOTES: BYOS-IM Rev. 08/15 (SBK-BYOS INSTAL)
  • Page 20: Inter-Fab Limited Warranty

    I N T E R - F A B L I M I T E D W A R R A N T Y 3050 S. ALVERNON WAY • TUCSON, AZ 85713 520.790.7040 • 800.737.5386 • FAX 520.790.7127 • INTER-FAB.COM BYOS-IM Rev. 08/15 (SBK-BYOS INSTAL)
