KisanKraft

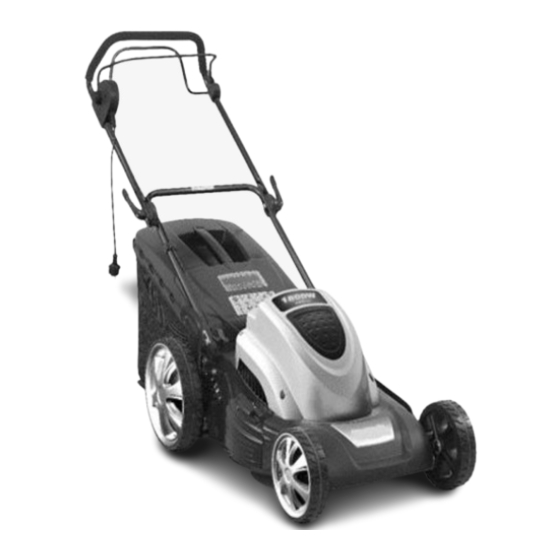

LAWN MOWERS-
Product
ELECTRIC
KisanKraft
Brand
 KK-LME-1000
 KK-LME-1400
Model
 KK-LME-1800
 KK-LME-1900
W
ARRANTY
6
MONTHS
P
ERIOD
Dealer's
Invoice Date
Buyer's Info (
Name, Address, Phone, etc.):
Buyer's Sign
What is covered: KisanKraft Machine Tools Private Limited and its manufacturer's
warrant this product to be free from defects in material or workmanship. All parts
defective in material and workmanship are covered.
This warranty will only cover defects arising under normal usage.
This warranty is limited to repair or replacement by KisanKraft Machine Tools Private
Limited or its manufacturers at the premises of Authorized Dealers, of such parts as
appear to KisanKraft or its manufacturers, upon inspection, to be defective in material
and/or workmanship. KisanKraft or its manufacturers make no warranty with respect to
trade accessories not manufactured or sold by them.
What is not covered: The warranty shall become null and void and neither KisanKraft
Machine Tools Private Limited nor any of its manufacturers, nor its authorized dealers
assumes any responsibility, if the failure was caused by the following:
(1) Operation of product with incorrect fuel or lubricants, (2) Incorrect usage of machine
or misuse, (3) Lack of maintenance, (4) Negligence, (5) Accident or physical damage,
(6) Repairs made by unauthorized parties and/or with unauthorized parts, (7) Improper
set up, adjustments, tampering or altered products.
This warranty is null & void, if you fail to register the warranty with
KisanKraft by sending the KisanKraft Copy with dealer's stamp.
KisanKraft Machine Tools Private Limited
: www.kisankraft.com

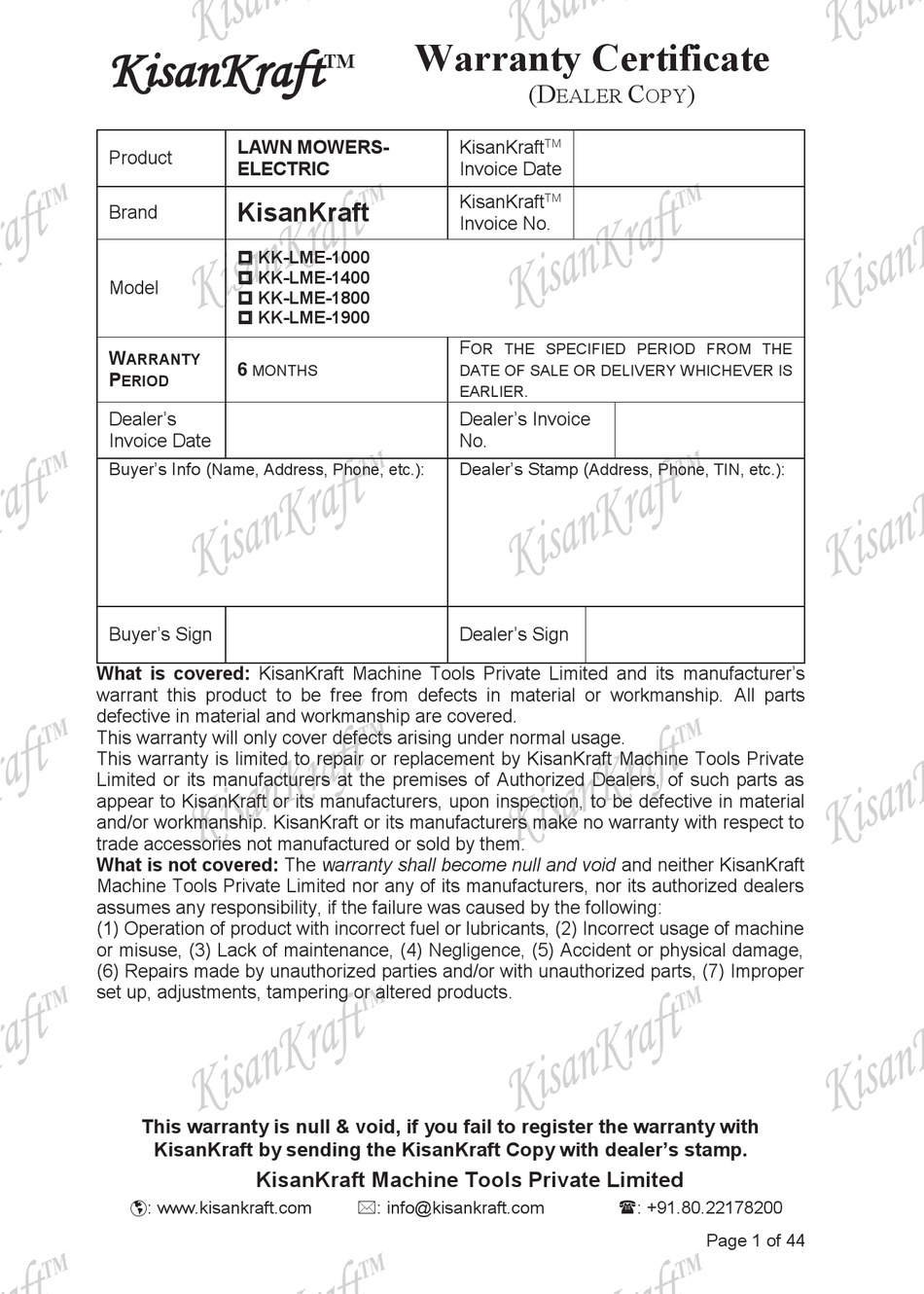

Warranty Certificate
TM
KisanKraft
Invoice Date
KisanKraft
Invoice No.
F
OR THE SPECIFIED PERIOD FROM THE
DATE OF SALE OR DELIVERY WHICHEVER IS
EARLIER
Dealer's Invoice
No.
Dealer's Stamp (
Dealer's Sign
: info@kisankraft.com
(D
C
)
EALER
OPY
TM
TM
.
Address, Phone, TIN, etc.):
: +91.80.22178200
