Unger Control Unit Introduction
The Unger Control Unit provides leading control technology with simple
ease of use. Use the unit to make high quality pure water for excellent
cleaning results time after time with the 'RO FILLING' control.
Use the 'LEFT FLOW' and 'RIGHT FLOW' to give simple but accurate
flow control from two powerful delivery pumps.
Control your pumps remotely using the radio fobs and set to 'wash' for
cleaning or switch to 'rinse' for a boost. Press on/off to efficiently control
your water use.
Contents
P1 Unger Control Unit Introduction + Contents
P2 Unit Overview
P3 Connection Overview
P4 LEFT+RIGHT FLOW Quick Start Part 1
P5 LEFT+RIGHT FLOW Quick Start Part 2
P6 LEFT+RIGHT FLOW Three Button Radio Remote
P7 RO Quick Start Part 1
P8 RO Quick Start Part 2
P9 RO Autofill - Tank Filling
P10 RO TDS
P11 RO Power-Up Menu Settings
P12 General Settings - LEFT+RIGHT FLOW and RO

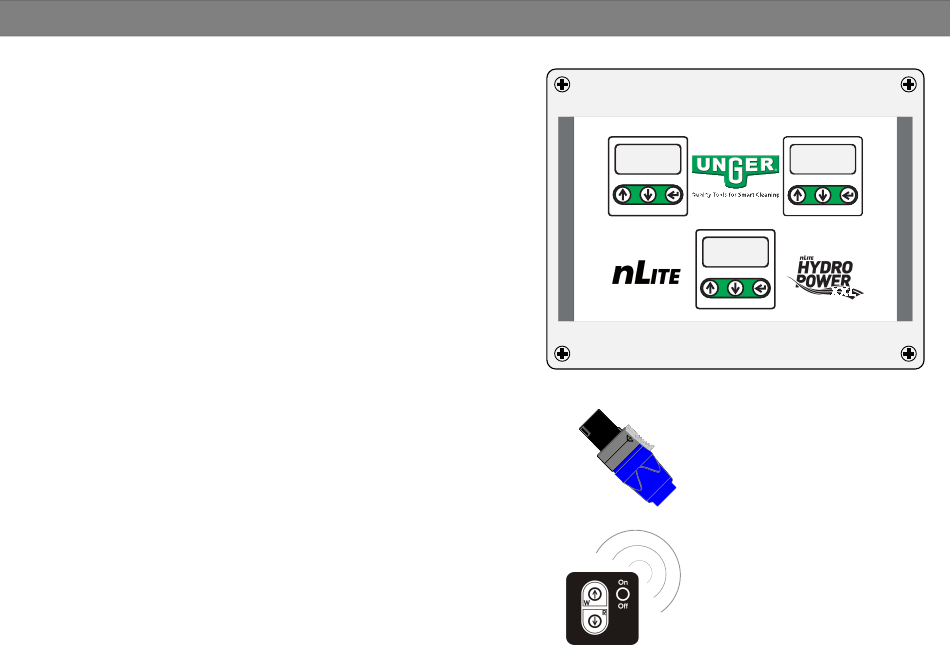

Unger Control Unit Introduction
LEFT FLO W
RO FILLING
Leading Control Technology
with simple plug and go
connections...
...easy to use operation
and labour saving features
Keyfob
v11 Unger
RIGHT FLO W
Advertisement
Summary of Contents for unGer nLite HydroPower XXL
- Page 1 Unger Control Unit Introduction Unger Control Unit Introduction The Unger Control Unit provides leading control technology with simple ease of use. Use the unit to make high quality pure water for excellent cleaning results time after time with the 'RO FILLING' control.
- Page 2 Unger Control Unit Overview Unger Control Unit Overview Panel Viewed The Unger Control Unit provides a number of functions: LEFT FLOW - Controls the LEFT delivery pump functions. This includes a radio remote control. from Front RIGHT FLOW - Controls the RIGHT delivery pump functions. This includes a radio remote control.
- Page 3 Unger Connection Overview Connection Overview RIGHT FLOW The Unger Control Unit is supplied with Pump 2 a set of pre-made cables. These cables Output are tested and ready to use. Follow the Connection RO FILLING diagram below when making connections Pump 3 to the controller.
- Page 4 Left/Right Pump Controller - Quick Start Operating Warnings Adjust your flow settings carefully. Repeated false dead-end Step 1. Wiring detection indicates that the Cal value should be increased (less sensitive). Connect the pump controller following this diagram. NOTE only fit the fuse once all connections are made. For absolute safety always wire through the pump pressure switch.
- Page 5 Left/Right Pump Controller Quick Start Guide Step 3. Use Step 2. Set Up - AutoCal Connect your hose and brush to the pump. Press up or down to set a suitable flow of water. Turn on the controller by pressing the up or down button. Keep the button held until the display lights up.
- Page 6 Operating Warnings Left/Right Radio Remote - Quick Start Fit your Receiver unit carefully. Take care to fit the unit to the Step 1. Wiring and fitting diagram and follow these instructions carefully*. Your radio remote unit is line of sight, so if fitted inside a van or vehicle then the aerial will need to be mounted Step 2.
- Page 7 Unger Operating Warnings RO Pump Controller - Quick Start The RO Filling Controller has a flow setting of '99'. This cannot Step 1. Wiring be adjusted by the up and down arrows. However the flow rate can be adjusted from the Power-Up Menu. Repeated false Connect the pump controller following this diagram.
- Page 8 Unger RO Pump Controller Quick Start Guide Step 3. Use Step 2. Set Up - AutoCal The RO Booster pump (pump 3) should already be The controller powers up showing the battery voltage. connected to the RO. Press enter to display the current water temperature.
- Page 9 Unger Autofill - Tank Filling Set Up - Tank Filling Additional Wiring Wire the solenoid valve and float switch following To start filling the tank simply press and hold the up this diagram. and down buttons together, then release as soon as the display says 'FIL'.
- Page 10 Unger Autoflush - RO Flush Set Up - Autoflush Additional Wiring Wire the Autoflush solenoid valve following To start filling the tank simply press and hold the up and this diagram. down buttons briefly. This will activate the solenoid valve, Flush allowing water to fill the tank, until the float switch...
- Page 11 RO TDS - Quick Start Guide Set Up - RO TDS (Total Dissolved Solids) Additional Wiring The TDS function provides an indication of the water purity. The TDS values displayed are in ppm* (impurities in parts Fit the TDS probes in John Guest 12mm equal tee (not per million).
- Page 12 Unger RO Pump Controller Power-Up Settings Step 1. Power-Up Configuration Step 3. Pressure Switch Disable If enabled the next parameter is Pressure Switch Disable The controller may have some additional settings only available from the Power-Up Menu. (PS) Press and hold up, down and enter then apply power. The...
- Page 13 Unger Pump Controller Settings Step 1. Select Delay Configuration Step 3. Rinse Boost The Left, Right and RO controllers may have some If enabled the third parameter is RINSE Boost (rin). additional settings. Press and hold up and down to enter 'Configuration'. The RO Filing Controller will display 'FIL'.
