Winsome house WHSL454 Instruction, Use & Care Manual

Thank you for purchasing this Winsome House product. This product has been manufactured with the highest standards
of safety and quality.
Product Name:

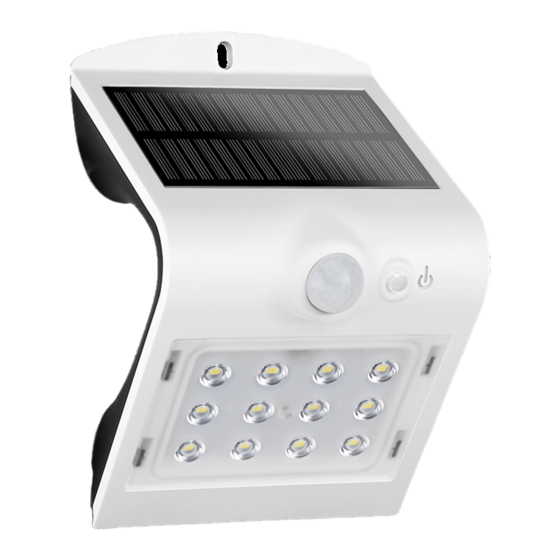

Butterfly-Style Solar Wall or Step Motion Sensor Light
SKU #:
WHSL454
Operating Instructions
BEFORE USING THIS PRODUCT: READ, UNDERSTAND AND FOLLOW THESE INSTRUCTIONS.
How Your Solar Motion Sensor Light Works:
During the day, the solar charge panel included with this Butterfly-Style Solar Wall or Step Motion Sensor Light converts
sunlight into electricity recharging the batteries. Using this stored energy, the LED light turns on automatically at night
when motion is detected.
The light works with a built-in PIR (Passive InfraRed) sensing device which is continuously scanning for heat-source moving
in its detection scope. Once a heat source (such as a human or a car) is detected in that area, the light switches on
immediately and automatically to illuminate your pathways, steps, patios, porches, or anywhere you select for safety,
convenience, and security. The light remains on while the moving heat source stays in the detecting scope.
 Motion-activated light

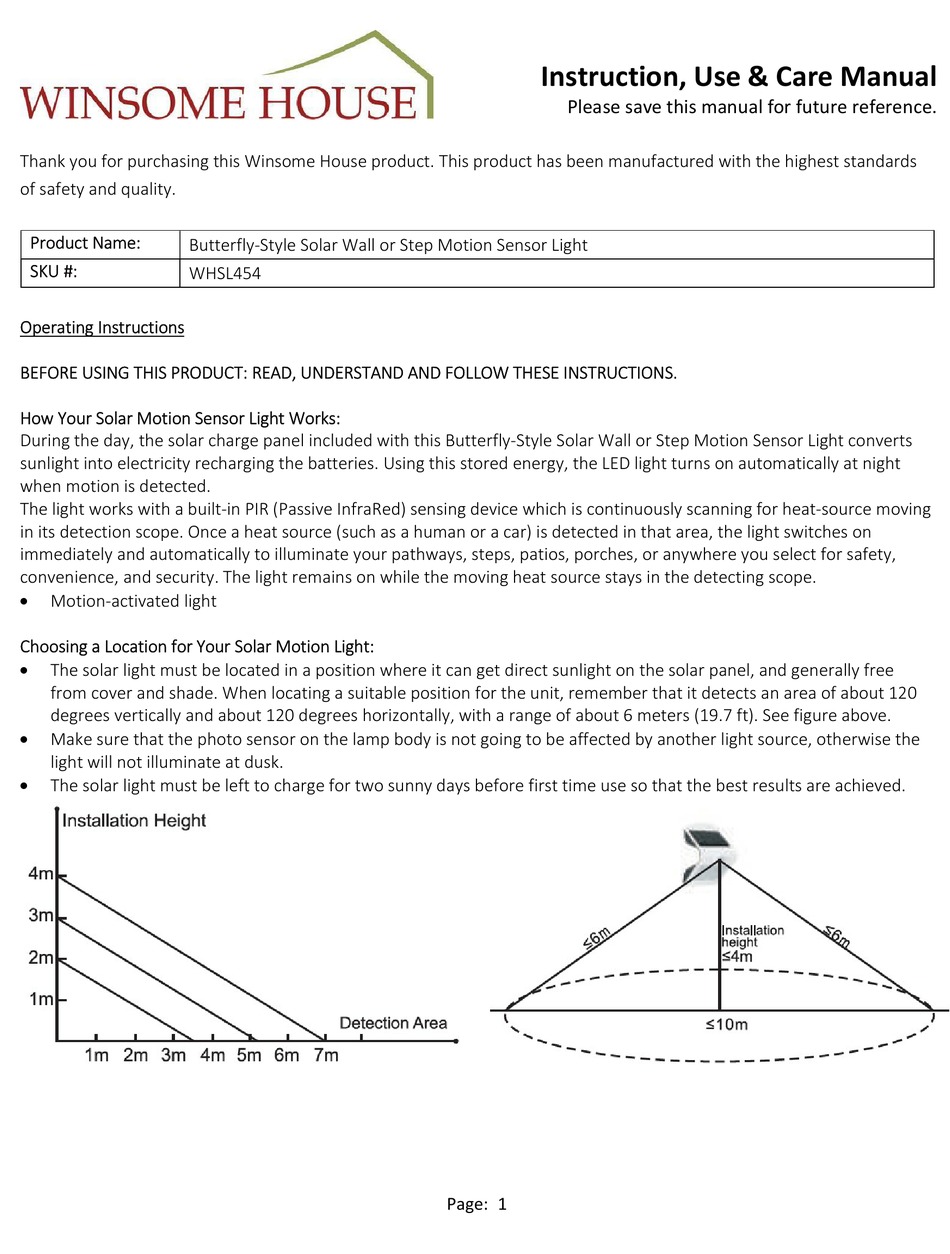

Choosing a Location for Your Solar Motion Light:

The solar light must be located in a position where it can get direct sunlight on the solar panel, and generally free
from cover and shade. When locating a suitable position for the unit, remember that it detects an area of about 120
degrees vertically and about 120 degrees horizontally, with a range of about 6 meters (19.7 ft). See figure above.

Make sure that the photo sensor on the lamp body is not going to be affected by another light source, otherwise the
light will not illuminate at dusk.

The solar light must be left to charge for two sunny days before first time use so that the best results are achieved.
Instruction, Use & Care Manual
Please save this manual for future reference.
Page: 1
