I N S T A L L A T I O N
1
This product must be installed in accordance with the applicable installation code, by a person familiar
with the construction and operation of the product and the hazards involved. Ensure power is off before
installation, verify electrical plan first, read all installation instructions before beginning installation. With the
constant development of our products please check our website (www.modalight.com) for any possible changes
to the installation of this product.
Este producto debe ser instalado de acuerdo con el código de instalación por una persona familiarizada con la construcción y operación del
producto y los riesgos que entraña. Asegúrese que la electricidad este apagada antes de la instalación, verifique plan electrico, lea todas las
instrucciones de instalación antes de comenzar instalación. Con el desarrollo constante de nuestros productos, visite nuestro website (www.
modalight.com) para todos posibles cambios en la instalación de este producto.
Ce produit doit être installé en conformité avec le code d'installation applicable, par une personne familière avec la construction et
l'exploitation du produit et les risques encourus. Assurer que l'alimentation est coupée avant l'installation, vérifiez le plan électrique d'abord,
lire toutes les instructions d'installation avant de commencer installation. Avec le développement constant de nos produits s'il vous plaît
consulter notre site web (www.modalight.com) pour toutes les modifications possibles à l'installation de ce produit.

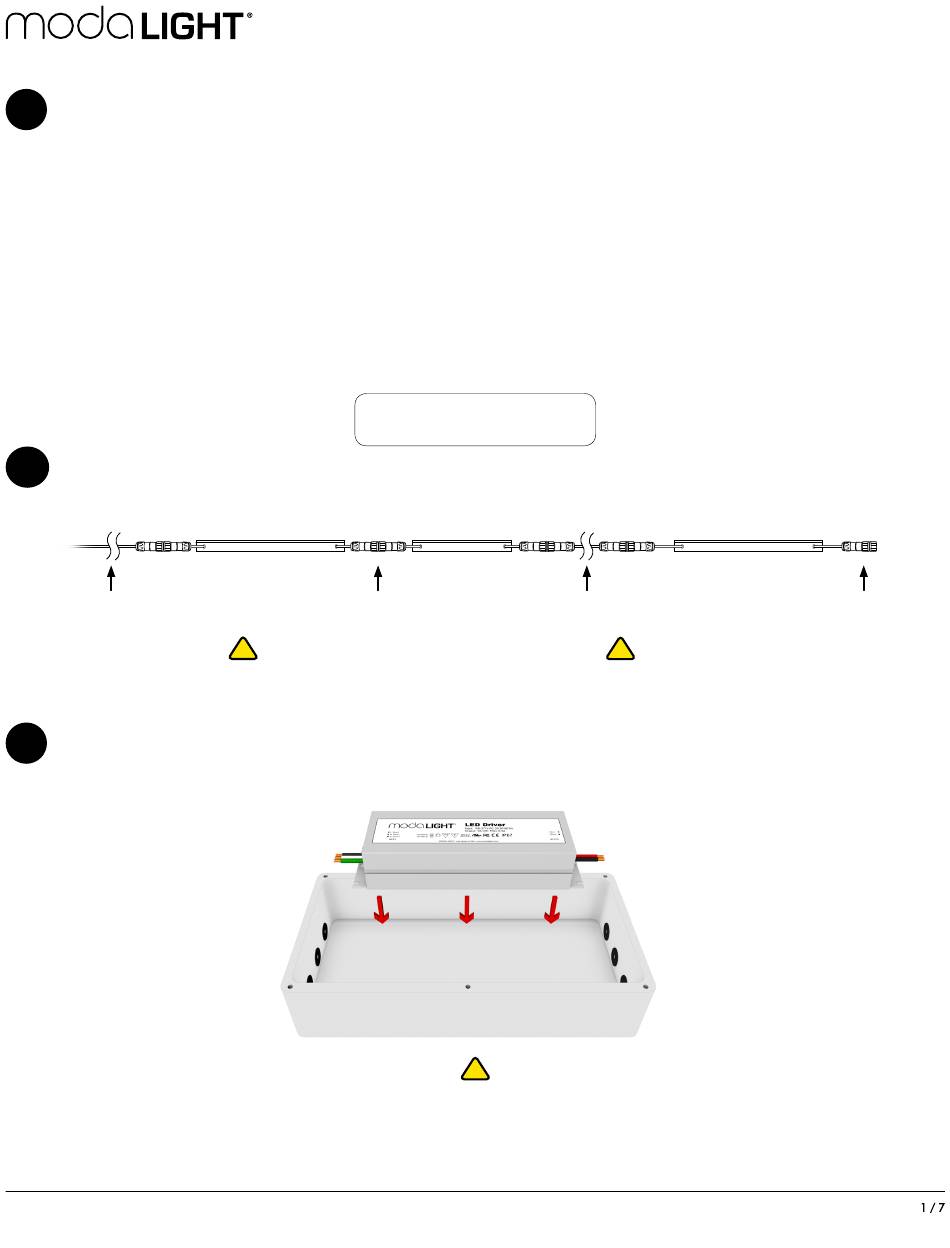

Verify electrical plan and ensure all hardware is present.
2
Verificar plan electrico y verifique que todo el equipo esté presente.
Vérifier le plan électrique et assurer que tout le matériel est présent.
5' / 10' / 20'
Leader Cable
Max Continuous Run: 30ft
Continuidad Máxima: 30ft
Install 24V Driver in a wet location enclosure.
3
Instale 24V Driver en un recinto de ubicación mojada.
Installez le pilote 24V dans un boîtier d'emplacement humide.
Due to continuous improvements and innovations, specifications may change without notice.
Please refer to our website for current technical data. These figures are provided as a guideline
only and may vary with differing power supplies and installations. All rights reserved. E&OE.
Fixture to Fixture Connection
!
Run Continue Max: 30ft
Enclosure must be 1.5 times the volume of the Driver to allow for proper air circulation.
El recinto debe ser 1.5 veces el volumen del Driver para permitir una circulación de aire adecuada.
L'enceinte doit être 1,5 fois plus volumineuse Driver pour permettre une bonne circulation de l'air.
WET LOCATION INSTALL
INSTALACIÓN DE LUGARES HÚMEDOS
EMPLACEMENT HUMIDE INSTALLER
Jumper Cable
30ft Length Product Has No Output; Does Not Connect Continuously!
El producto de la longitud 30ft no tiene salida; ¡No se conecta continuamente!
30ft Longueur du produit n'a pas de sortie; Ne se connecte pas en continu!
!
S U P E R N E O N X
!
955 White Drive Las Vegas, NV 89119 | T: 702 407 7775
F: 702 407 7773 | www.modalight.com | © 2018
F L AT C O LO R
®
Terminator
VDC20182706
1 / 7
Advertisement
Table of Contents
Summary of Contents for Moda Light SUPER NEON X
- Page 1 S U P E R N E O N X F L AT C O LO R ® I N S T A L L A T I O N This product must be installed in accordance with the applicable installation code, by a person familiar with the construction and operation of the product and the hazards involved.
- Page 2 I N S T A L L A T I O N Non-Dimming Wiring Cablería sin atenuación Câblage sans gradation 100-277V AC DRIVER INPUT DRIVER OUTPUT SUPER NEON X FLAT COLOR UL / cUL INPUT (100-277V AC) OUTPUT (24V DC) Positive Positive Negative...
- Page 3 No torcer, colgar o suspender. No pas tordre, accrocher ou suspendre. Drill 7/8” (20mm) holes to pass barrel connectors through. Tension Clips Super Neon X Flat Color Side Feed Super Neon X Flat Color SNX-XTR Available in Bottom Feed 1’ and 4’ lengths SNX-CLP-S2...
- Page 4 S U P E R N E O N X F L AT C O LO R ® I N S T A L L A T I O N Connect leader cable Conectar el cable líder Connectez chef de fil Push and twist all sections of the Barrel Connectors.
- Page 5 S U P E R N E O N X F L AT C O LO R ® I N S T A L L A T I O N Available connections Conexiones disponibles Connexions disponibles Fixture to Fixture Connection Jumper Cable Connection 30FT LENGTH PRODUCT HAS NO OUTPUT;...
- Page 6 S U P E R N E O N X F L AT C O LO R ® I N S T A L L A T I O N Accessories Accesorios Accessoires PRODUCT DESCRIPTION SIZE ITEM NO. Connector Dim: 5FT Leader cable L: 1 3/16”...
- Page 7 S U P E R N E O N X F L AT C O LO R ® I N S T A L L A T I O N Do not attempt to install or use the product Please make sure all connections are completely until installation is fully read and understood! pushed in before powering on to avoid electrical arching!
