Summary of Contents for AlphaVision 004318
-
Page 1: Installation Manual

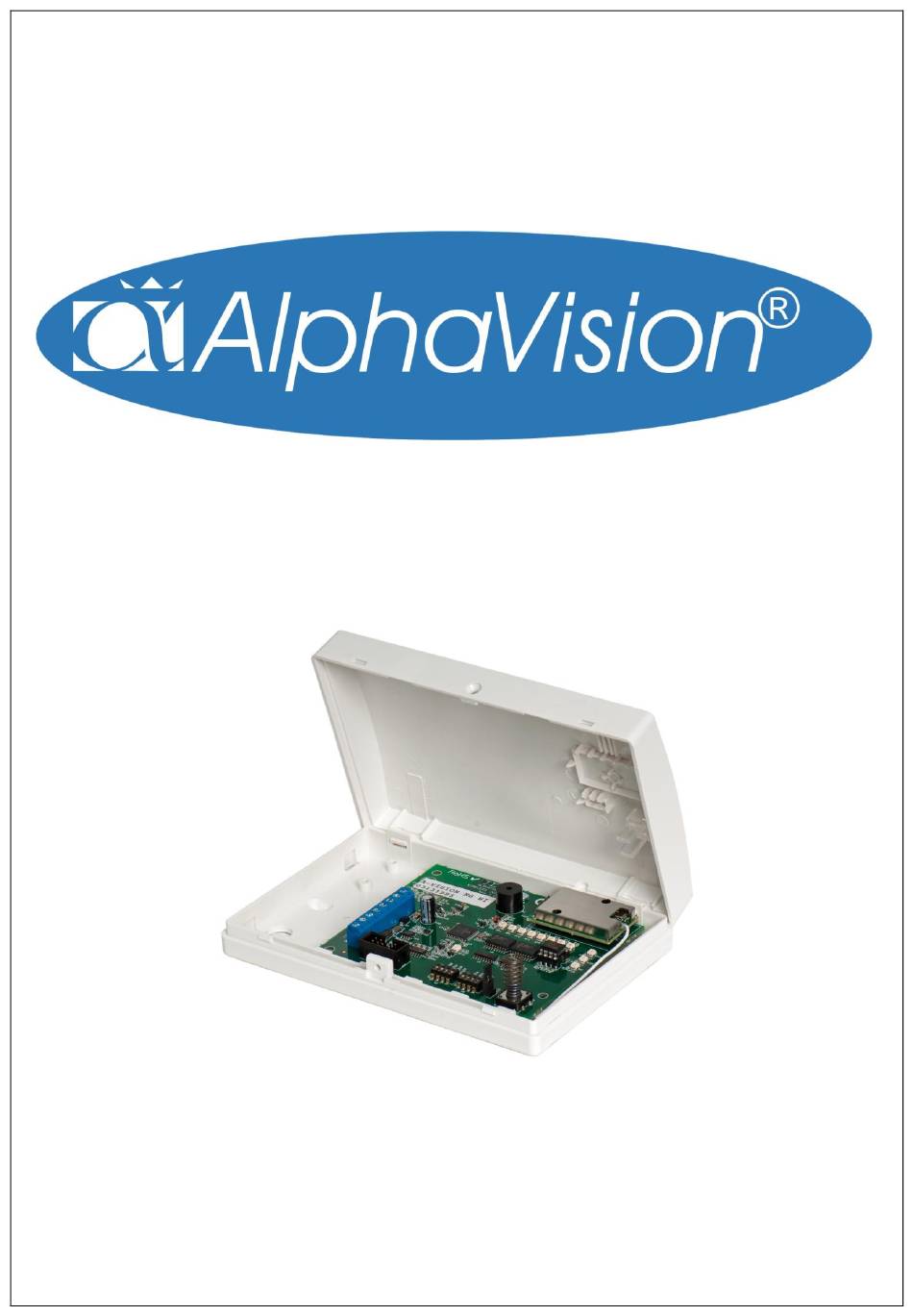

Wireless Interface V3.2 Installation Manual Alphatronics bv * Watergoorweg 71* 3861MA Nijkerk * Tel.: 033-2459944 * Fax.: 033-2453149 * info@alphatronics.nl... -
Page 2: Specifications
The Wireless Interface is compatible with Visonic PowerCode detectors and PowerCode panic transmitters. Next to PowerCode products it is also possible to use Code Secure (Rolling Code) keyfobs to arm or disarm the Alphavision system with a wireless keyfob transmitter. We recommend the MCT-234 keyfob (art. nr. 007092) to arm or disarm the security system. - Page 3 Inputs programming screen by ticking the option ‘Keyswitch bi-stable instead of pulse’. For the AlphaVision ML the zone that is associated to the keyswitch must be set to ‘Keyswitch fixed’. For the AlphaVision NG the programming option “Keyswitch PULS” in screen 8 must be set to N.
- Page 4 S2 back to the address settings of the RS-485. When the wireless interface is used with a AlphaVision 96 of NG, restart the panel. When using the wireless interface with an AV-XL panel use the restart and scan function in the web-browser The RS-485 bus communication with the control panel will be restored.
- Page 5 When you are finished programming, first put switch 4 of dipswitch S3 to OFF. Then put the switches of dipswitch S2 back to the address settings of the RS-485 bus. When the wireless interface is used with a AlphaVision 96 of NG, restart the panel.
- Page 6 If you want to switch off the supervision function, set switch 3 on dipswitch S3 to OFF. b) If the Wireless Interface is connected to a AlphaVision XL, NG or EC (Alpha Easy) system set switch 1 of dipswitch S3 to ON. If the Wireless Interface is connected to a AlphaVision 96 / CP-508LCD set switch 1 of dipswitch S3 to OFF.
- Page 7 LED will illuminate continuously. During the direct learning procedure (Switch 4 on dipswitch S3 = ON) the LED will not illuminate at all. LED (COM): Flashes during RS-485 communication with the AlphaVision LED (RF): Flashes when it receives a PowerCode signal...
- Page 8 IMPORTANT! If the Wireless Interface is used in combination with the AlphaVision 96 control panel messages as low battery, supervision and sabotage will all be shown as a sabotage message in the AlphaVision 96 / CP_508LCD control panel. Status information per zone is only displayed by the AlphaVision XL, ML, NG or EC...
