1. Build wireless connection

Here we set the example with Windows 7 to demonstrade

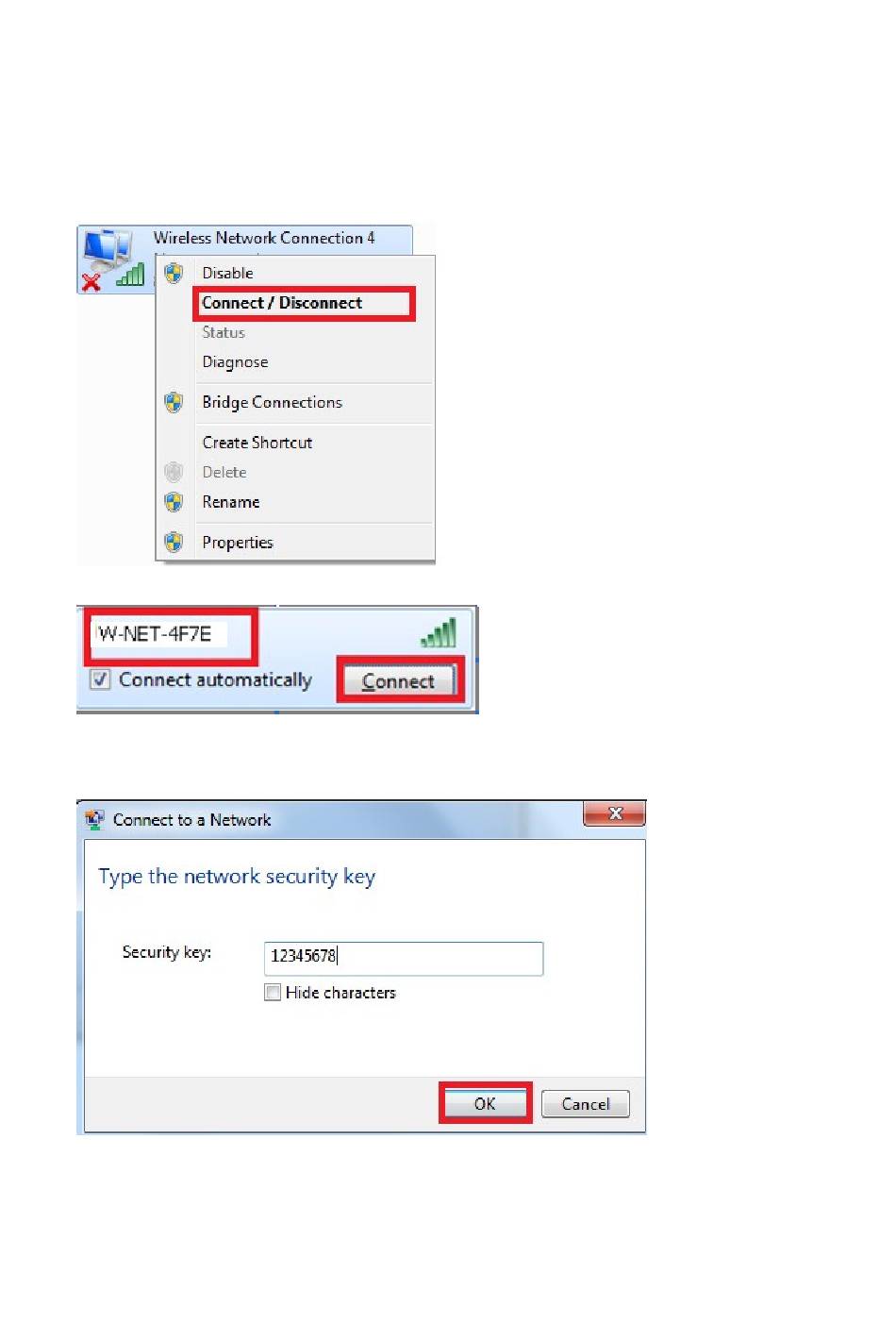

1.Click "Start-----Control Panel----Network and Internet----Network and Sharing
Center----Change adapter settings----Wireless Network Connection" ，Right-Click
"Wireless Network Connection" ，Choose"Connect/Disconnect" 。
2. Choosing the wifi SSID of U25 in the wifi SSID list ,click "connect"
3. Type the network security key,click"OK"
Please noted that the default SSID and security key will be printed on the label on
the product
4. After getting through the passward, it will be showed "connected" ,which means
you are being successfully connected.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OWLR325W and is the answer not in the manual?

Questions and answers

Summary of Contents for Omega Technology OWLR325W

  • Page 1 1. Build wireless connection Here we set the example with Windows 7 to demonstrade 1.Click “Start-----Control Panel----Network and Internet----Network and Sharing Center----Change adapter settings----Wireless Network Connection” ，Right-Click “Wireless Network Connection” ，Choose“Connect/Disconnect” 。 2. Choosing the wifi SSID of U25 in the wifi SSID list ,click “connect” 3.

  • Page 2: Quick Installation

    3. Quick Installation 1. Open the browse ,type into http://192.168.10.1, press the Enter key. 2. click the operating mode you need, the default operating mode is Repeater 3 .Setting the wireless parameters according to the mode you chosse. 3.1 Access Point mode Setting the SSID and password , so that other hotspot can connect.
  • Page 3 3.2 Router Mode 3.2.1 Click “ R outer ” o ption 3.1.2 Setting the SSID and Password 3.1.3 Choose the type of internet connection, click “Save/Apply”...
  • Page 4 3.3 Repeater and Repeater WISP Mode 3.3.1 Choose “ R epeater or Repeater WISP ” mode 3.3.2 Setting the SSID and Password “ ” 3.3.3 Click S ite Survey t o scan the wireless SSID...
  • Page 5 3.3.4 choose the SSID you want to connect , input the password ,click “Save/Apply” 3.4 Client and Client WISP 3.4.1 Click “ C lient or Client WISP ” o ption...
  • Page 6 3.4.2 Click “ S ite Survey ” t o scan the wireless SSID ， “ ” 3.4.4 Setting the SSID and input the password c lick S ave/Apply...
  • Page 7 4.FAQ, 1. how to reset to defaults Keep pressing the Reset button near to the wan port and gurantee the device is in power ,releasing it after 5~10 seconds. 2. Laptop can not search out the wifi signal? 1） If your laptop is with built-in wireless adapter,please confirm that the wireless adapter is working or not.
  • Page 8 configuration ”and click “open”. If the open type shows it is forbidden,please right-click and choose the attribute, change the open type to automatic,then change the state to open. 3） Confirm the wilress function of AP is opening. 4） Check the driver of the wireless adapter in the device manager is successfully installed or not.
