ISC SBV 3200 Operating Instructions Manual

Petrol leaf vacuum
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SBV 3200
Petrol Leaf Vacuum
Artikel-Nr.: 3436001
Ident-Nr.:
01026

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBV 3200 and is the answer not in the manual?

Questions and answers

Summary of Contents for ISC SBV 3200

  • Page 1 SBV 3200 Artikel-Nr.: 3436001 Petrol Leaf Vacuum Ident-Nr.: 01026...

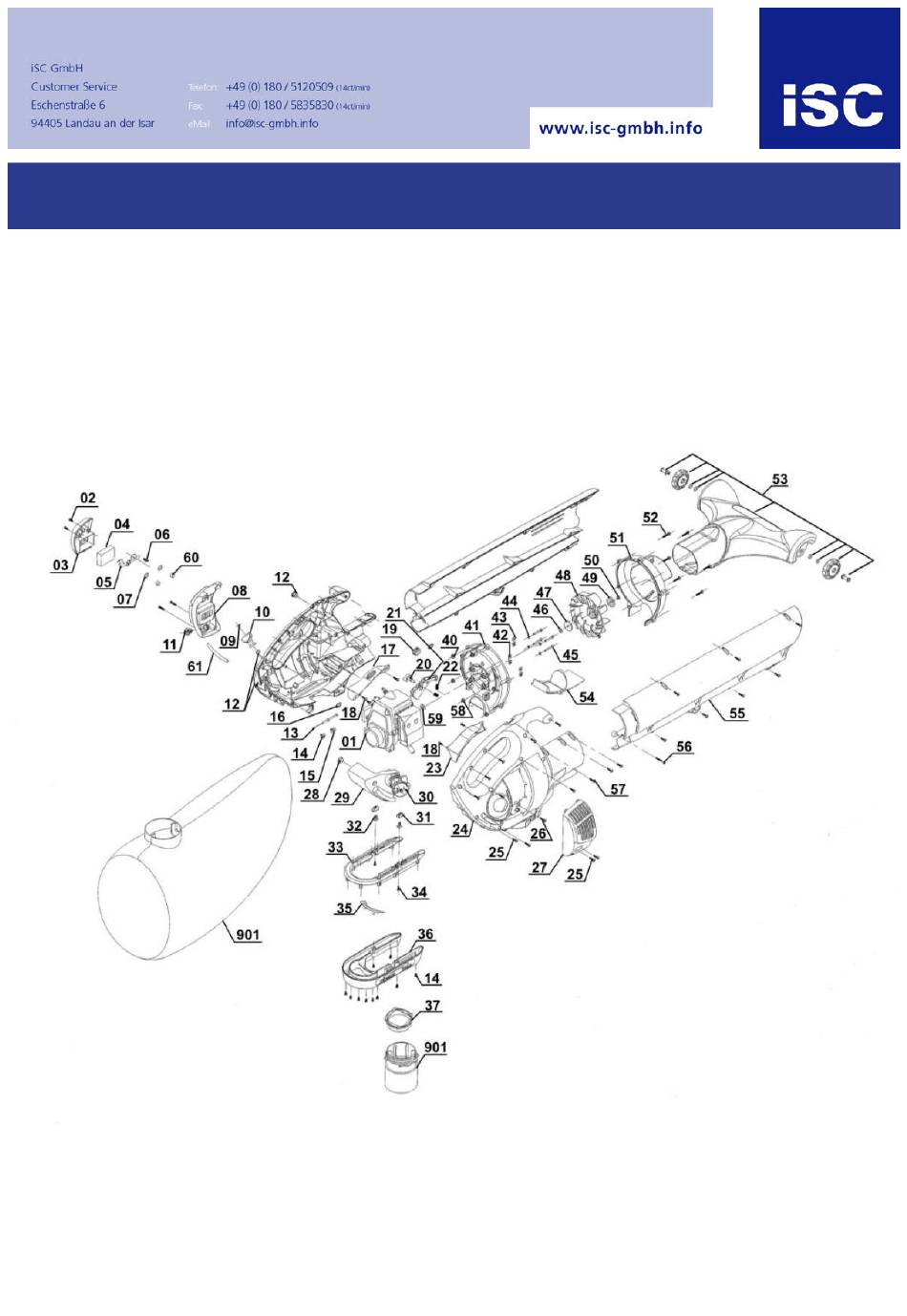

  • Page 2 Komponenten / Ersatzteile Position Artikel-Nr. Beschreibung 343600002004 FILTER, AIR 343600002022 SWITCH 343600002033 FUEL CAP 343600002037 SCREW 343600002038 MID COVER 343600002041 TUBE 343600002042 BLOWER BAG 343600002051 IMPELLER 343600002056 TUBE ASSY 343600002057 FLOW GUIDE 343600002065 tether 343600002066 spark plug...
  • Page 3 Anleitung SBV 3200 26.07.2006 10:42 Uhr Seite 1 Operating Instructions Garden Blower Vac 3200 34.360.01 Art.-No.: 519920 I.-Nr.: 01026...
  • Page 4 Anleitung SBV 3200 26.07.2006 10:42 Uhr Seite 2 Read the operating instructions before you Fuel pump use the blower vac. Wear safety goggles to protect your eyes. Wear ear Never work if people – especially children - protectors to protect your hearing against the noise.
  • Page 5 Anleitung SBV 3200 26.07.2006 10:42 Uhr Seite 3...
  • Page 6 Anleitung SBV 3200 26.07.2006 10:43 Uhr Seite 4...
  • Page 7 Anleitung SBV 3200 26.07.2006 10:43 Uhr Seite 5 .025 in. (0,6 mm)
  • Page 8 Anleitung SBV 3200 26.07.2006 10:43 Uhr Seite 6 GENERAL SAFETY RULES that the air current can work near to the ground. WHAT NOT TO DO 15. Watch out for children, pets, open windows etc. READ YOUR USER MANUAL AND ALL and blow the dirt safely away from them.

  • Page 9: Harness Installation

    Anleitung SBV 3200 26.07.2006 10:43 Uhr Seite 7 Layout (Fig. 1) HARNESS INSTALLATION Attach the 2 harness clips to the 2 links in the blower handle. (Fig. 2) 1. Rear Handle 2. Throttle Trigger VACUUM ATTACHMENT ASSEMBLY 3. Throttle Lock INSTRUCTIONS 4.
  • Page 10 Anleitung SBV 3200 26.07.2006 10:43 Uhr Seite 8 RECOMMENDED FUELS to idle speed. Then DEPRESS and HOLD the “OFF” Some conventional gasolines are being blended switch until the engine stops completely. with oxygenates such as alcohol or an ether compound to meet clean air standards. Your...
  • Page 11 Anleitung SBV 3200 26.07.2006 10:43 Uhr Seite 9 Do not vacuum hot or burning materials (e.g. hot ash, AIR FILTER glowing cigarettes) from outdoor fireplaces or barbecue pits. always wait for these materials to be CAUTION: NEVER operate blower without the air cool enough.

  • Page 12: Removing A Unit From Storage

    Anleitung SBV 3200 26.07.2006 10:43 Uhr Seite 10 3. Drain fuel from the fuel tank. 4. After fuel is drained, start engine. 5. Run engine at idle until unit stops. This will purge the carburetor of fuel. 6. Allow engine to cool (approx. 5 minutes).

  • Page 13: Trouble Shooting The Engine

    Anleitung SBV 3200 26.07.2006 10:43 Uhr Seite 11 TROUBLE SHOOTING THE ENGINE PROBLEM PROBABLE CAUSE CORRECTIVE ACTION Unit won’t start or starts but will not run. Incorrect starting procedures. Follow instructions in the User Manual. Incorrect carburetor mixture adjustment Have carburetor adjusted by an Authorized setting.
  • Page 14 Atbilstības sertifikāts apliecina zemāk minēto preču mas∂n∂ sunar. atbilstību ES direktīvām un standartiem ‰ËÏÒÓÂÈ ÙËÓ ·ÎfiÏÔ˘ıË Û˘Ìʈӛ· Û‡Ìʈӷ Ì ÙËÓ √‰ËÁ›· ∂∂ Î·È Ù· ÚfiÙ˘Ô ÁÈ· ÙÔ ÚÔ˚fiÓ Garden blower vac SBV 3200 98/37/EG 87/404/EWG R&TTED 1999/5/EG 73/23/EWG_93/68/EEC L WM = 107 dB; L WA = 108 dB...

  • Page 15: Warranty Certificate

    Sie Ihren Ansprechpartner des regional zuständigen Kun- stimmungsgemäße Benutzung unseres Gerätes. dendienstes oder die unten aufgeführte Serviceadresse. ISC GmbH · International Service Center Sovereign Customer Helpline 0044 (0) 151 649 1500 Eschenstraße 6 · D-94405 Landau/Isar (Germany) Info-Tel. 0180-5 120 509 • Telefax 0180-5 835 830 Service- und Infoserver: http://www.isc-gmbh.info...
  • Page 16 Anleitung SBV 3200 26.07.2006 10:43 Uhr Seite 14 The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH.
  • Page 17 Anleitung SBV 3200 26.07.2006 10:43 Uhr Seite 15 Technical changes subject to change...
  • Page 18 Anleitung SBV 3200 26.07.2006 10:43 Uhr Seite 16 EH 07/2006...
