- Page 1 RMD802 Kit RMD802BH Kit WIRELESS MICROPHONE EN OWNER’S MANUAL...
-
Page 2: Introduction
- LED indicator used on receiver and display the frequency code and the status of RF/AF. - Transmitter battery: 2*1.5V AA 5. It is easy to install and remove them. For further information about your RMD802, please check our website www.montarbo.com Owner’s manual | RMD802 - RMD802BH... -
Page 3: Table Of Contents

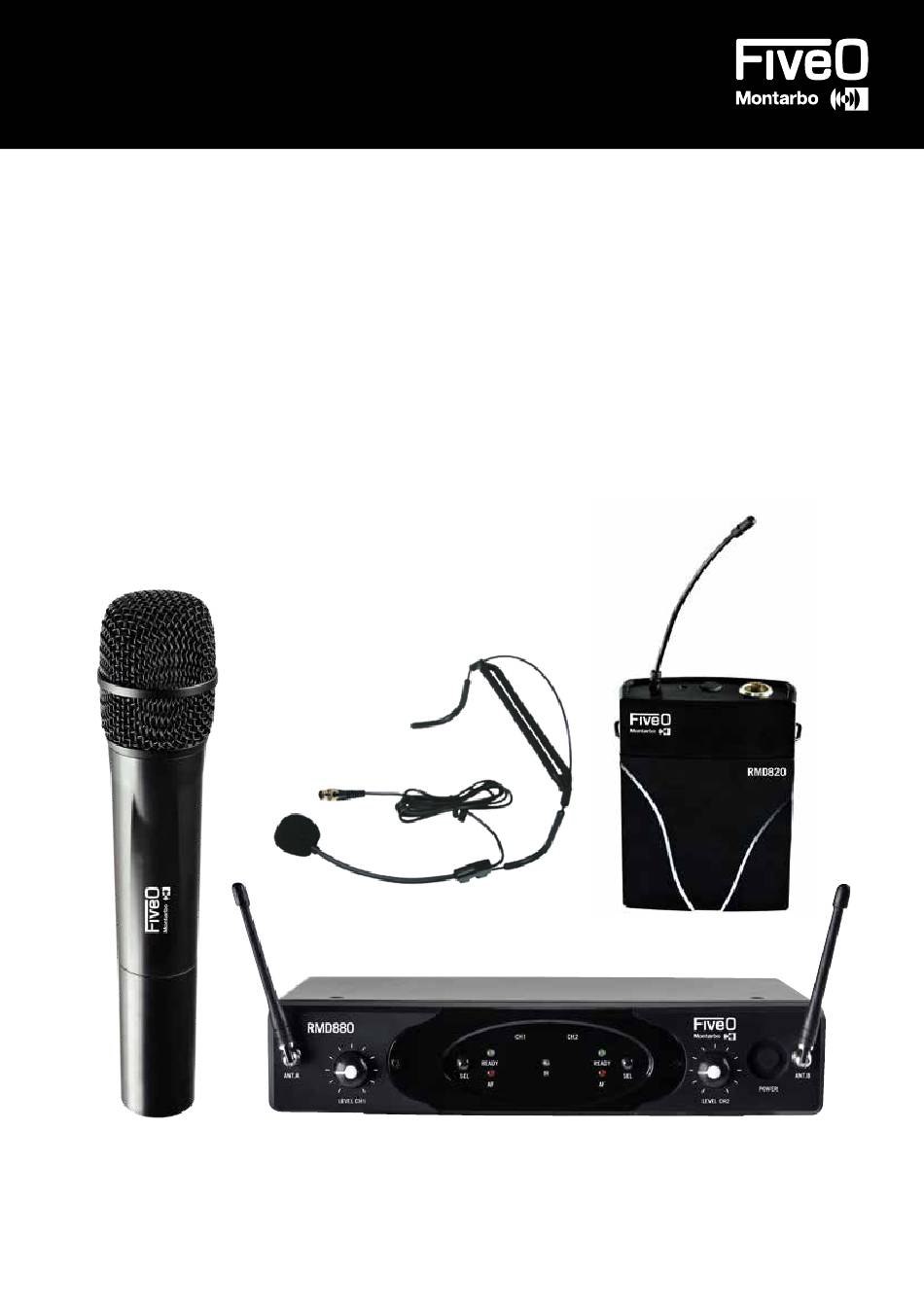

Important Safety Instructions Description Receiver Handheld Transmitters Bodypack Transmitter Operating Instruction Technical Specifications PACKAGE CONTENTS RMD802 Kit - Cod. 5O05044 Receiver RMD880 2 Handheld Trasmitters RMD810 Owner’s manual Warranty certificate PACKAGE CONTENTS RMD802BH Kit - Cod. 5O05045 Receiver RMD880 2 Bodypack Trasmitters RMD820 2 Headset Microphones RMD830 Owner’s manual... -
Page 4: Safety Related Symbols
(including amplifiers) that produce heat. Do not block any ventilation openings. No naked flame sources, such as lighted candles, should be placed on the apparatus. Owner’s manual | RMD802 - RMD802BH... -
Page 5: Important Safety Instructions
The mains plug is used as the disconnect device, the discon- nect device shall remain readily operable. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RMD802 - RMD802BH | Owner’s manual... -
Page 6: Description
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, FREQ: 806-810 MHz (2) This device must accept any interference received, DC 15 V including interference that may cause undesire 300 mA operation. Owner’s manual | RMD802 - RMD802BH... -
Page 7: Receiver
CH2 operation button. LEVEL CH2 CH2 volume adjustment knob. Infrade (IR) indicator. POWER Power button/Lock. ANT.A / ANT.B Antenna port. ADAPTER JACK CH B OUT BALANCED CH A OUT BALANCED AF OUT UNBALANCED Mix audio output RMD802 - RMD802BH | Owner’s manual... -
Page 8: Handheld Transmitters
Press and hold to turn the unit on or off. Press and release to mute or unmute the transmitter. IR Receiving Section This window is used to capture the infrared signal sent from the receiver during the IR UP/DOWN to channelize the transmitter. Owner’s manual | RMD802 - RMD802BH... -
Page 9: Bodypack Transmitter
GAIN control to where you can see the RF display of receiver screen become to full light, then turn down until the RF display not full light (less than five). Driver Designed for use in adjusting the MIC input GAIN control. RMD802 - RMD802BH | Owner’s manual... -
Page 10: Operating Instruction
With the transmitter powered off, install two fresh AA batteries into the transmitter. Leave the battery compartment open. Turn on the power to the transmitter by pressing and holding Power swith, the indicator LED will light green. Owner’s manual | RMD802 - RMD802BH... - Page 11 If you find the system has noticeable dropouts, reduced overall working range, or unexpected noise bursts, change the operating channel of the system using the steps above. CH1C READY READY ANT.A ANT.B POWER LEVEL CH1 LEVEL CH2 RMD802 - RMD802BH | Owner’s manual...
-
Page 12: Technical Specifications
65 x 85 x 25 mm 240* Ø 50 mm Weight 0.082 kg 0.27 kg (Approx.) Dynamic > 100 dB > 100 dB Mic/Instrument Input 10 dBu 10 dBu Microphone Capsule Condenser Dynamic Capsule Dynamic Capsule Owner’s manual | RMD802 - RMD802BH... - Page 13 NOTES RMD802 - RMD802BH | Owner’s manual...
- Page 14 EN The information contained in this manual have been carefully drawn up and checked. However no responsibility will be assumed for any incorrectness. This manual cannot cover all the possible contingencies which may arise during the product installation and use. Should further information be desired, please contact us or our local distributor.
