Programmable multi-axis servo drive power supply unit (psu)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

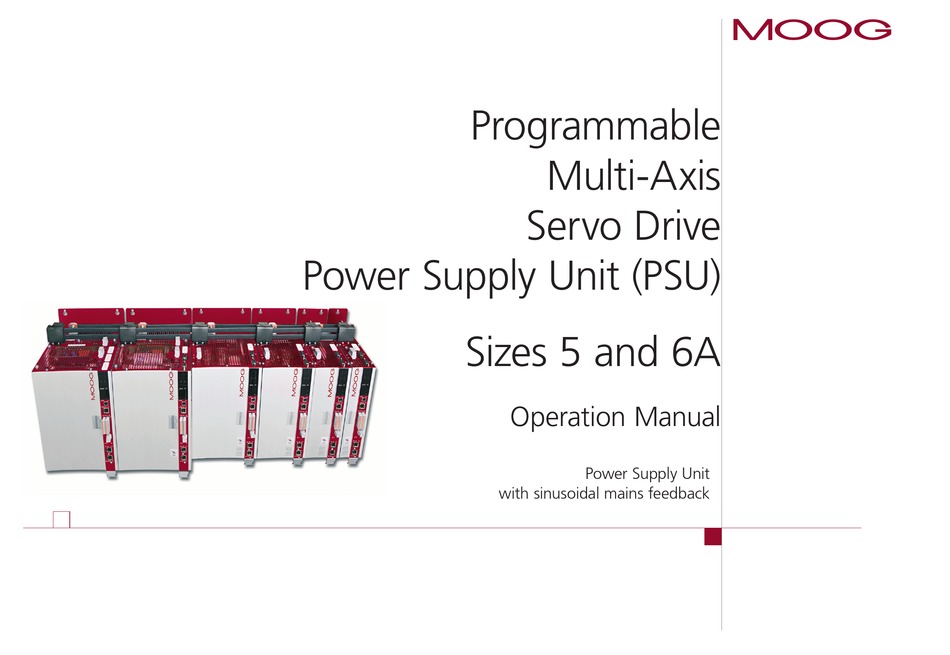

moog
Programmable
Multi-Axis
Servo Drive
Power Supply Unit (PSU)
Sizes 5 and 6A
Operation Manual
Power Supply Unit
with sinusoidal mains feedback
