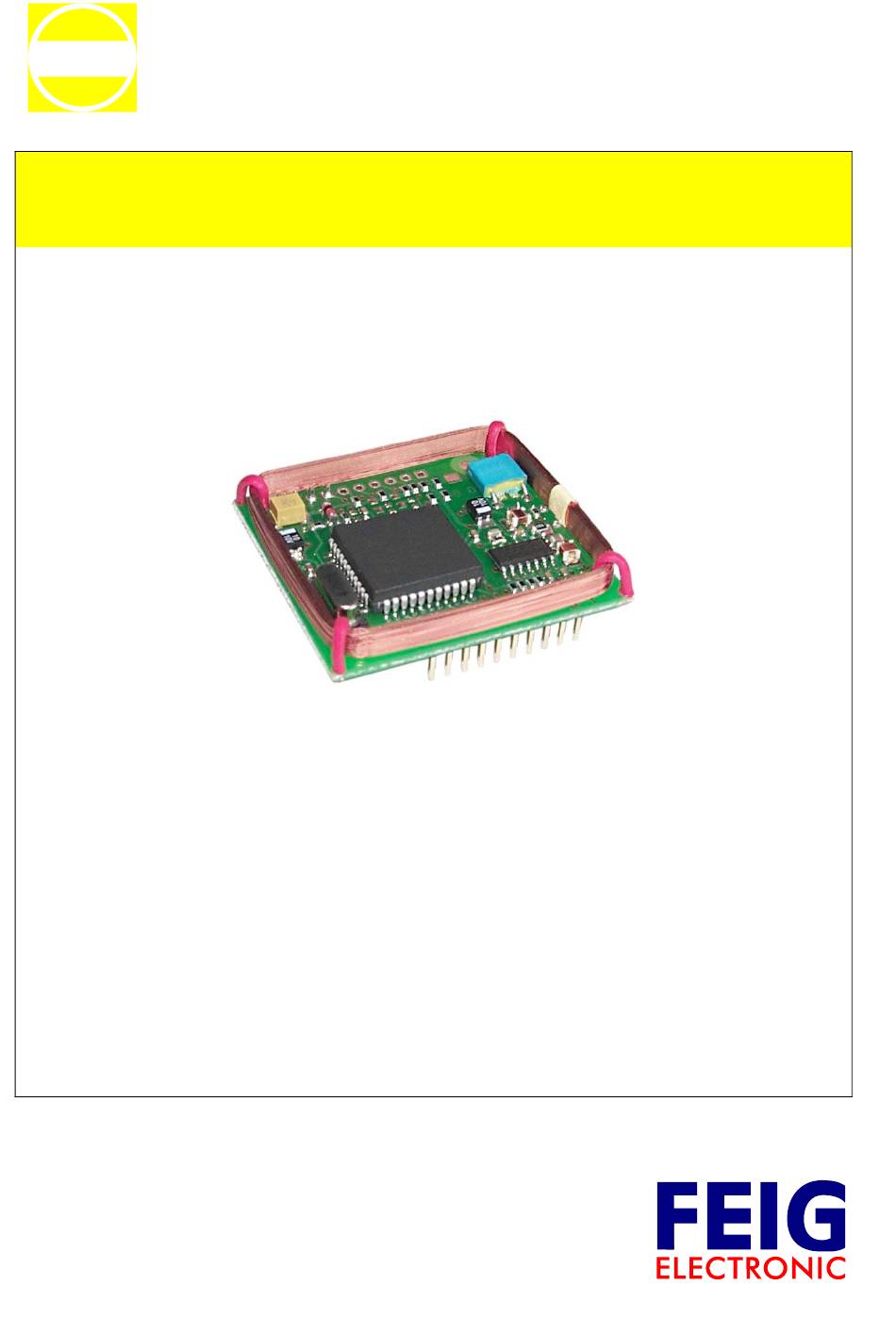

MANUAL
OBID
ID RW01L.AB-A
Firmware version AB100 and higher
final
public (B)
2006-01-12
H20801-1e-ID-B.doc
DATEINAMEFORMATVERBINDEN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ID RW01L.AB-A and is the answer not in the manual?

Questions and answers

Summary of Contents for OBID ID RW01L.AB-A

  • Page 1 ® MANUAL OBID ID RW01L.AB-A Firmware version AB100 and higher final public (B) 2006-01-12 H20801-1e-ID-B.doc DATEINAMEFORMATVERBINDEN...
  • Page 2 ® OBID Manual ID RW01L.AB-A Note © Copyright 2003 - 2006 by FEIG ELECTRONIC GmbH Lange Strasse 4 D-35781 Weilburg-Waldhausen Tel.: +49 6471 3109-0 http://www.feig.de Edition: MD/06/01/12 - h20801-1e-id-b.doc With the edition of this manual, all previous editions become void. Indications made in this manual may be changed without previous notice.
  • Page 3: Table Of Contents

    ® OBID Manual ID RW01L.AB-A Contents: 1. Introduction ® 1.1. Principles of operation of the OBID -System..............5 ® 1.2. The OBID ID RW01L.AB-A ....................5 1.3. Technical data ........................6 1.4. Dimensions..........................7 1.5. Pin configuration.........................8 1.6. Toggling Polling- / Scan-Mode...................8 1.7. Connecting an external antenna..................9 1.8.
  • Page 4 ® OBID Manual ID RW01L.AB-A 4.4. [0x63] CPU_RESET ......................25 4.5. [0x65] GET_VERSION .......................26 4.6. [0x69] RF_RESET ......................27 4.7. [0x52] BAUDRATE_DETECTION ..................28 5. Reader Configuration 5.1. CFG0: Reader Parameters....................29 5.1.1. COM_PARA ........................30 5.1.2. READER_MODE......................31 5.1.3. SCAN_MODE......................32 5.1.4. DB_ADR ........................34 5.1.5. D_LGT .........................34 5.1.6.
  • Page 5: Introduction

    The OBID ID RW01L.AB-A can be easily software-configured for any application. ® The OBID ID RW01L.AB-A offers access to the entire physical memory range of the supported transponders (see: 3.2. [0x14] WRITE_DB (Write data block(s)) 3.3. [0x15] READ_DB (Read data...
  • Page 6: Technical Data

    ® OBID Manual ID RW01L.AB-A 1.3. Technical data Circuit board dimensions (W x H x D) 45mm x 40mm x 16mm +/- 1mm Connection 2 x 10-pin connector on the solder side (pins: 0.7x0.7/ long incl. approx. 8mm insulator Temperature range (operating and storage) -20°C to +70°C...
  • Page 7: Dimensions

    ® OBID Manual ID RW01L.AB-A 1.4. Dimensions +0,5 -0,5 +0,1 32,4 -0,1 +0,5 +0,5 40,0 -0,5 -0,5 Fig. 1: Dimensions (mm) FEIG ELECTRONIC GmbH Page 7 of 39 H20801-1e-ID-B.doc...
  • Page 8: Pin Configuration

    ® OBID Manual ID RW01L.AB-A 1.5. Pin configuration Terminal Name Function /CLS Data/clock interface: valid data ANT1 External antenna ANT2 - Not connected - /RCP Data/clock interface: clock output /RDP Data/clock interface: data output RS232-TTL TxD RS232-TTL RxD - Not connected - - Not connected - Reset input (active to GND ⇒...
  • Page 9: Connecting An External Antenna

    ID RW01L.AB-A 1.7. Connecting an external antenna In place of the antenna on the ID RW01L.AB-A, you may connect an external antenna to terminals ANT1 and ANT2 (X1). When connecting an external antenna, you must separate the two connections on the onboard antenna.
  • Page 10: Declaration Of Conformity

    ® OBID Manual ID RW01L.AB-A 1.8. Declaration of Conformity FEIG ELECTRONIC GmbH Page 10 of 39 H20801-1e-ID-B.doc...
  • Page 11: Data Traffic Between Reader And Host

    ® OBID Manual ID RW01L.AB-A 2. Data traffic between Reader and Host There are three different kinds of data traffic between the reader and a host (terminal, PC, etc.). Polling and scan modes are used for data exchange between the transponder and host, whereas configuration mode is used to configure the reader parameters to the particular application.
  • Page 12: Asynchronous Interface, Data Formats And Protocol Frames

    ID RW01L.AB-A 2.1. Asynchronous interface, data formats and protocol frames The asynchronous interface can be used to configure the ID RW01L.AB-A, write data to the transponder and read data from the transponder. Communication between reader and host (terminal, PC, etc.) takes place using fixed protocols. The protocol used is designed for data bus exchange and includes a bus address.
  • Page 13 ® OBID Manual ID RW01L.AB-A Data format: Start bit: Data bit: Stop bit: Parity: even (default) Timing: • Protocol start gap: Before the start character (length byte) of the protocol a time gap of at least 5 ms must be maintained.
  • Page 14: Polling Mode

    ® OBID Manual ID RW01L.AB-A 2.2. Polling mode In polling mode you can exchange data between the host and a transponder via the reader in any sequence and as often as desired as long as the transponder is in the detection zone of the reader and the host has “selected”...
  • Page 15: Scan Mode

    ® OBID Manual ID RW01L.AB-A 2.3. Scan mode In this mode the reader autonomously sends data to the host as soon as a transponder is located in its detection zone and it has read the required data. Scan mode can be configured within a broad scope, so that it can be adapted to virtually any application.
  • Page 16: Scan Mode Over The Asynchronous Interface

    ® OBID Manual ID RW01L.AB-A 2.3.1. Scan mode over the asynchronous interface If scan mode is used over the asynchronous interface, the transponder data are output either in hex format or in ASCII format (see: 5.1.3. SCAN_MODE). In addition, it is possible to preface an individual start character (SCAN_PREFIX) and/or append a terminating character (SCAN_TERM).
  • Page 17: Scan Mode Over The Data/Clock Interface

    ® OBID Manual ID RW01L.AB-A 2.3.2. Scan mode over the data/clock interface In addition to the asynchronous interface, a synchronous data/clock interface is available which works unidirectional in either Wiegand or magnetic card emulation. The serial number or data can be output on this interface.
  • Page 18 ® OBID Manual ID RW01L.AB-A Example: Output raw data 0x19BF in the 3 various formats Start Stop DC-FORMAT b 0001 b 1001 b 1011 b 1111 b001 b 1101/0 b 1000/0 b 1001/1 b 1101/0 b 1111/1 b 1111/1 b 0001/0...
  • Page 19 ® OBID Manual ID RW01L.AB-A 2.3.2.2. Wiegand emulation Data format: In Wiegand emulation the data are output with no conversion, just as they are coded on the transponder. The data volume can be defined using parameter 5.1.5. D_LGT 5.1.6. D_START.
  • Page 20: Polling Mode (Read And Write Transponder Data)

    ® OBID Manual ID RW01L.AB-A 3. Polling mode (read and write transponder data) 3.1. [0x11] GET_SNR The polling command [0x11] GET_SNR performs two functions: 1. It selects the transponder. 2. It returns the serial number of the transponder and its type to the host Host →...
  • Page 21: 0X14] Write_Db (Write Data Block(S))

    DTx.B). NOTE: ® ® In contrast to the readers in the OBID ID RW family, the OBID ID RW01L.AB-A reader works directly with the physical addresses of the transponder. DB-ADR = 1 is used for example to read and write the configuration of the transponder for a transponder type ID DTx.B.
  • Page 22: 0X15] Read_Db (Read Data Block(S)

    DTx.B). NOTE: In contrast to the readers in the OBID® ID RW family, the OBID® ID RW01L.AB-A reader works directly with the physical addresses of the transponder. DB-ADR = 1 is used for example to read and write the configuration of the transponder for a transponder type ID DTx.B.
  • Page 23: 0X1A] Halt (Id Dtx.b Only)

    ® OBID Manual ID RW01L.AB-A 3.4. [0x1A] Halt (ID DTx.B only) The ID DTx.B transponders can be silenced using the “Halt” command. This makes it possible to turn off individual transponders located in the antenna field until you can select the transponder you want to exchange data with.
  • Page 24: Commands For Reader Control And Configuration

    ® OBID Manual ID RW01L.AB-A 4. Commands for reader control and configuration 4.1. [0x62] CONFIG_READ The command CONFIG_READ can be used to read the current configuration of the reader block by block. The configuration is stored in a block with 14 bytes (see also 5.
  • Page 25: 0X64] Config_Reset

    ® OBID Manual ID RW01L.AB-A 4.3. [0x64] CONFIG_RESET The protocol CONFIG_RESET is used to reset the configuration parameters to their factory default setting (see 5. Reader Configuration). Host → Reader: COM-Adr [0x64] CSUM Host ← Reader COM-Adr [0x64] CSUM Status 4.4.
  • Page 26: X65] Get_Version

    ® OBID Manual ID RW01L.AB-A 4.5. [0x65] GET_VERSION This protocol is used to get the software version of the reader, its model number and the model numbers of the transponders which the software supports. Host → Reader: COM-Adr [0x65] CSUM Host ←...
  • Page 27: X69] Rf_Reset

    ® OBID Manual ID RW01L.AB-A 4.6. [0x69] RF_RESET The command RF_RESET turns off the RF field of the reader antenna for a short time. All transponders located in the reader’s antenna field are set to their base state. Host → Reader:...
  • Page 28: X52] Baudrate_Detection

    ® OBID Manual ID RW01L.AB-A 4.7. [0x52] BAUDRATE_DETECTION This protocol is used to get the current baud rate of the reader’s asynchronous interface. Host → Reader: COM-Adr [0x52] 0x00 CSUM Host ← Reader COM-Adr [0x52] CSUM Status The return protocol is sent only if the query is made with the baud rate and current parity of the reader.
  • Page 29: Reader Configuration

    ® OBID Manual ID RW01L.AB-A 5. Reader Configuration 5.1. CFG0: Reader Parameters The reader configuration is contained in a 14-byte block (CFG0). Byte Contents COM_PARA READER_ SCAN_ DB_ADR D_START D_LGT SCAN_ MODE MODE PREFIX Default 0x05 0x02 0x00 0x00 0x00...
  • Page 30: Com_Para

    ® OBID Manual ID RW01L.AB-A 5.1.1. COM_PARA Transmission parameters for the asynchronous interface Bit: Function: COM_ADR BAUD default: b000 b101 BAUD: Baud rate COM-BR Baud rate b100 4800 baud b101 9600 baud b110 19200 baud 0 ⇒ Data transmission with even parity 1 ⇒...
  • Page 31: Reader_Mode

    ® OBID Manual ID RW01L.AB-A 5.1.2. READER_MODE This byte defines the operating mode of the reader. Bit: Function: DC-FORMAT SCAN-IF default b000 SCAN_IF: This byte is used to select the interface for scan mode Scan mode over the asynchronous interface...
  • Page 32: Scan_Mode

    ® OBID Manual ID RW01L.AB-A 5.1.3. SCAN_MODE This parameter is used to further define the behavior of scan mode. Bit: Function default DATA: Defines which data are output in scan mode b00: Serial no. b01: Data block The data block defined by DB_ADR, D_LGT and D_START is output.
  • Page 33 ® OBID Manual ID RW01L.AB-A FORMAT: This bit is used to specify the data output format when the asynchronous interface is activated for scan mode. unformatted hex data In this case the raw data are output just as they are read from the transponder.
  • Page 34: Db_Adr

    ® OBID Manual ID RW01L.AB-A 5.1.4. DB_ADR The start address of a data block from where transponder data should be read in scan mode. Valid addresses depend on the transponders used and may be found in their respective documentation. 5.1.5. D_LGT D_LGT defines the number of raw data which should be output in scan mode.
  • Page 35: D_Start

    ® OBID Manual ID RW01L.AB-A 5.1.6. D_START This parameter defines the first byte of the raw data (defined by DB_ADR and D_LGT) which should be sent in scan mode. If you want to output a complete block, D_START = 0 must be set.
  • Page 36: Appendix

    ® OBID Manual ID RW01L.AB-A APPENDIX APPENDIX A: Timing 1. Time values stored in the EEPROM have an accuracy of ± 5 ms. 2. The response times of the asynchronous interface depend on: • The amount of data to be read or written, •...
  • Page 37: Appendix B: List Of Status Bytes

    ® OBID Manual ID RW01L.AB-A APPENDIX B: List of status bytes General value 0x00 • Data/parameter was/were read or saved without error • Control command was executed Transponder Status value 0x01 No Transponder: There is no transponder in the detection zone of the reader.
  • Page 38: Appendix C: Memory Model Id Dtx.b

    ® OBID Manual ID RW01L.AB-A APPENDIX C: Memory model ID DTx.B APPENDIX C1: Philips Hitag 1 ® OBID Hitag 1 ID RW01L ID RWA ID RW Access Note Block Page DB-ADR Address Address • S-No. S-Nr. read-only • transponder read/write public •...
  • Page 39: Appendix C2: Philips Hitag S

    ® OBID Manual ID RW01L.AB-A APPENDIX C2: Philips Hitag S ® OBID Hitag S Access Note ID RW01L ID RWA ID RW Block Page DB-ADR Address Address • S-No S-No. S-Nr. read-only transponder configura- tion 4 - 7 4 - 7...
