AVR Cinema Mirror HC 37.53 Instructions And Tips For The Installation

CONSIDERATIONS

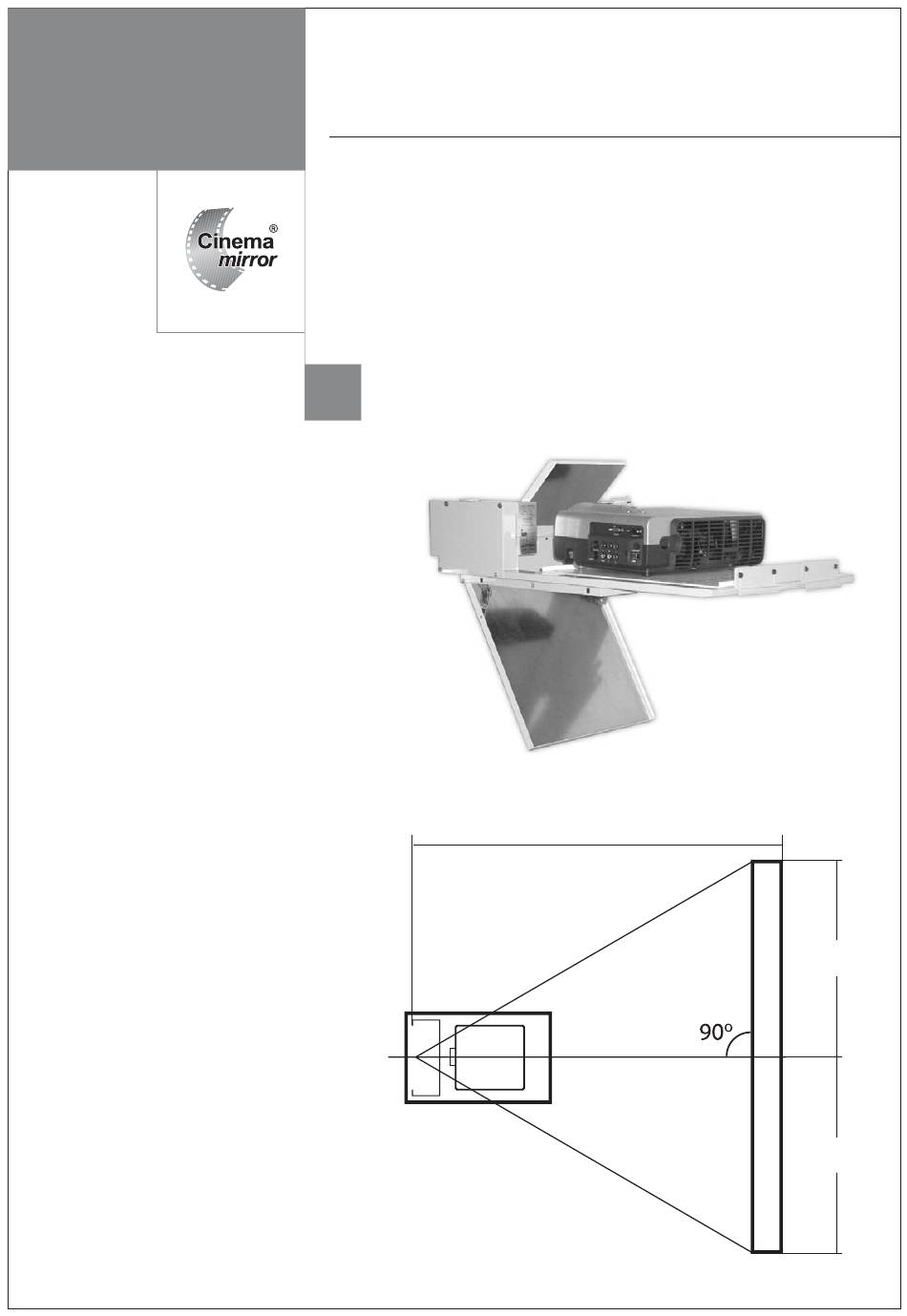

Cinema Mirror is an active optic set to be
installed in false ceilings hiding the
projection equipment, and that through
a pulsation it opens a floodgate of
335x335 mm., allowing the projection of
the image, thanks to its two mirrors,
without causing the trapeze effect on the
image. For that, Cinema Mirror and the
screen must be in the same plane or with
a difference from 0 to 12 cm. (Fig. 1).
Always be sure to perpendicularly set the
projected light with the projection screen,
any difference may negatively affect the
image (Fig. 2).
The optic mirrors of this equipment are
protected by a plastic film to avoid
accidents. Remove this film when it is
indicated by this manual.
Do not do so beforehand.
INSTRUCTIONS AND TIPS FOR THE INSTALLATION
OF THE HC 37.53 MODEL CINEMA MIRROR
GENERAL RECOMMENDATIONS FOR ASSEMBLY AND INSTALLATION
1
figure 1
figure 2
d = projector's focal – 20 cm.
x = y
y
x
