Summary of Contents for Feincook CIRCU ME SV800

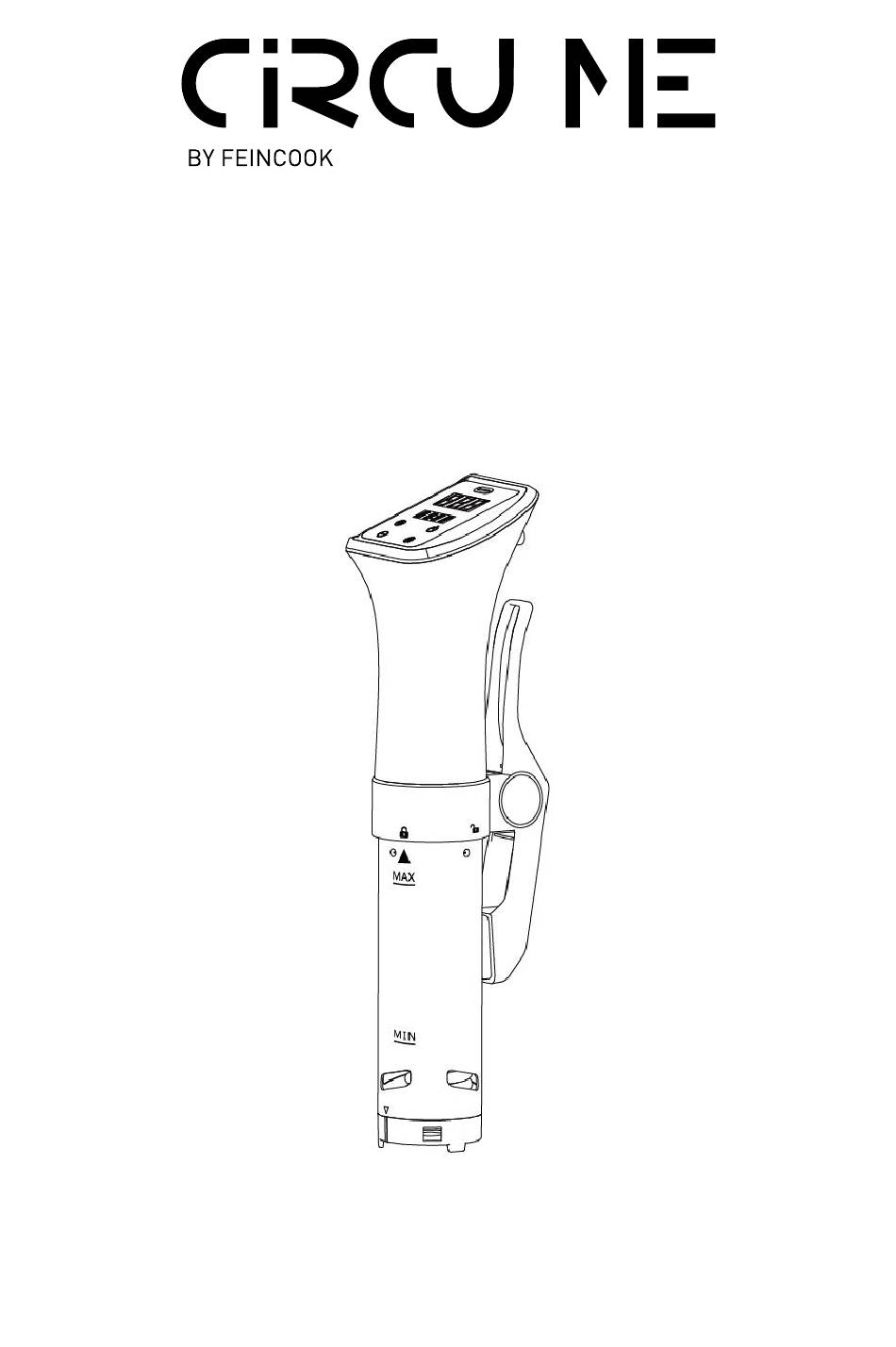

- Page 1 Sous Vide SV800 INSTRUCTION MANUAL...
-
Page 2: Operation Warning
OPERATION WARNING This section explains the potential dangers that may arise when operating the sous vide circulator and notes many important safety precautions. 1 Counter tops such as marble and corian cannot withstand the heat generated by the circulator. Place cooking container different surface to prevent damage. - Page 3 12.Never use a damaged appliance. If it has been damaged, please get it to approved service center, checked or repaired. 13.The supply cord could not be replaced. If the cord is damaged the appliance should be scrapped 14.Don’t let excess cord hang over the edge of the table or worktop or touch hot surface.
- Page 4 20. Details of suitable container to be used - Unplug the immsersion hearter before removing it from liquid - After unplugging ,the heating elements will remain hot and should not be touched or placed on combustible surface 21. If the appliance falls down into water tank by careless operation, unplugging it first , then removing it out of the tank ,wipping up the water on the applaince surface ,placing it in airy place..
- Page 5 INTRODUCTION A + and - adjustment buttons B Working illuminator C ON/OFF buttons D Clamp E Max and Min water level F Stainless steel skirt G Water pump cap SETUP (clamp & pot) Sous Vide circulator requires a 6-15L container or p ot.
-
Page 6: Indicator Light
SETUP (temp. / timer) 1. Plug it into the outlet. The “ ” icon and working lamp will be on and it will enter the standby mode.Press the “ ” icon to enter the setting mode. You will hear a sound of beep for every pressing. 2. -
Page 7: Maintenance
Maintenance • Always turn off and unplug the unit. • Internal service work must be performed by certified personnel only. • Make sure system is at room temperature. Check for signs of damage including pulled cord or physical damage to system or heaters. If any signs of physical damage are found, please send back to factory for replacement parts. -
Page 8: Maintenance & Cleaning
Maintenance (cleaning) CLEANING THE CIRCULATOR For cleaning the heating coil, pump shaft, and sensors, use dish soap, a soft tooth brush and rinse under water. Do not rinse the top part of the circulator including the main body in water. CLEANING THE SKIRT To clean the stainless steel skirt and pump cover –... - Page 9 The pump is sucking air - add more water. You should also see small bubbles in your tank. Food damage ： The pump’s water jet is cracking eggs or damaging fish fillets: Turn the pump outlet to face the container wall; this will greatly temper the flow of the pump output.
-
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS Power rate: 220-240V~ 50/60Hz 800W Temperature range: 0°C～90 °C Temperature Stability : ± 0.1ºC Circulation pump: 12 LPM Max Do not dispose of the device in normal domestic waste Dispose of the device over a registered waste disposal firm or through your communal waste disposal facility.Observe the currently valid regulations.
