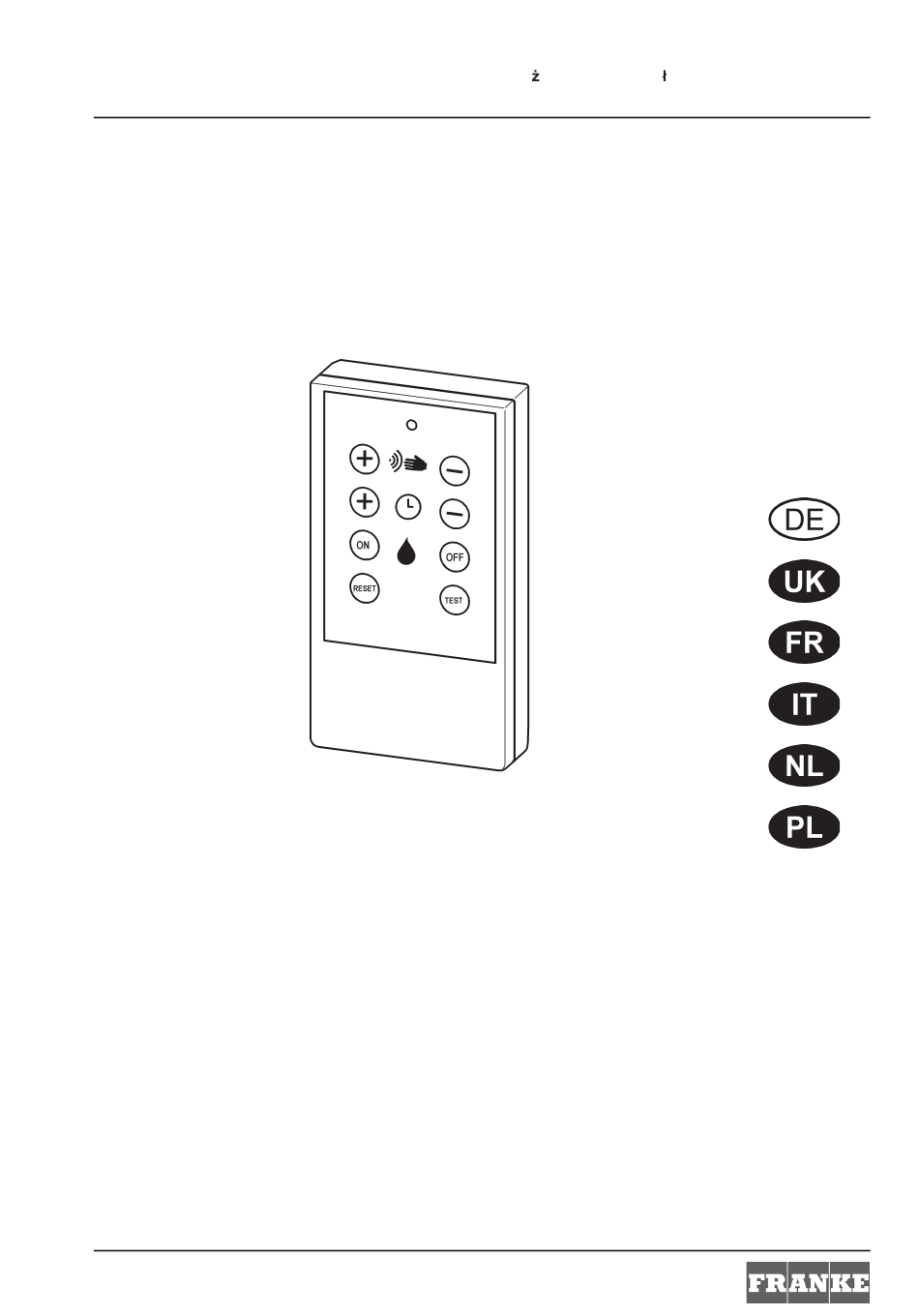

Installation and operating instructions
Notice de montage et de mise en service
Istruzioni per il montaggio e l'uso
EA-Nr.:
7612982151170
FAR-Best.-Nr.: 5207 10 00
ZAQUA091
Franke Aquarotter GmbH
18-15.100b-Exp.fm/14.11.11
Montage- en bedrijfsinstructies
Monta i instrukcja obs ugi

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZAQUA091 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Franke ZAQUA091

Summary of Contents for Franke ZAQUA091

  • Page 1 Installation and operating instructions Montage- en bedrijfsinstructies Notice de montage et de mise en service Monta i instrukcja obs ugi Istruzioni per il montaggio e l’uso EA-Nr.: 7612982151170 FAR-Best.-Nr.: 5207 10 00 ZAQUA091 Franke Aquarotter GmbH 18-15.100b-Exp.fm/14.11.11...
  • Page 2 ..............3 Please refer to the graphics in the German Installation and Operating Instructions..............14 Les graphiques sont disponibles dans la notice de montage et de mise en service allemande..............25 Per le grafiche fare riferimento alle Istruzioni per il montaggio e l’uso in tedesco.

  • Page 3: Table Of Contents

    0English Remote Control Please refer to the graphics in the German Installation and Operating Instructions. Table of Contents Warranty ..........3 Important Notes .

  • Page 4: User Interface

    User Interface A: Range B: Time C: Functions: On: Continuous operation mode Off: Cleaning mode D: Additional combination keys E: LED "Auto repeat" function When the keys for setting the range and the extension of flow duration are continually pressed, the command is sent again at regular intervals. Switching the Mode Both fittings operate with different baud rates.

  • Page 5: Functions

    When a remote command is accepted, the LED in the sensor (d) of the fitting flashes. The flashing intervals are described in the relevant functional description. • Each time that a remote command is accepted, the fitting remains in remote control mode for a further 60 s.

  • Page 6: Wash Fitting Settings

    Adjusting the extension of the flow duration/flushing time Use the + and – ( ) keys to adjust the extension of the flow duration in individual steps. • The LED in the sensor of the fitting flashes: – 4 × short for each adjustment by one step –...
  • Page 7 Activating continual flow (thermal disinfection) Turn the mixing lever of the fitting to the hot water limit stop (see instructions for the fitting). Press the ON key. • Continual flow is started (solenoid valve opens). ☞ Continuous flow can be prematurely terminated by pressing the ON key again.
  • Page 8 9.10 Press and hold the RESET key. 9.11 Press the OFF key within 2 s. • The LED in the sensor of the fitting flashes: 9.12 Press the OFF key within 10 s. • The LED in the sensor of the fitting flashes: –...
  • Page 9 Setting the flushing duration – Protronic-S The flushing duration can be set as follows: – 10 sec – 30 sec – 60 sec – 2 min – 3 min – 5 min – 7 min – 10 min ☞ The flushing duration is factory-set to 10 seconds. 9.20 Press the TEST key.
  • Page 10 Changing the type of detection (only for on-wall washbasin battery installation) Water flow should start/stop when a hand approaches/moves away from the sensor (3-7 cm). 9.24 Press the " –" key repeatedly until the minimum sensor range is reached. • The LED in the sensor of the fitting flashes: –...

  • Page 11: Urinal Settings

    10. Urinal Settings Triggering flushing 10.1 Press the ON key. • Water flows for the set flushing duration. Switching 24 hour flushing on/off ☞ Flushing is factory-set to 24 hours. 10.2 Press and hold the RESET key. 10.3 Press the OFF key within 2 s.

  • Page 12: Additional Settings For The Urinal

    11. Additional Settings for the Urinal ☞ These additional settings only apply for concealed urinal fittings operating on the mains. Switching preliminary flushing on/off ☞ The preliminary flushing is switched off at the factory. 11.1 Press and hold the TEST key. 11.2 Press the ON key within 2 s.

  • Page 13: Changing The Battery

    12. Changing the Battery 12.1 Unscrew the screw (a) on the rear side of the remote control. 12.2 Remove the cover (b). 12.3 Remove the batteries (c). 12.4 Check and clean the contacts. Replace the batteries if required. ☞ Use Micro 1.5V (AAA, LR03) type batteries and ensure correct polarity. 12.5 Reassemble in the reverse order.
