B-K lighting NS Standard Installation page 2

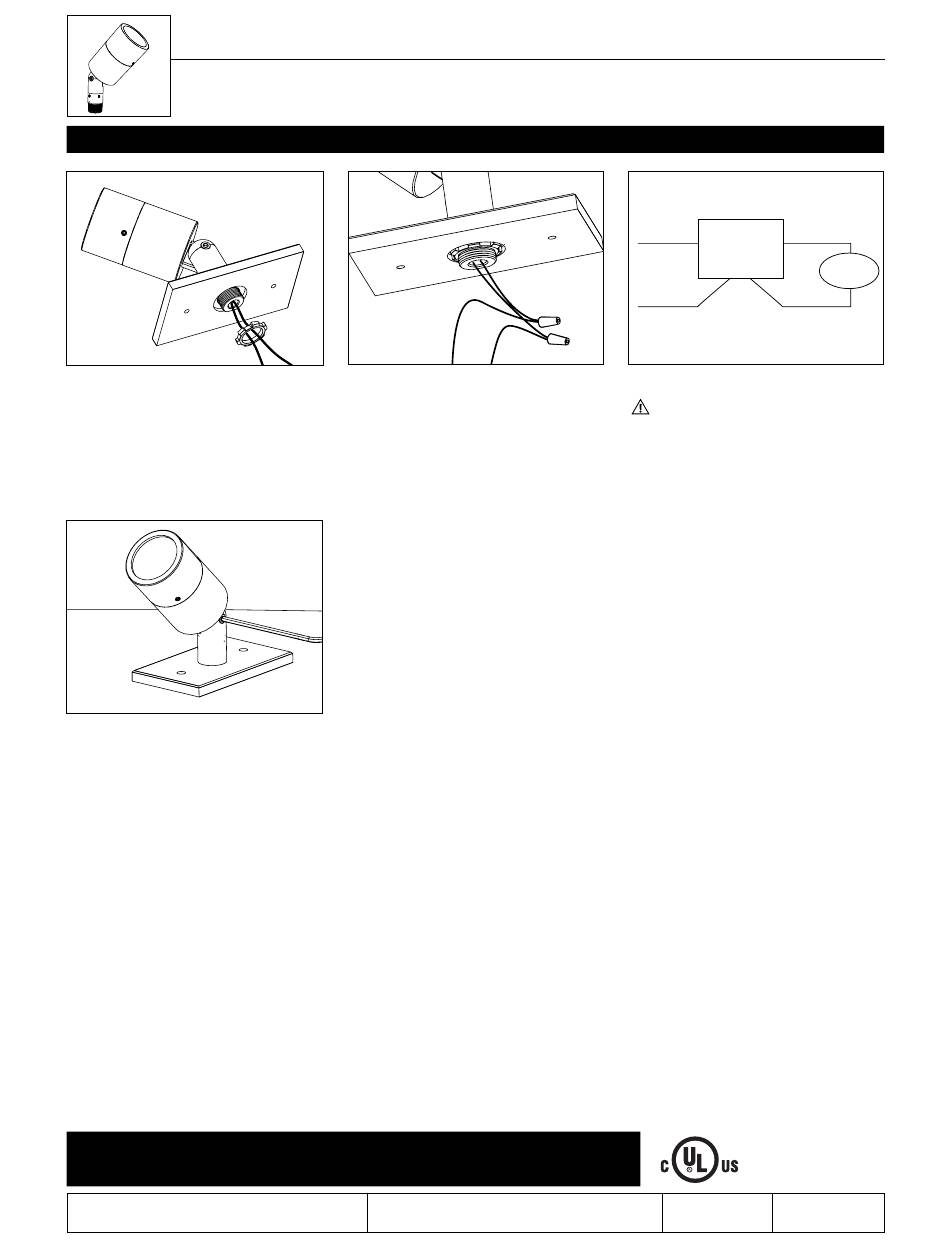

Standard Installation
Fixture Installation with Standard Knuckle
1. Mount knuckle onto suitable enclosure
according to designed lighting plan.
2. Secure ½" NPS stem to mounting option. Secure
with provided locknut if applicable.
4. Use 5/32" Allen wrench to slightly loosen #10-
32 stainless steel black oxide socket head cap
screw at the knuckle for aiming purposes.
Tighten to secure desired location.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
NS™ / NSII™ / DS™ / SH™ FLOODLIGHT
3. Make watertight connections from remote
transformer to lamp leads using waterproof
wire connectors (By Others). See wiring
diagram.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
Low Voltage Halogen
LINE 12V
Remote
Transformer
COM COM
WIRING DIAGRAM
For use with 12VAC remote transformer.
RELEASE REFERENCE NUMBER
7-15-16 INS000929.1
Fixture
