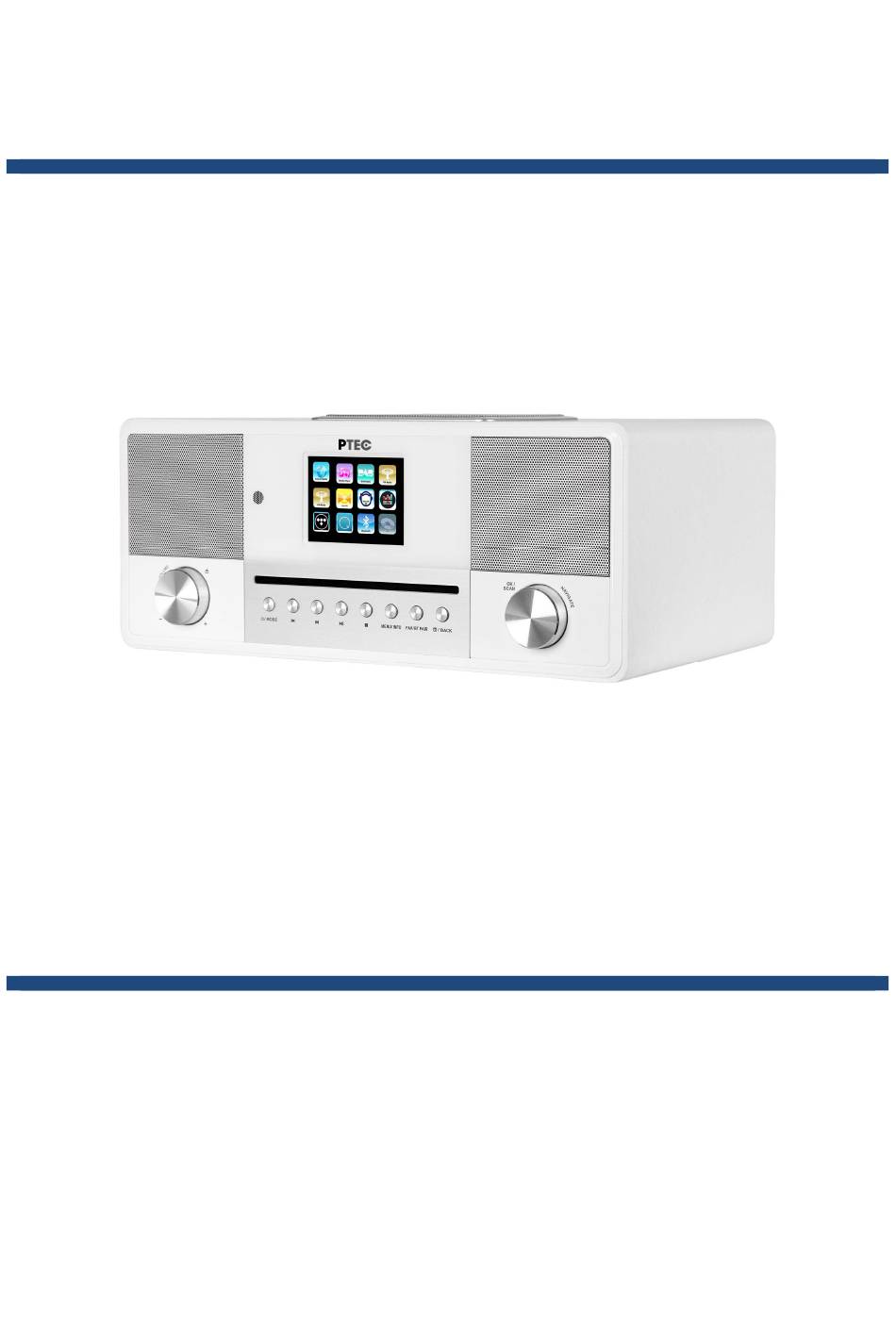

- Page 1 MANUAL All in One Smart Radio PTEC JURA Stereo, Internet, CD, DAB+/FM, Bluetooth, Spotify...
-
Page 2: Table Of Contents
Contents Introduction Intended use Package contents Safety Overview Getting Started 6.1 General Device Functions 6.2 Internet Connection 6.3 First-time Setup Menu Operation 7.1 Main Menu 7.2 Operating modes 7.2.1 Internet Radio 7.2.2 Spotify Connect 7.2.3 Music Player (Shared media / USB playback) 7.2.4 DAB+ Radio 7.2.5 FM Radio 7.2.6 CD Player... -
Page 3: Introduction
7.5 UNDOK System settings 8.1 Equalizer 8.2 Network 8.3 Time/Date 8.4 Language 8.5 Factory reset 8.6 Software update 8.7 Setup Wizard 8.8 Info 8.9 Backlight Troubleshooting Technical Specification Disposal Conformity Trademarks 1 Introduction... -
Page 4: Intended Use
Internet or a network, and reception of DAB+/FM radio programs. The device has been designed for private use and is not suitable for commercial purposes. 3 Package contents The items enclosed in the packaging box are as follows: Smart Radio PTEC JURA Power adaptor Remote Control 2 batteries of type AAA/LR03, 1.5 V Audio cable with 3.5mm jack at both ends... - Page 5 • Do not attempt to disassembly the device. • If the device is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire. •...
-
Page 6: Overview
should be easily accessible. • Never touch the power plug with wet hands and never pull on the power cable when pulling the plug out of the power socket. • Make sure the electrical voltage specified on the device and its power plug is corresponding to the voltage of the power socket. - Page 7 Subwoofer Satellites Front PLAY / PAUSE / RESUME NEXT/FAST FORWARD Receiver for infrared signal from remote control PREVIOUS / REWIND STANDBY / MODE Volume Knob – EJECT / VOLUME 2.8” TFT LCD display STOP MENU / INFO FAVORITE / PROGRAM / BT PAIR ALARM / BACK Navigate Knob - OK / SCAN / NAVIGATE CD player slot...
- Page 8 DAB+/FM antenna AUX IN socket HEADPHONE socket ON/OFF switch DC IN power supply USB connection for playback...
- Page 9 Remote Control Device power on/off; alarm off Open, close mode selection Display FM mode info (Name, PTY, RT, frequency) Display DAB mode info (Station, track, artist etc.) Display CD/USB mode info (Track, artist, etc.) Press and hold to open, close menu Select track, hold down to seek Start playback, pause Select equalizer preset...
-
Page 10: Getting Started
6 Getting Started General Device Functions Connect the power adaptor to the back of device and plug it into power socket. Switch on the device, it starts up. On the playing screen, rotate the volume knob or press on the remote control to adjust the volume. -
Page 11: First-Time Setup
You may also use the WPS (WiFi Protected Setup) function for easy pairing between the network device and JURA. Check if the light indicators on the network device are in appropriate status. First-time Setup When powering the device on for the first time, the following shows on the display: Rotate the knob to select “YES”... - Page 12 If you choose “No update”, you will have to enter the date and time manually. The day flashes. Set the day and press to confirm. The month flashes. Set the month and press to confirm. The year flashes. Set the year and press to confirm.
- Page 13 To enter the network’s key, use the reel or direction keys on the remote control to move the cursor through the characters and press to confirm. As each character is selected, the key is built up near the top of the display. There are three options accessible by tuning the navigate reel back before the first characters –...
-
Page 14: Menu Operation
instructions. Smart radio attempts to connect to the selected network. It will show connected if the setup is successful. If connecting fails, it returns to a previous screen to try again. Once completed, press to quit the setup wizard. 7 Menu Operation Main Menu The main menu takes you to all the functions and settings for the device. - Page 15 If you are already listening to an Internet radio station, you can press on the remote control to quickly return to the last visited branch of the menu tree, rather than press and hold to go to the first menu of Internet radio mode. Last listened When Internet radio mode restarts, the last-listened station is selected.
-
Page 16: Spotify Connect
Once your radio is registered with the portal, you can immediately use the Internet radio favorites and added stations features. To store a playing station as a favorite, press and hold until the display shows ‘Favorite added’. The station appears in the default favorites list Stations. My added stations Even though the Internet radio portal contains thousands of stations, you may want to listen to stations not listed. -
Page 17: Music Player (Shared Media / Usb Playback)
You’ll need Spotify Premium to use Connect – see details overleaf. Step 1. Add your speakers to your WiFi network. Step 2. Fire up the Spotify app on your phone, tablet or PC using the same WiFi network as above. Step 3. - Page 18 You can use to play the previous or next track, press and hold to rewind or fast forward. Press to play or pause. Press to stop playback and return to the song list. Shared media If you have set up shared media, you should see an entry consisting of <computer name>: <Shared media name>.
-
Page 19: Dab+ Radio
indicates UPnP or USB depending on the source. To view further information, press Each time you press , another set of information is displayed, cycling through the information: track/artist/progress bar/track times, album, codec/sampling rate, playback buffer and today’s date. Album cover of the track from music server is supported, while album cover from USB is unsupported. - Page 20 To remove stations that are listed but not unavailable, choose Prune invalid. Turn the navigate reel to view a list of stations and press to select. Once selected, the station plays and the screen show information about station, track or show as broadcast. Presets To store DAB preset, press and hold until the display shows the Save preset screen.
-
Page 21: Fm Radio
Ensemble lists groups of stations that are broadcast together on the same ensemble. Valid lists valid stations first, alphanumerically, then off-air stations. 7.2.5 FM Radio FM radio mode receives analogue radio from the FM band and displays RDS (Radio Data System) information about the station and where broadcast. -
Page 22: Cd Player
Each time you press , another set of information is displayed, cycling through RDS text, further RDS text (station/program type), frequency and today’s date. Settings • Scan settings By default, FM scans stop at any available station. This may result in a poor signal-to- noise ratio (hiss) from weak stations. - Page 23 Repeat/shuffle Press on the remote control to swap among normal playback, repeat one, repeat all (and repeat folder for MP3 / WMA CD) and turn on/off the function of random. CD track programming Stop the playback first if any track is playing. Press to program.
-
Page 24: Bluetooth
7.2.7 Bluetooth In Bluetooth mode, the radio enters the pairing mode automatically. You can turn on the Bluetooth of your Bluetooth device and search the radio “Internetradio” to pairing. When it is waiting for pairing, there is a blinking Bluetooth icon at the bottom. If the pairing is successful, the Bluetooth icon becomes steady. - Page 25 Control on Computers The system requirements for DLNA streaming are Windows 7 or above. Share the media on your PC to the network and allow JURA to access. Control Panel > Network and Internet > Network and Sharing Center > Media streaming...
-
Page 26: Streaming Services
Please inform yourself on the homepages of the providers. We recommend that you first install the UNDOK app on the device that you want to use to control JURA (this can be a smartphone or tablet, etc. which must be in the same network as JURA. Press... -
Page 27: Alarm
Once you select a sleep period, the system returns to the main menu. Press and hold or press on the remote control to return the now playing screen. Alarm There are two versatile wake-up alarms with snooze facility, and a sleep function to turn the system off after a set period. -
Page 28: Undok
UNDOK The device gives a feature of network remote by smartphone or tablet in iOS or Android system. By downloading the assigned app named UNDOK, you can view all the modes the device. Search UNDOK from Google Play or Apple Store, and install it to your smartphone or tablet. -
Page 29: System Settings
8 System settings Equalizer Several preset EQ modes are available: Normal, Flat, Jazz, Rock, Movie, Classic, Pop and News. Also a user-defined setting is available; create your own EQ with custom bass, treble settings. Network Network wizard Enter to search AP SSID, then input the WEP / WPA key or choose Push Button/Pin/Skip WPS to connect to the wireless network. -
Page 30: Time/Date
From here you can see the list of registered networks. You can delete unwanted networks by turning and pressing the on the remote control then choosing “YES” to confirm delete. Clear network settings Select “YES” to clear all the current network settings. Select “NO” to cancel. Keep network connected If you choose to keep network connected, the WiFi will not disconnect even you are in standby mode. -
Page 31: Setup Wizard
Automatic updating is enabled by default. To disable it, select “NO”. To enable it again, select“YES”. Check now Search for available updates immediately. If newer available software is detected, you will be asked if you want to go ahead with an update. -
Page 32: Troubleshooting
9 Troubleshooting Error Remedy The device does not switch on. Check it the power adaptor is connected properly. No sound. 1. Turn on the sound as it may be muted 2. Increase the volume. 3. Pull any connected headphone or speaker from the connector jack. - Page 33 1. Switch on the alarm. Alarm does not work. 2. Due to the volume setting, refer to the solutions of “No sound”. 3. The source of alarm was set to be station but there is no network connection. Change the source of alarm or reconfigure the connection.
-
Page 34: Technical Specification
10 Technical Specification Model number JURA Description Smart Radio with FM/DAB+/CD/BT/USB/AUX Display 2.8", 320 x 240, TFT colour display Network supported WiFi IEEE 802.11b/g/n wireless; Bluetooth (BT 2.1, Supports A2DP, AVRCP profiles) Frequency band WiFi : 2.400 - 2.4835 GHz;... -
Page 35: Disposal
3.5mm aux in socket, stereo DC IN power supply socket (5.5mm) Dimensions 305 mm(L) x 125 mm(H) x 185 mm(D) Weight 3.18 kg Specifications subject to change without notice. Power Adaptor Manufacturer Shenzhen Xinspower Technology Co.,Ltd. Address: The 2nd Floor, A Building FangYuan Technology Park, HuangPu ShuiKu Road, ShaJing Street, Baoaon District, Shenzhen, Guangdong P.R.China Type... -
Page 36: Conformity
EU Declaration of Conformity Hereby we, Palotec AG, Frikartstrasse 3, CH-4800 Zofingen, Switzerland declare that this DoC is issued under our sole responsibility for below equipment: Smart Radio Product Name: PTEC JURA Model No.: AC Adaptor Supplied accessories and components Hardware Version:... - Page 37 EN 55035: 2017 ; EN 61000-3-2: 2014 ; EN 61000-3-3: 2013 Article 3.2: EN 300 328 V2.1.1: 2016 ; ETSI EN 303345 V1.1.7(draft) Signed for and on behalf of: Palotec AG Place and date of issue: 13 Trademarks Apple®, iPhone® and iPad® are trademarks, App Store is a service mark of Apple Inc., registered in the USA and other countries.
- Page 38 Maybe the error can be solved in advance by our customer service. If the error cannot be resolved, you will receive instructions on which address to send the device to. Manufacturer: Palotec AG Frikartstrasse 3 4800 Zofingen (Switzerland) Web: www.ptec.ch E-Mail: info@ptec.ch Made in China...
