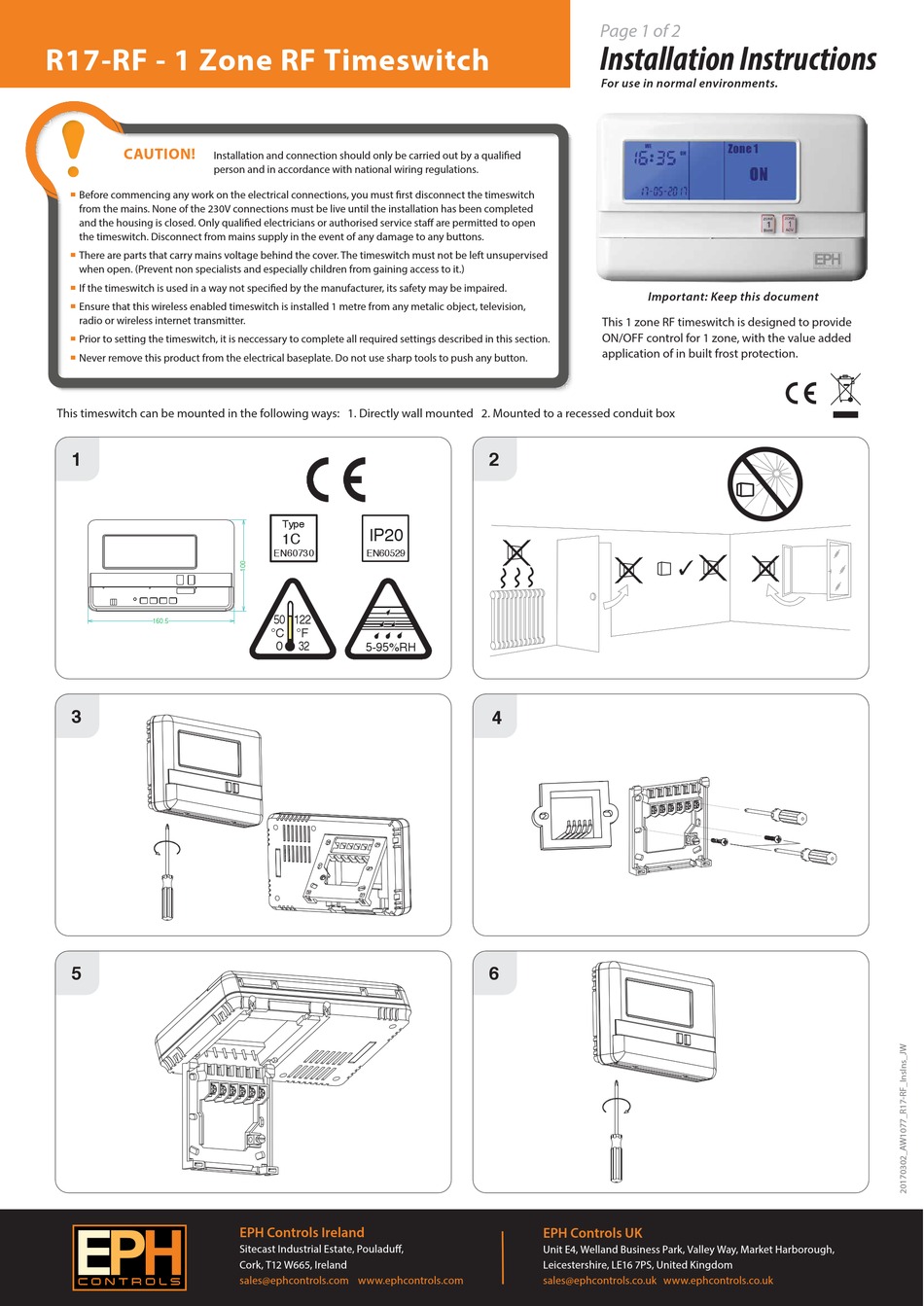

EPH R17-RF Installation Instruction

R17-RF - 1 Zone RF Timeswitch
CAUTION!
Installation and connection should only be carried out by a quali ed
person and in accordance with national wiring regulations.
Before commencing any work on the electrical connections, you must rst disconnect the timeswitch

from the mains. None of the 230V connections must be live until the installation has been completed
and the housing is closed. Only quali ed electricians or authorised service sta are permitted to open
the timeswitch. Disconnect from mains supply in the event of any damage to any buttons.
There are parts that carry mains voltage behind the cover. The timeswitch must not be left unsupervised

when open. (Prevent non specialists and especially children from gaining access to it.)
If the timeswitch is used in a way not speci ed by the manufacturer, its safety may be impaired.

Ensure that this wireless enabled timeswitch is installed 1 metre from any metalic object, television,

radio or wireless internet transmitter.
Prior to setting the timeswitch, it is neccessary to complete all required settings described in this section.

Never remove this product from the electrical baseplate. Do not use sharp tools to push any button.

This timeswitch can be mounted in the following ways: 1. Directly wall mounted 2. Mounted to a recessed conduit box
1
160.5
3
5
Type
IP20
1C
EN60730 EN60529
50 122
°C °F
0 32
5-95%RH
EPH Controls Ireland
Sitecast Industrial Estate, Pouladu ,
Cork, T12 W665, Ireland
sales@ephcontrols.com www.ephcontrols.com
Page 1 of 2

Installation Instructions

For use in normal environments.
Important: Keep this document

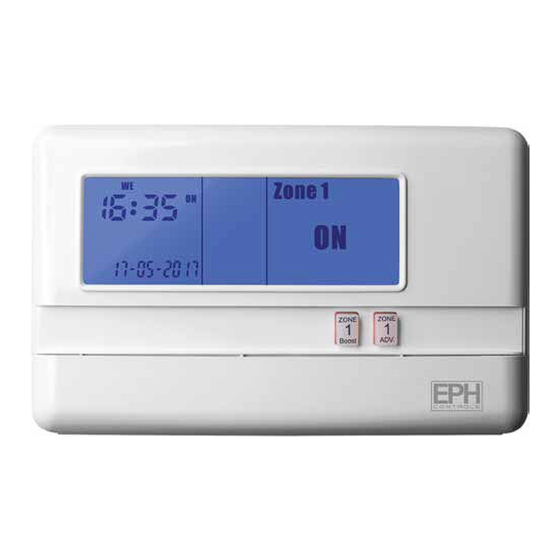

This 1 zone RF timeswitch is designed to provide
ON/OFF control for 1 zone, with the value added
application of in built frost protection.
2
4
6
EPH Controls UK
Unit E4, Welland Business Park, Valley Way, Market Harborough,
Leicestershire, LE16 7PS, United Kingdom
sales@ephcontrols.co.uk www.ephcontrols.co.uk
