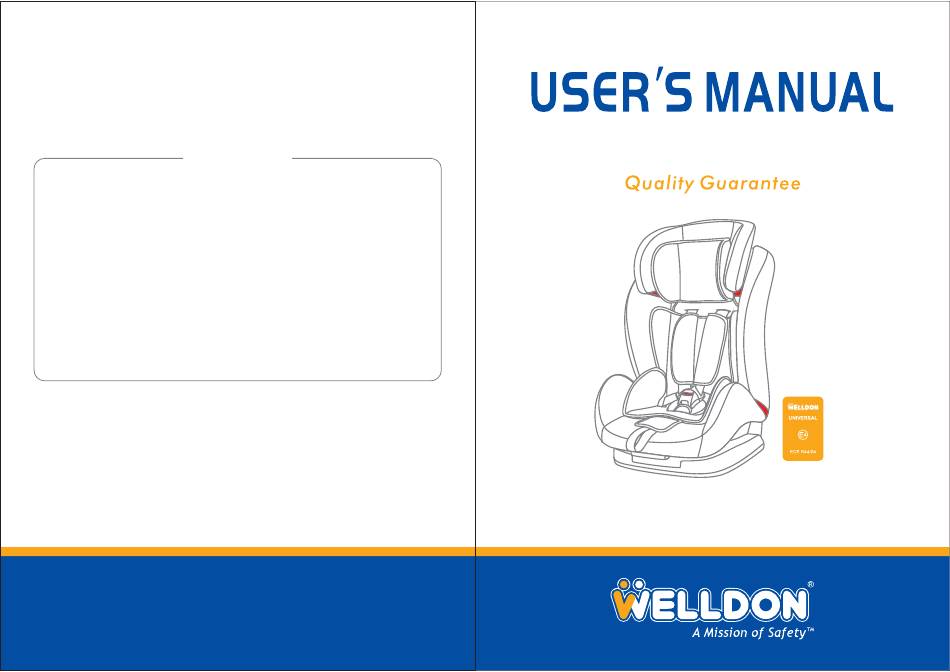

Welldon BS07-B User Manual

Group i+ii+iii 9-36kg quality guarantee
Hide thumbs
Table of Contents

Advertisement

Quick Links

Notice
1. This is a Universal child restraint. It is approved to Regulation No.44,04 series of
amendments, for general use in vehicles and it will fit most, but not all, car seats.
2. A correct fit is likely if the vehicle manufacturer has declared in the vehicle
handbook that the vehicle is capable of accepting a Universal child restraint for this
age group.
3. This child restraint has been classified as Universal under more stringent conditions
than those which applied to earlier designs which do not carry this notice.
4. If in doubt, consult either the child restraint manufacturer or the retailer.
5. Only suitable if the approved vehicles are fitted with 3 point static or retractor
safety belts, approved to UN/ECE Regulation No.16 or other equivalent standards.
6. Do not use rearward facing in seating positions where there is an airbag installed.
This instruction for use will be translated in
French\German\Spaish\Russian\Polish\Hebrew\Korean\Japanees\Turkish\Portuguese\Italian
www.nbwelldon.com
Group I+II+III (9-36kg)
The product has been approved according to the strictest European
safety standards (ECE R 44/04) and is suitable for Group I+II+III(9-36KG).
SUITABLE FOR
BS07-B
9-36 KG Y
BS07-BE
04444115

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BS07-B and is the answer not in the manual?

Questions and answers

Related Manuals for Welldon BS07-B

Summary of Contents for Welldon BS07-B

  • Page 1 5. Only suitable if the approved vehicles are fitted with 3 point static or retractor safety belts, approved to UN/ECE Regulation No.16 or other equivalent standards. 6. Do not use rearward facing in seating positions where there is an airbag installed. SUITABLE FOR BS07-B 9-36 KG Y BS07-BE 04444115...

  • Page 2: Table Of Contents

    Contents Introduction Contents ...................1 Dear parents Introduction ................2 Thank you very much for purchasing our product. Important ................3-4 The nice function and credible design with accord to somatology would Know your car seat ..............5-6 afford the most safety and comfort when your child was in this child 1.

  • Page 3: Important

    Important Important WARNING: Read this instruction manual carefully. The baby car seat must not be used without the cover. Please use an original cover, as the cover contributes to the safety of the seat. WARNING: The correct fitting of the seat belt, along the red marking between the shell and the base of the seat, is of vital importance for the safety of your The seat must be secured with a seat belt, even when it not on use.

  • Page 4: Know Your Car Seat

    Know your ar seat Know your ar seat 17. Headrest Head pillow 1. Headrest handle Upper shaft 19. Belt guide 20. Cushion Lower shaft Cover Belt pads Buckle pad Shell Belt guide band Adjusting cover Adjusting device 7. Lock-off device 8.

  • Page 5: Suitability

    ... as a child safety seat installed in a vehicle DO NOT use on a passenger seat with a front airbag! Tested and certified WELLDON BS07 according to ECE* R 44/04 Child Safety Seat Danger! An airbag hitting the infant carrier can cause serious injuries to Group Body Weight your child, possibly resulting in death.

  • Page 6: Securing Your Baby

    Securing your baby Use in the vehicle 2.1 With the vehicle's 3-point seatbelt 3. Securing your baby 3.1 Securing your baby using the baby insert For the protection of your baby The baby insert gives your baby the necessary support while he or she is still small.

  • Page 7: How To Adjust The Belts, Headrest And Seat Positions

    Securing your baby Securing your baby 3.2 How to adjust the belts, headrest and seat positions 3.3 Securing your baby using the harness The correct belt height of the shoulder belts is attained when the belt Loosen the shoulder belts by pressing the release button and pulling the d sappears into the shell slightly above the shoulder of the child.

  • Page 8: Tightening The Harness

    Securing your baby Installation in the vehicle 3.4 Tightening the harness 4. Installation in the vehicle Please do not leave your child unattended in the child Pull the strap end safety seat in the vehicle. Caution! Pull the strap end straight towards you, not upwards or downwards.

  • Page 9: 9-18Kg

    Installation in the vehicle Installation in the vehicle 4-1 Installation of Group I and it is for the children whose 4-1 Installation of Group I and it is for the children whose weight between 9-18kg. weight between 9-18kg. Adjust the baby car seat into the sleeping position (3-C). Take the Lower Shaft out of the seat, then pull the seat back (4-A).
  • Page 10 Installation in the vehicle Installation in the vehicle 4-2 Installation of Group II and it is for the children 4-3 Installation of Group III and it is for the children whose weight between 15-25kg. whose weight between 22-36kg. Before the installation, please take away the belt system of baby car seat Adjuster the height of the headrest to suit your child (4-P).

  • Page 11: Care Instructions

    Care instructions Care instructions 5.1 Removing the 5-point harness system and cover 5.2 Refitting the 5-point harness system and cover Adjust the shell to the inclined position (3-A/3-C), pull the Lower shaft out After washing, place the cover on the shell (5-G). and pull the seat shell towards (4-A), push down the adjusting device and Loosen the bottom part of the cover and pull the belt clip through the elt...

  • Page 12: Cleaning

    Care instructions Care instructions 5.5 Warranty 5.3 Cleaning Please be sure to use only original Diadem replacement seat covers, as The warranty period starts from the date of purchase and is valid for a the seat cover is important to the proper functioning of the system. period of 12 months.
