Summary of Contents for OTOVATION Amplitude T Series

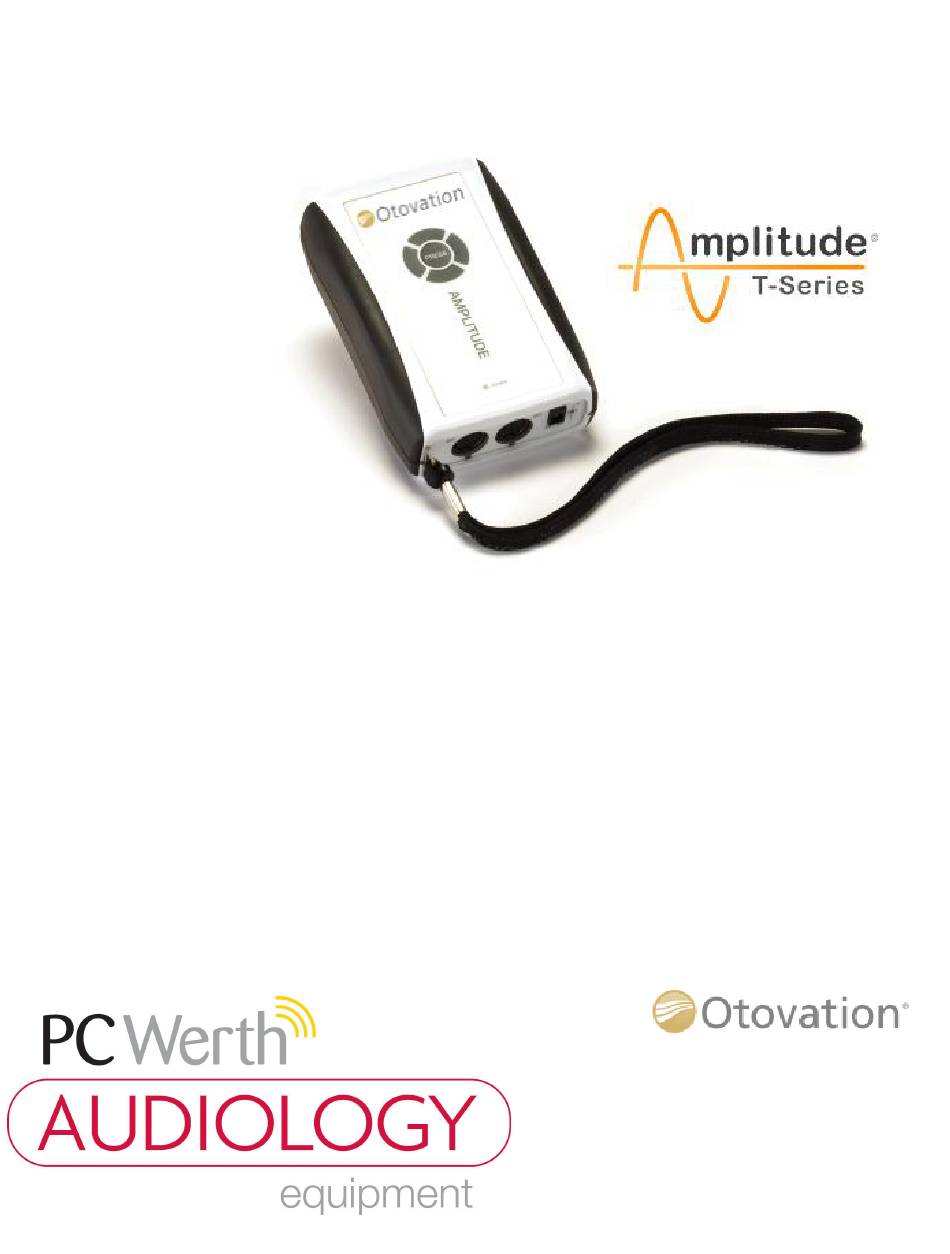

- Page 1 Symphony for Auditbase Installation Guide Applicable only to Otovation Amplitude T-Series Audiometers used with Auditbase patient management software 1001 W. Ninth Ave., Suite A King of Prussia, PA 19406 USA Toll Free: +1-866-OTOVATION E-mail: info@Otovation.com...
-
Page 2: Table Of Contents
Web: www.Otovation.com Otovation, Amplitude, Symphony, and OTONet are registered trademarks of Otovation, LLC AuditBase is a registered trademark of Auditdata Windows XP and Windows Vista are registered trademarks of Microsoft Corporation Bluetooth is a registered trademark of the Bluetooth SIG All other trademarks are the property of their respective holders. -
Page 3: Installation Guide For Amplitude T-Series Audiometers
User Guide (printed form) Installation Guide (printed form) Initial device calibration form If, after opening the box, any of the above items are not included, or if any of the parts appear damaged or defective, please contact OTOVATION or your supplier immediately. -
Page 4: Step 2: Insert And Charge The Device Batteries
® Amplitude T-Series - Installation Guide STEP 2: INSERT AND CHARGE THE DEVICE BATTERIES The Amplitude T-Series audiometer is powered by (2) AA Nickel Metal Hydride (NiMH) batteries that will provide up to between 8 and 10 hours of use on a full charge. To conserve battery power, the audiometer will automatically power off after two (2) minutes if not connected to a PC. -
Page 5: Step 3: Installing The Symphony For Auditbase Software
® Amplitude T-Series - Installation Guide Then, plug the power supply into an electrical outlet. Charge the unit for at least 30 minutes prior to first use. This will ensure that you have a relatively full charge when you begin using the device. Note that the small green light on the power supply unit will be lit when the charger is plugged in and the unit is charging. - Page 6 ® Amplitude T-Series - Installation Guide Click the ‘Next >’ button to proceed with the installation. Read the Software License Terms. If you agree, click the ‘I accept the agreement’ radio button. This will result in the ‘Next >’ button being activated; click this button to proceed. If you do not agree with the Terms, the installer will close, and the software will not be installed.
- Page 7 ® Amplitude T-Series - Installation Guide It is recommended that you install the software to the default folder specified. If necessary, you may select another folder on your PC by clicking on the ‘Browse…’ button. To continue, click the ‘Next >’ button. You may accept the default folder or use the ‘Browse’...
- Page 8 ® Amplitude T-Series - Installation Guide Select (check) or unselect (uncheck) icon choices to meet your preference, and then click the ‘Next’ button to continue. This screen summarizes your selections to this point. If you wish to change any of the settings, click on the ‘<...
- Page 9 ® Amplitude T-Series - Installation Guide A progress bar is displayed while files are being extracted and copied to your PC. A final message is displayed when installation is complete. Click the ‘Finish’ button to exit the installation. Now that Symphony for AuditBase has been installed, AuditBase must now be set up in order to use Symphony for AuditBase’s functions.
- Page 10 ® Amplitude T-Series - Installation Guide Run and log in to AuditBase. Enter System Administration by clicking on Modules from the top menu and selecting System Settings then Open System Administration from the menus that appear. You will then need to enter your Administrator-level Username and Password.
- Page 11 In the “Default location of the application…” field, click on the button to its right labeled “…” to open a file browser. Navigate to the folder containing the Symphony for AuditBase executable. By default, this folder will be C:\Program Files\Otovation\SymphonyForAuditBase\ and the executable is SymphonyForAuditBase.EXE. Select the executable file and then click Open.
- Page 12 ® Amplitude T-Series - Installation Guide Locate and double-click on Workstation settings in the list on the left. From the selections that open below it, single click on Audiogram. Enter the following information in their appropriate fields: Audiometer ID: Symphony Audiometer type or communication method: Select “Driven by external application”...
-
Page 13: Step 4: Connect The Transducers
® Amplitude T-Series - Installation Guide STEP 4: CONNECT THE TRANSDUCERS Check the alignment of the plug, and then insert the headphone transducer cable plug into the AC (Air Conduction) port on your device. The mini-DIN plugs used are intended to provide a very secure and tight coupling to the device so that the optimal connection is made and if the device is dropped, the cable will remain connected. -
Page 14: Step 6: Start The Symphony For Auditbase Software
® Amplitude T-Series - Installation Guide STEP 6: START THE SYMPHONY FOR AUDITBASE SOFTWARE Once you’ve completed steps 1-5 above, you are now ready start the Symphony for AuditBase software. Start the AuditBase Software: Select a user for testing, and then select Measurements > AB Audiogram from the top menu. In the Audiogram window, click the button labeled “Measure”. - Page 15 ® Amplitude T-Series - Installation Guide The Discovery process will take approximately 20 -30 seconds the first time you try to connect to your device. The status indicator in the upper right corner of the Symphony for AuditBase window will turn yellow to indicate that you are searching for available devices.
