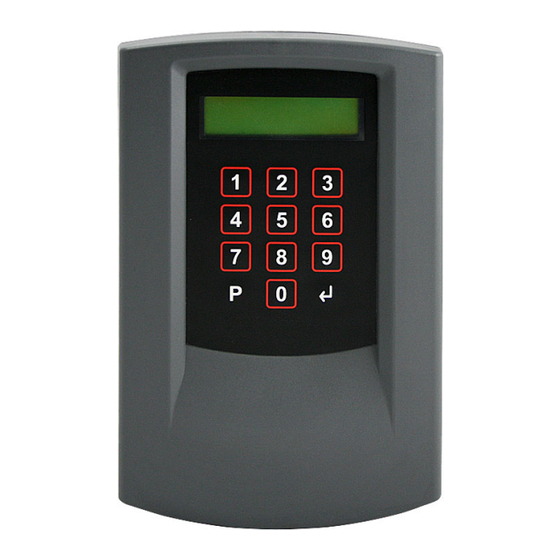

Nortech CRC200R User Manual

2-reader access controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CRC200R
2-Reader Access Controller
USER GUIDE
REF No.: UG-CRC200R
ISSUE: 02
March 2009

Advertisement

Table of Contents
loading

Related Manuals for Nortech CRC200R

Summary of Contents for Nortech CRC200R

  • Page 1 CRC200R 2-Reader Access Controller USER GUIDE REF No.: UG-CRC200R ISSUE: 02 March 2009...
  • Page 2 CRC200R USER GUIDE ISSUE 02...

  • Page 3: Table Of Contents

    CRC200R USER GUIDE ISSUE 02 Contents Contents ............................1-1 SCOPE............................1-1 INTRODUCTION........................2-1 Overview ..........................2-1 Features...........................2-1 INSTALLATION........................3-1 Mounting the Unit......................3-1 Power Supply and Cabling Requirements ...............3-2 3.2.1 Power Supply......................3-2 Reader voltage settings ....................3-3 Connecting the reader .....................3-3 Output Relay Connections ....................3-3 Free Exit Option .......................3-3 Arming and Door Monitoring Options................3-4...
  • Page 4 CRC200R USER GUIDE ISSUE 02 5.5.2 Set APB Mode ......................5-8 5.5.3 Date/Time .........................5-9 5.5.4 Timezones (Door Open Timezones when set to ‘210’) ...........5-10 5.5.5 Card Format......................5-11 5.5.6 Card Test ........................5-13 Clear Cards ........................5-13 Clear Events........................5-14 Timezones (Available only in Mode ‘210’)..............5-15 Access Levels (Available only in Mode ‘210’) ..............5-16...

  • Page 5: Scope

    ISSUE 02 1 SCOPE This User Guide specifically covers the installation and programming of CRC200R fitted with firmware version 3.02. For the CRC200S fitted with firmware version 3.02, refer to UG-CRC200S Issue 02. For earlier versions of CRC200, please refer to User Guide UG-CRC200.

  • Page 7: Introduction

    2 INTRODUCTION 2.1 Overview The Nortech CRC200R is a two-channel card reader controller that provides the ideal solution to OEM (original equipment manufacturer) companies that require a controller for their card access system. It is ideal both for simple card access systems that control vehicle or personnel movements into and out of car parks or through electronically controlled doors, and for more complex systems requiring time zones, anti-passback, event logging, etc.

  • Page 9: Installation

    CRC200R USER GUIDE ISSUE 02 3 INSTALLATION 3.1 Mounting the Unit The CRC200 can be wall-mounted when used indoors or fixed inside a weatherproof housing for outdoor use. Identify a location convenient for cabling while ensuring that the LCD screen and keypad are easily accessible for programming the unit and carrying out diagnostics.

  • Page 10: Power Supply And Cabling Requirements

    Figure 3.1 – CRC200R Connection Diagram 3.2.1 Power Supply The CRC200R must be fed from a suitable power supply that is capable of supplying a voltage between 12 and 24 volts DC (see warning below). The supply current requirements for the unit are100 milliamps quiescent, and 230 milliamps while reading with a passive reader.

  • Page 11: Reader Voltage Settings

    3.6 Free Exit Option On the CRC200R there is a ‘Free Exit’ option for each of the two output relays. This operates such that the momentary application of a ground to the ‘free exit’ pin (marked REX on the diagram) has the same effect as the detection of a valid card at the corresponding reader (i.e.

  • Page 12: Arming And Door Monitoring Options

    The door-monitoring feature can be used if the CRC200R is online to a Norpass2 Access Control Management System. Here, these pins are wired via a door contact such that the pins are short- circuited when the door is closed.

  • Page 13: Programming The Crc200R

    ISSUE 02 4 PROGRAMMING THE CRC200R Once the CRC200R has been installed and powered up, the next stage is the programming of the operating parameters to match the requirements of the installation. To quickly programme a basic configuration for use with ‘Clock & Data’ cards, simply follow the Quick Set-up Guide supplied with the CRC200R.

  • Page 14: Main Installation Parameters

    This mode is no longer used. (offline) LINE This mode is used when the CRC200R is to be used as part of a managed network. The basic features are the same as those for offline operation. (online) This mode offers additional time zone options and card access level features while still allowing 2 programmable time zones for door open applications.
  • Page 15 CRC200R USER GUIDE ISSUE 02 4.2.2.2 Reader Settings The following information is required for each reader: • The required relay operating time (the period for which the door/barrier is to stay open) • The maximum time that a door can be held open before raising an alarm (applicable to access control software only) •...
  • Page 16 .section 5.8 for programming procedure). 2. Choose the access levels for groups of cardholders based on applicable validity time zones specific to each reader, and add them to the CRC200R (see 5.9 for programming procedure). 3. Add cards and assign the appropriate access levels (see section 5.1.2 for programming procedure).

  • Page 17: Anti-Passback

    This is set by an Access Level when the CRC200R is in 210 mode (set to ‘1’ if no time restriction is required). In Line mode, the card must be assigned a Time Zone for each of the two readers, (set to ‘1’...

  • Page 19: Programming Reference

    This section is a step-by-step reference guide to programming each of the parameters of the CRC200R. The order in which the procedures are described is based on the menu structure and is not the order in which the CRC200R should be programmed. Please refer to section 0 for an explanation of the installation programming procedure.

  • Page 20: Program Cards In 210 Mode

    5.2 Learn Cards This menu item allows you to add cards to the CRC200R by presenting them to a connected reader. Ensure that an appropriate reader is connected to the ‘Reader 1’ input of the CRC200R before starting the procedure.

  • Page 21: Learning Cards In Line Mode

    C a p t 2 n o cards should be captured at reader 1 and press This display indicates that CRC200R is waiting for a card to be L e a r n i n g presented to reader 1. Present a card to the reader.

  • Page 22: Learning Cards In 210 Mode

    C a p t 2 n o cards should be captured at reader 1 and press This display indicates that CRC200R is waiting for a card to be L e a r n i n g presented to reader 1. Present a card to the reader.

  • Page 23: Set Pin Code

    CRC200R USER GUIDE ISSUE 02 Display Action V e r i f y C a r d s Type the number of the card index against which the card to be C a r d I d x : verified is stored and press...

  • Page 24: Installer

    CRC200R USER GUIDE ISSUE 02 S e t P I N C o d e Type in the PIN number for PIN location 2 and press P i n 2 : x x x x x The screen will continue to increment up to the maximum PIN value S e t P I N C o d e of 9.
  • Page 25 CRC200R USER GUIDE ISSUE 02 Enter up to 3 digits to set the timeout for door 1 hold, and then press C o n f i g This is the time (in seconds) that door 1 can be held open for before D r 1 h l d : x x x >...

  • Page 26: Set Apb Mode

    Norpass2 must be enabled to be compatible with this operating mode. Also, each controller on the network must have a unique node number starting at 0. Operating mode ‘210’ can also be used in a standalone CRC200R controller where standard time zone features are not adequate for the application.

  • Page 27: Date/Time

    ‘APB Hours’ (1 to 3), which you can set in the same way. Note 1: When APB is active, anti-passback initialisation takes place when the CRC200R is powered up. This process may take several seconds to complete depending upon the number of cards in the memory.

  • Page 28: Timezones (Door Open Timezones When Set To '210')

    CRC200R USER GUIDE ISSUE 02 D a t e / T i m e Enter a number corresponding to the day of the week, with 1 = D a y : x Monday, 2 = Tuesday, etc. D a t e / T i m e...

  • Page 29: Card Format

    5.5.5 Card Format This sub-menu item is used to set the format of the card data that will be read to the CRC200R so that it can identify the card number to check. Please refer to Appendix B for help on identifying the required data.
  • Page 30 CRC200R USER GUIDE ISSUE 02 5.5.5.1 Clock & Data Format For an example of the values to enter for an ISO card number format, see Appendix B. Display Action C a r d F o r m a t Enter the number of digits on the card and press D i g i t s : x x Enter the number of digits used to represent the cardholder’s...

  • Page 31: Card Test

    This menu is for high level administrators only and must be used with care. When activated, all card records will be cleared from the CRC200R memory. Prior to using this feature, ensure that ‘Password Protection’ has been activated and a 4-digit password has been set (see section 5.5.1).

  • Page 32: Clear Events

    CRC200R USER GUIDE ISSUE 02 C l e a r C a r d s Press and carry out the following procedure: Enter the 4-digit password and press C l e a r C a r d s WARNING: All cards will be deleted from memory when you P a s s w o r d ? press ‘return’.

  • Page 33: Timezones (Available Only In Mode '210')

    CRC200R USER GUIDE ISSUE 02 5.8 Timezones (Available only in Mode ‘210’) This menu item is used for setting up the extended time zone features when in operating mode ‘210’. It is used in conjunction with ‘Access Levels’ (see section 5.9).

  • Page 34: Access Levels (Available Only In Mode '210')

    CRC200R USER GUIDE ISSUE 02 5.9 Access Levels (Available only in Mode ‘210’) This menu item is used for setting up the extended time zone features when in operating mode ‘210’. It is used in conjunction with ‘Timezones’ (see section 5.8).

  • Page 35: Crc200R Communications

    For real time output of card transactions or to enable the controller to be controlled via the software the CRC200R must be connected to a PC via the USB to RS485 converter provided. See the on screen help of the software for more information about the RS485 interface. Using the ‘Config’...

  • Page 37: Technical Specifications

    Card capacity: Up to 10,000 non-sequential cards on one controller Suitable readers: Nortech DualProx range, Nortech EM2100 proximity range, RH301 magnetic stripe, RH320 magnetic stripe/keypad combined, ASR603 proximity, MRC310 card capture reader and Hyper X long-range readers. Any industry standard reader giving Clock & Data or Wiegand output.

  • Page 39: Appendix A - Menu Structures

    CRC200R USER GUIDE ISSUE 02 Appendix A – Menu Structures Operating Mode Program Cards Learn Cards Verify Cards Set PIN Codes Config Installer Set APB Mode Clear Cards Date/Time Clear Events Door Open TZ Time Zones Card Format Access Levels...
  • Page 40 CRC200R USER GUIDE ISSUE 02 Operating Mode Program Cards Learn Cards Verify Cards Set PIN Codes Config Installer Set APB Mode Clear Cards Date/Time Clear Events Timezones Card Format Card test Line Mode Press to enter a menu item Press...

  • Page 41: Appendix B - Card Formats

    Wiegand Odd Bits: Wiegand Card Bits: Wiegand Card Loc: If you are in any doubt about the format of the cards that you wish to use, contact Nortech’s technical support team, who would be happy to help you identify the appropriate parameters.

  • Page 43: Appendix C - Card Record Sheet

    CRC200R USER GUIDE ISSUE 02 Appendix C – Card Record Sheet Date Date Note Index Card No. Cardholder Issued Returned (Lost, Stolen)
