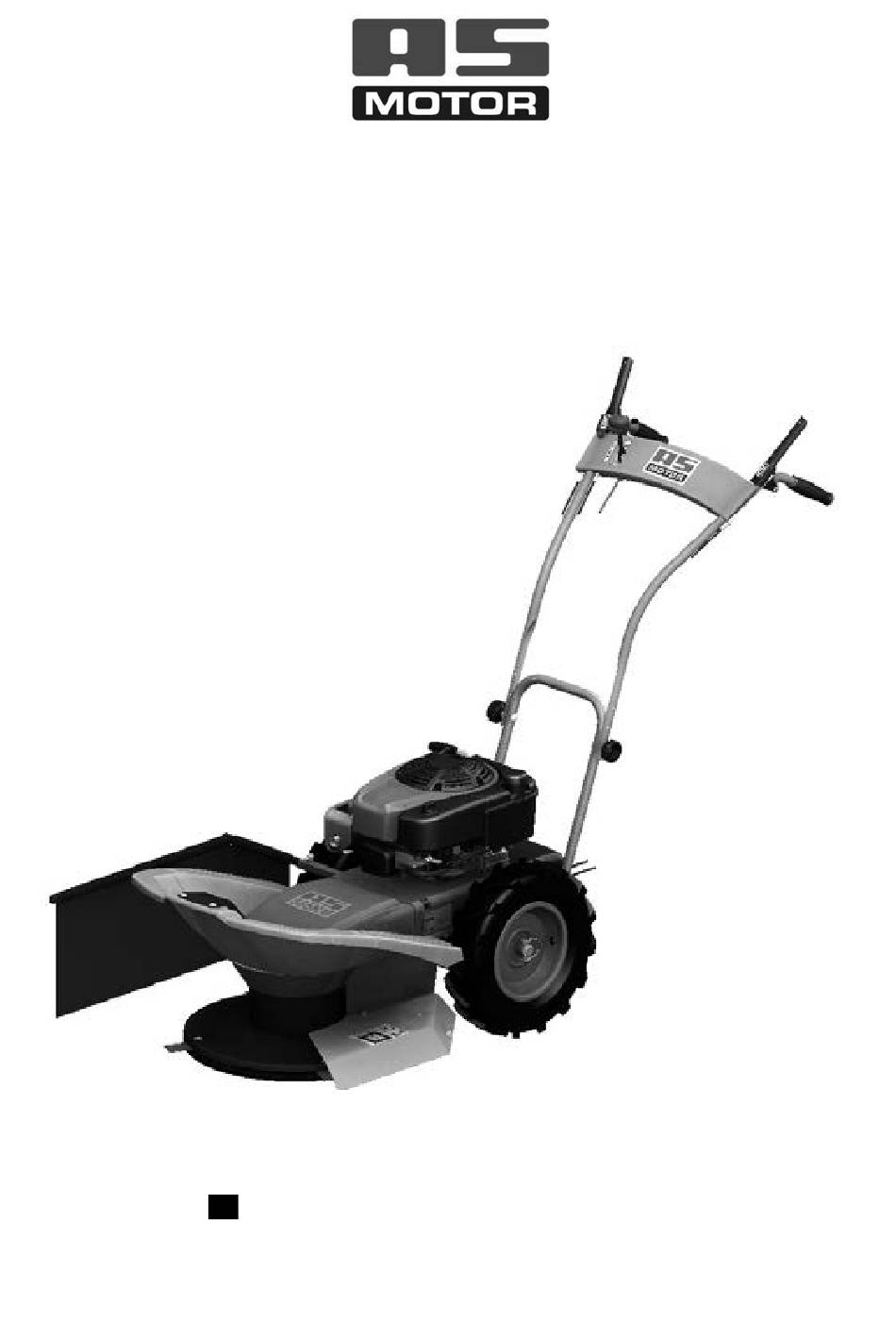

- Page 1 Instructions for use Brush cutter AS 565KM From the serial number: 026213050001 – Translation of the original instructions for use D-74424 Bühlertann Phone +49 7973 9123-0 www.as-motor.de...
- Page 3 AS 565KM Table of contents 1 Instructions for use 2 Pictures 3 EC declaration of conformity Basic information As part of the pre-sale servicing ask your dealer to unwrap the machine and give you a brief training on how to use it!
-
Page 4: Table Of Contents
English 1 Instructions for use Table of contents 1 Instructions for use 1.4.3.1 Cutting width..............9 1.1 Introduction..................5 1.4.3.2 Methods of stand cutting..........9 1.1.1 Basic warnings................5 1.4.3.2.1 Cutting problems..........9 1.2 Operation safety................5 1.5 Maintenance, servicing and storage..........10 1.2.1 Safety regulations..............5 1.5.1 Travelling wheels..............10 1.2.2 Noise and vibration values............6 1.5.1.1 Tyre pressure...............10 1.2.3 Safety pictograms..............6... -
Page 5: Introduction
AS 565KM 1.1 Introduction Dear Customer, we congratulate you on your purchasing decision. With the AS brush cutter you got a reliable machine of high quality, proven in practice and by time. We keep trying to further improve our machines. Everywhere where you want to cut grass of any height, weeds and shrubs – on meadows, in orchards, on horse pastures or on municipal plots –... -
Page 6: Noise And Vibration Values
English Never leave the engine running at the maximum engine speed or running idle for a long time while the clutches of the cutting disk drive and wheel drive are turned off. The machine drive parts could be damaged (V-belt, belt pulley, clutch pulley, etc.)! ... -
Page 7: Basic Information
Authorised machine use AS 565KM brush cutter is designed and manufactured according to the most current knowledge in the field of small garden and agricultural machinery. It is characterised by its easy handling, quiet, efficient and economy Briggs & Stratton engine, as well as by trouble-free maintenance.. -
Page 8: Description Of The Machine And Its Parts
1.3.2 Description of the machine and its parts AS 565KM (Pict. 5) brush cutter is built on a steel frame, to which all important parts of the machine are attached. All controls (1,2,4 and 18) are placed on the handlebars. Handlebars are attached to the frame with a bolted connection (3) and their height is adjustable into 3 positions. Handles(12) secure a firm grip and machine handling during work. -
Page 9: Putting The Machine In Motion
AS 565KM Slowly press the lever up to about two thirds of its travel, to start up the cutting disc and prevent the engine form turning off. After starting up the cutting disc, press the lever to the handle and hold firmly. -
Page 10: Maintenance, Servicing And Storage
English 1.5 Maintenance, servicing and storage The weight of the cutter requires two persons for carrying out its maintenance and adjustment. In order to be happy with our product in the long-term, it is necessary to give it adequate maintenance and servicing care. Regular maintenance reduces deterioration and ensures proper functioning of all of its parts. -
Page 11: Belt Transmission - Automatic Brake
AS 565KM Pay special attention when dismounting the blades. The cutting blades are sharp. Protect your hands with work gloves. The engine must be off and the end of the spark plug cable must be taken off! Proceedings: according Pict. 8 Hold the upper disc so that it does not spin and use tubular wrench n.16 to dismount the bolted connection of the blade. -
Page 12: Service Intervals
English 1.5.5 Service intervals Activity Before cutting In season Before storage Engine oil level check following the engine user manual Cleaning the engine air filter check every 10 hours Washing Removal of dirt and cut stand remains after each cutting Blades sharpening according to need Check the blades and their placing... -
Page 13: Storage
AS 565KM 1.5.7 Storage Before any longer storage (e.g. at the end of the season) clean any dirt or plant remains from the cutter. Prevent all unauthorised persons from accessing the cutter. Protect the cutter from wind but do not use airtight protection, which can cause higher corrosion. -
Page 14: Pictures
English 2 Pictures Place for holding at the back (frame U-tube) Side screen Dismounted disc cover Place for holding the machine at the front (cutting disc) Tilted handlebars in the package (transport position) Side screen holder Dismounted parts of lower cover Pict. - Page 15 AS 565KM Position STOP: Position MIN: Engine is not running. (position „1“) Engine is running at idle. (position „2“ turtle) ➢ Used for turning off the running engine ➢ Short work break ➢ Putting the machine out of service ➢...
- Page 16 English Pict. 14: Disc drive clutch roller - brake Pict. 13: Adjustment of the wheel drive tension rollers Pict. 15: V-belt track 1) Cutting disc drive V-belt 2) Gearbox drive V-belt 3) Wheel drive V-belt 4) Driving pulley (on the gearbox) 5) Driven gearbox (on the wheel axle)
- Page 17 AS 565KM Location on the machine Location on the machine Pict. 16: Safety pictogram Pict. 17: Safety pictogram Machine wheel drive Starting up the disc Number: (1) Location on the machine Pict. 18: Safety pictogram – Combined sticker Pict. 19: Safety pictogram – Arrow direction of turning...
-
Page 18: Ec Declaration Of Conformity
English 3 EC declaration of conformity EC declaration of conformity Manufacturer: AS-MOTOR GERMANY GmbH & Co. KG Address: Ellwanger Straße 15; D-74424 Bühlertann AS 565KM Product (machine) – type: from 026213050001 Serial number: Description: Machine type Engine Power Working width Brush cutter B&S 850 Series... - Page 20 AS-MOTOR GERMANY GmbH & Co. KG Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.de Professional technology for gardens and landscape Allmäher® Manoeuvrable meadow mower for extensive green area care. The Allmäher reliably shreds metre-high grass, undergrowth, and weeds, even on steep slopes and in impassable terrain. The cut material remains on the surface as a fertilizer, the bothersome raking does not take place.
