- Page 1 Manual EAG80 Dosing programs Anleitung EAG80_26_00_2017_03_28_GB Issue :28.04.2017 Program version as of C26.00 Before switching on the device or installing components, please carefully read through the manual to avoid malfunctions by wrong or incorrect operation or installation.
-
Page 2: Table Of Contents
Contents Property rights ______________________________________________________________________ 4 Description of the device _________________________________________________________ 5 Description of buttons _______________________________________________________ 5 Description of the display elements ___________________________________________ 6 Function of buttons ______________________________________________________________ 7 In weighing mode ___________________________________________________________ 7 In dosing menu / entry of components _________________________________________ 8 In menu or during input _____________________________________________________ 9 Function of LEDs ________________________________________________________________ 9 Menu structure _________________________________________________________________ 10... - Page 3 7.3.2 Connection of inputs _____________________________________________________________ 26 7.3.3 Connection of outputs ____________________________________________________________ 26 Commissioning EAG80 ___________________________________________________________ 27 Theoretical adjustment of scales _____________________________________________ 27 Input of time and date _____________________________________________________ 27 Settings for printers or large-size displays _____________________________________ 27 Settings for scales settling time ______________________________________________ 28...
-
Page 4: Property Rights
Property rights To avoid operating errors and to ensure a smooth operation of our products, the installation and operating instructions must always be accessible to operating personnel. These installation and operating instructions shall be treated as confidential. They shall only be used by authorized persons. -
Page 5: Description Of The Device

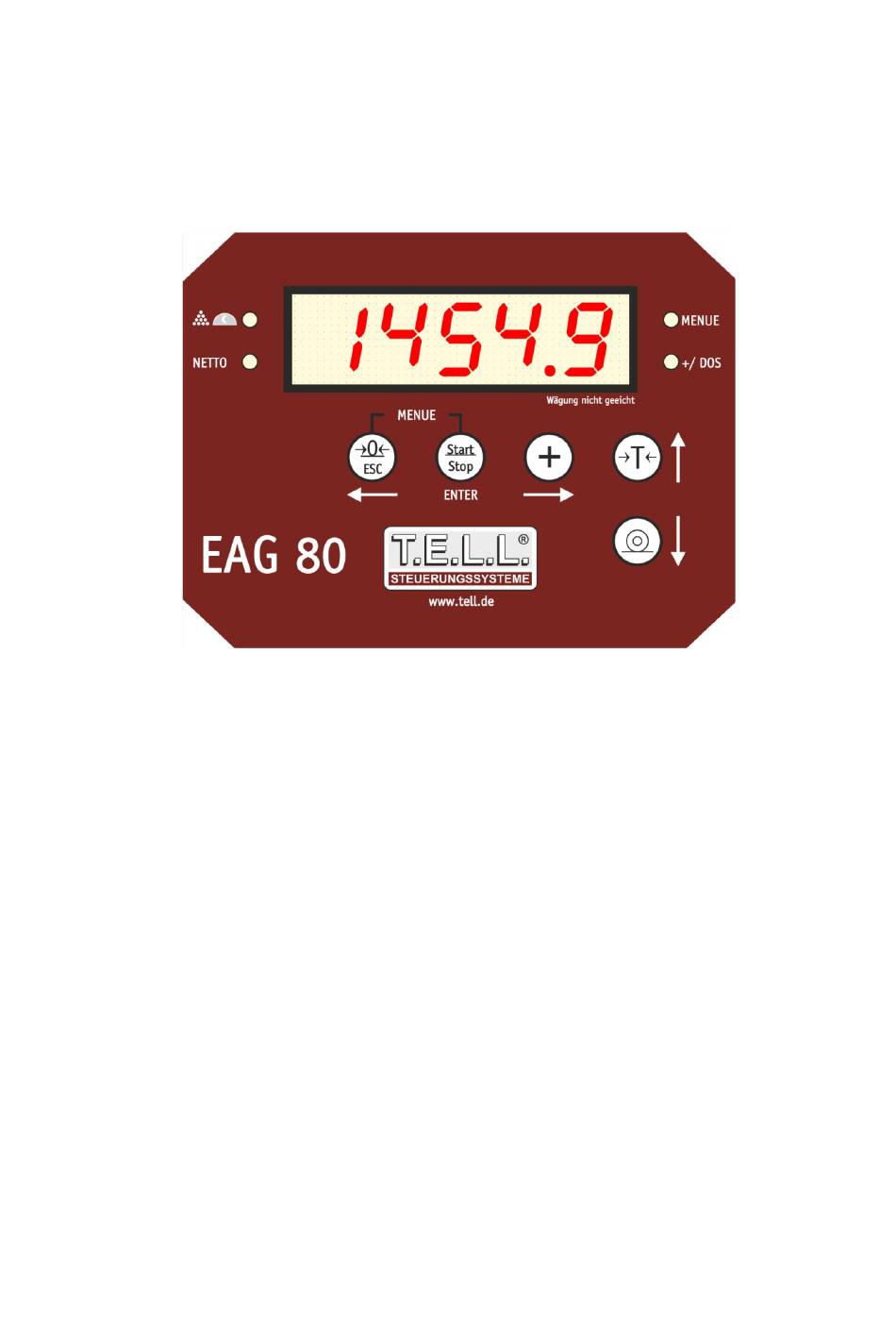

1 Description of the device 1.1 Description of buttons 1. Button 1 Button Zeroing / Button left arrow / Button ESC Start Stop 2. Button 2 Button „Enter“ 3. Button 3 Button for weight addition / Button right arrow 4. Button 4 Button tare / Button up arrow 5. -
Page 6: Description Of The Display Elements
1.2 Description of the display elements LED for display "sleep" LED for display of net weight LED for menu LED for addition mode / dosing programs active 5-digit display screen Total no. of pages: 30 PAGE 6 Anleitung EAG80_26_00_2017_03_28_GB Version 28.04.2017... -
Page 7: Function Of Buttons
2 Function of buttons 2.1 In weighing mode • Button 1 pushed briefly Selection of components and Discharge quantity presetting and Cancel program • Button 1 pushed longer Zero the scales (can be deactivated) Start Stop • Button 2 pushed longer Start program Start Stop... -
Page 8: In Dosing Menu / Entry Of Components
2.2 In dosing menu / entry of components • Button 1 pushed briefly Selection of components and Discharge quantity presetting left and Selection digit to the left • Button 3 pushed briefly Selection of components and Discharge quantity presetting right and Selection digit to the right Start Stop... -
Page 9: In Menu Or During Input
2.3 In menu or during input • Button 4 pushed briefly Navigate to the top and Increase the selected value • Button 5 pushed briefly Navigate downwards and Decrease the selected value • Button 3 pushed briefly Access to the submenu and Selection digit to the right •... -
Page 10: Menu Structure
4 Menu structure Start Stop To select the menu, simultaneously push button 1 and button 2 for longer. Then the menu items will appear. All menu items are listed below. You can navigate from one menu item to the next by pushing button 4 and button 5 Menu items can be selected with button 3 General settings... -
Page 11: Menu General Settings (Allge)
ALLGE 4.1 Menu General Settings ( Program ALL Ge ProG ⇑ ⇓ Time ⇑ ⇓ Date ⇑ ⇓ Year Jahr ⇑ ⇓ Button taste ⇑ ⇓ Input Einga ⇑ ⇓ Init Init ⇑ ⇓ Software version C9999 Total no. of pages: 30 PAGE 11 Anleitung EAG80_26_00_2017_03_28_GB Version 28.04.2017... -
Page 12: Program Prog
ProG 4.1.1 Program Selection of dosing/junior program Pro 1 Simple scales without dosing functions do 1 Filling 2 components do 2 2 dischargers do 3 Filling 1 component (Out 1). 1 discharger (Out 2) do 4 Filling 2 components, starting via input (In 1) do 5 2 dischargers, starting via input (In 1) do 6... - Page 13 do 17 Starting discharger 1 (Out 1) via input 1 (In 1) or start button with alarm contact (Out 2) Stop process via input 2 (In2) do 18 Filling 1 component (Out 2) as soon as weight is less than minimum weight do 19 Filling 1 component (Out 1) as soon as input 1 (In 1) is set do 20...
-
Page 14: Time Uhr
4.1.2 Time Input of time 4.1.3 Date Input of date JAhr 4.1.4 Year Input of year Taste 4.1.5 Button Select function of buttons Null 4.1.5.1 Zero button Aus = Zero button deactivated Ein = Zero button activated Zero button pushed longer - Scales are set to "0" Tara 4.1.5.2 Tare button Aus = tare button deactivated... -
Page 15: Init Init
IN 2 In 2 Activating / function input 2 Input 2 function deactivated rtArA Input 2 resets tare (only if tare button is activated) tArA Input 2 tares (only if tare button is activated) nuLL Input 2 has function of zero button INit 4.1.7 InIt Reset device to standard values... -
Page 16: Menu Interfaces (Schnt)
Schnt 4.2 Menu Interfaces ( Use of interface Schnt SE SC ⇑ ⇓ Transmission speed RS232 GA TI ⇑ ⇓ Function impulse large-size display GAINP ⇑ ⇓ Activate EAG Explorer for PC PCCOm ⇑ ⇓ SE SC 4.2.1 Use of serial interfaces Function of 1st serial interface (or of 2nd interface, if available) 4.2.1.1 CON 1 Function of 1st serial interface... -
Page 17: Ga Ti Ga Ti
Function for impulse large-size display Function deactivated InP 1 Impulse large-size display variant 1 InP 2 Impulse large-size display variant 2 PCCOM 4.2.4 PCCon Activate EAG80 Explorer for PC connection Total no. of pages: 30 PAGE 17 Anleitung EAG80_26_00_2017_03_28_GB Version 28.04.2017... -
Page 18: Menu Filter Settings (Filte)
fILte 4.3 Menu filter settings ( Filter selection FILte ⇑ ⇓ Filter speed ⇑ ⇓ Filter number of values FIL A ⇑ ⇓ Weight difference SPrun 4.3.1 Filter selection Here the weight slowdown can be activated Slowdown of scales deactivated (SF, FIL A and SPrun will be ignored) Slowdown of scales activated (Setting via SF, FIL A and SPrun) 4.3.2 Filter speed Here you determine the speed of the weight measuring. -
Page 19: Waage Waage
Waage WAAGE Display steps Waage AUFLo ⇑ ⇓ Weighing elements basic settings Stabe ⇑ ⇓ Set scales to zero nuLLp ⇑ ⇓ Weight factor FACTO ⇑ ⇓ Zero point adjustment 0-JUS ⇑ ⇓ Scales adjustment with weights JUST ⇑... -
Page 20: Dos P
4.5 doS P 4.5.1 FASS Input of maximum container weight 0 = off 4.5.2 rESt Input of tolerance in kg for residue alarm 0 = off 4.5.3 AZEIt Input of time in sec for leakage/filling alarm 0 = off 4.5.4 nZEIt Input of after-flow time for automatic after-flow measurement 0 = off 4.5.5 n Co1... -
Page 21: Operating The Device
5 Operating the device 5.1 Switching on the device 5.1.1 Switching on with mains power supply To switch on the device with mains power supply, it is sufficient to insert the plug into a normal 230V / 50 Hz socket. After starting up, the program version number appears and then the device is ready to use. -
Page 22: Error Messages
6 Error messages: FeLe1 6.1 Fele1 Invalid program entry Arest 6.2 Residual quantity The quantity in the mixing tank before the new mixing process is bigger than the programmed quantity. Afass 6.3 Maximum capacity The quantity to be mixed would be bigger than the entered maximum capacity of the mixer. A Net 6.4 Power supply alarm Power failure during the filling process. -
Page 23: Discharging Quantity Too Big Agros
Agros 6.7 Discharging quantity too big The quantity calculated for discharging is bigger than the quantity in the mixer. This can be the case when e.g. the total quantity from the mixer is to be discharged in several partial quantities. If the display unit finds the quantity in the mixer to be smaller than the quantity to be discharged, the alarm is triggered. -
Page 24: Serial Interface
Mainboard Serial interface 7.1.1 Serial Interface Here you can connect e.g. a large-size display. TX (terminal 6) = transmit line RX (terminal 7) = receive line Gnd (terminal 8) = ground line Total no. of pages: 30 PAGE 24 Anleitung EAG80_26_00_2017_03_28_GB Version 28.04.2017... -
Page 25: Connection Board
7.3 Connection board 1 = Connection to main board 2 = Connection weighing elements 3 = Connection input 1 and 2 4 = Fuse (1A fast) 5 = Relay 6 = Output Total no. of pages: 30 PAGE 25 Anleitung EAG80_26_00_2017_03_28_GB Version 28.04.2017... -
Page 26: Connection Of Weighing Elements
7.3.1 Connection of weighing elements Up to four weighing elements can be connected to devices without prewired plugs. The terminal block (1) has been prewired to the mainboard. Weighing elements T.E.L.L. TWE-1/1,5t/ 3t/ 3,4t/ 5t/ 10t/ 15t /VBB14/ VBB18 (4-wire connection cable, transparent): = Supply weighing element plus <->... -
Page 27: Commissioning Eag80
8 Commissioning EAG80 Steps 1 to 4 are normally already set. 8.1 Theoretical adjustment of scales Auflo Stabe Settings under 4.4.1 AuFLo and 4.4.2 StAbE Press and hold 0/ESC and Start/Stop simultaneously until ALLGE appears in the display. WAAGE AuFLo... -
Page 28: Settings For Scales Settling Time
8.4 Settings for scales settling time fILte Settings under 4.3 Menu filter settings ( FILtE Activating scales settling time Scales settling time deactivated (SF, FIL A and SPrun will be ignored) Scales settling time activated (settings via SF, FIL A and SPrun) 8.5 Test scales with highest possible weight JUST Settings under 4.4.6 JUSt... -
Page 29: Entry Of Required Functions
8.6 Entry of required functions ProG Settings under 4.1.1 Program Press and hold 0/ESC and Start/Stop simultaneously until ALLGE appears in the display ALLGE ProG Selection of dosing/junior program Pro 1 Simple scales without dosing functions do 1 Filling 2 components do 2 2 dischargers do 3... -
Page 30: Total No. Of Pages
9 Input of quantities for components and dischargers 12345 CO 1 CO 2 12345 Start Start Stop Stop 00000 00000 Start Start Stop Stop CO 1 CO 2 e.g.: 12345 Display then button CO 1 appears Start Stop then button O0000 appears Start...
