Summary of Contents for KMC Controls KMD-5220

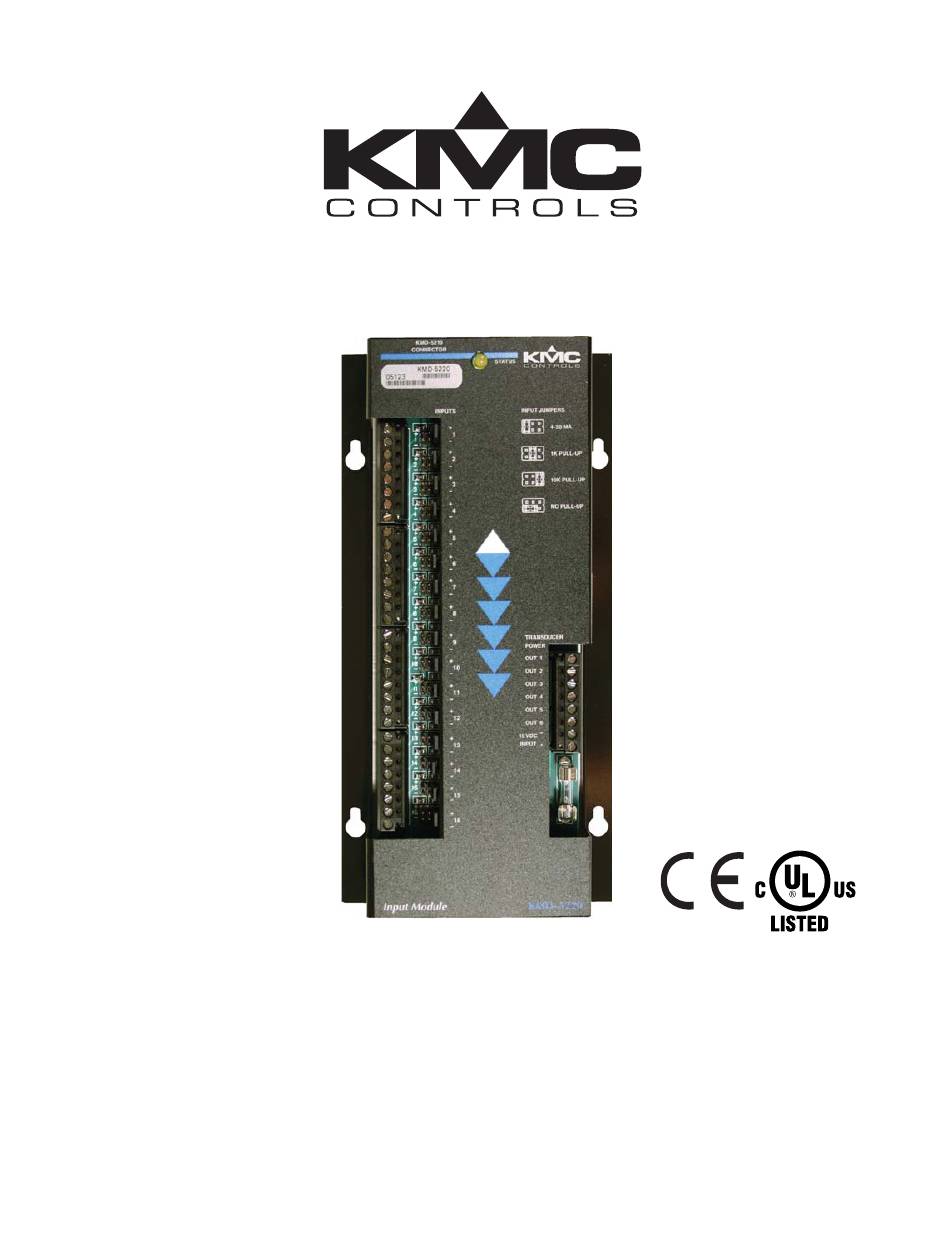

- Page 1 Installation and Operation Guide KMD-5220 Input Module For use with KMD-5210 883-019-05C Revision C...
- Page 2 Disclaimer The material in this manual is for information purposes only. The contents and the product it describes are subject to change without notice. KMC Controls, Inc. makes no representations or warranties with respect to this manual. In no event shall KMC Controls, Inc.
-
Page 3: Table Of Contents
KMD–5220 Installation and Operation Contents Section 1 Introduction Specifications ........................5 Accessories ..........................7 Safety considerations ......................8 Section 2 Installation Mounting ..........................9 Planning for input modules ....................9 Module installation ......................10 Connecting inputs ......................11 Section 3 Operation Status LED .......................... - Page 4 KMC Controls Revision C...
-
Page 5: Specifications
The module also provides a fused, auxiliary power terminals for connecting up to 6 external transducers. The KMD-5220 Input Module is designed to accept digital or analog inputs from active and passive sensor and control devices and process those inputs for use by the KMD-5210 LAN Controller. - Page 6 Introduction KMC Controls Specifications Regulatory UL 916 Energy Management Equipment listed CE compliant FCC Class B, Part 15, Subpart B SASO PCP Registration KSA R-103263 Dimensions Table 1-1 Dimensions Height (not shown) 0.98 in. 4.50 in. 9.00 in. 4.00 in.
-
Page 7: Accessories
KMD–5220 Installation and Operation Introduction Accessories Accessories Ribbon cables KMD-5660 6 inch (15 cm) ribbon cable KMD-5668 9 inch (23 cm) ribbon cable KMD-5661 14 inch (36 cm) ribbon cable KMD-5662 19 inch (48 cm) ribbon cable 24 inch (61 cm) ribbon cable KMD-5663 Revision C... -
Page 8: Safety Considerations
Safety considerations Safety considerations KMC Controls assumes the responsibility for providing you a safe product and safety guidelines during its use. Safety means protection to all individuals who install, operate, and service the equipment as well as protection of the equipment itself. -
Page 9: Installation Mounting
Planning for input modules To connect inputs devices to a KMD-5210 controller, use one or more KMD-5220 input modules. The KMD-5210 controller includes eight universal I/O ports for up to eight KMD-5220 input modules, eight KMD-5221 output modules or any combination of up to eight modules. -
Page 10: Module Installation
Input modules connect at position I/O Card #1. 2. Connect the ribbon cable to the KMD-5210 LAN Controller. Estimate the required cable length and select from one of the cables from KMC Controls. Ribbon cables on page 7 in the Accessories section. -
Page 11: Connecting Inputs
KMD–5220 Installation and Operation Installation Connecting inputs Connecting inputs The controllers include 16 universal inputs. Each input can be configured with software to receive either analog or digital signals. By using the optional pullup resistors, either passive or active devices may be connected to the inputs. For additional information, see in the Appendix C, Connecting Inputs and Outputs... - Page 12 Illustration 2-4 Typical input configurations Auxiliary transducer power The KMD-5220 Input Module has provisions for supplying power to six external transducers. These terminals are located on the lower right side of the module. The maximum output of all six outputs cannot exceed 1 ampere or the fuse will open.
-
Page 13: Operation
Operation Status LED SECTION 3 Operation This section provides general operating instructions for your KMD-5220 input module. Carefully review this information before operating the module. Once the input module is wired and powered up, operation is automatic. Status LED Auxiliary... -
Page 14: Auxiliary Power Fuse
The fuse must be replaced with a fuse of equivalent rating. Caution Do not use a larger rated fuse as this may result in damage to the KMD-5220. Power On/Off The input module does not use an On/Off switch or a power jumper. After the module is connected to a LAN controller and the LAN controller is powered, the module is also powered.
