Summary of Contents for Monstertech MTX BASE FRAME

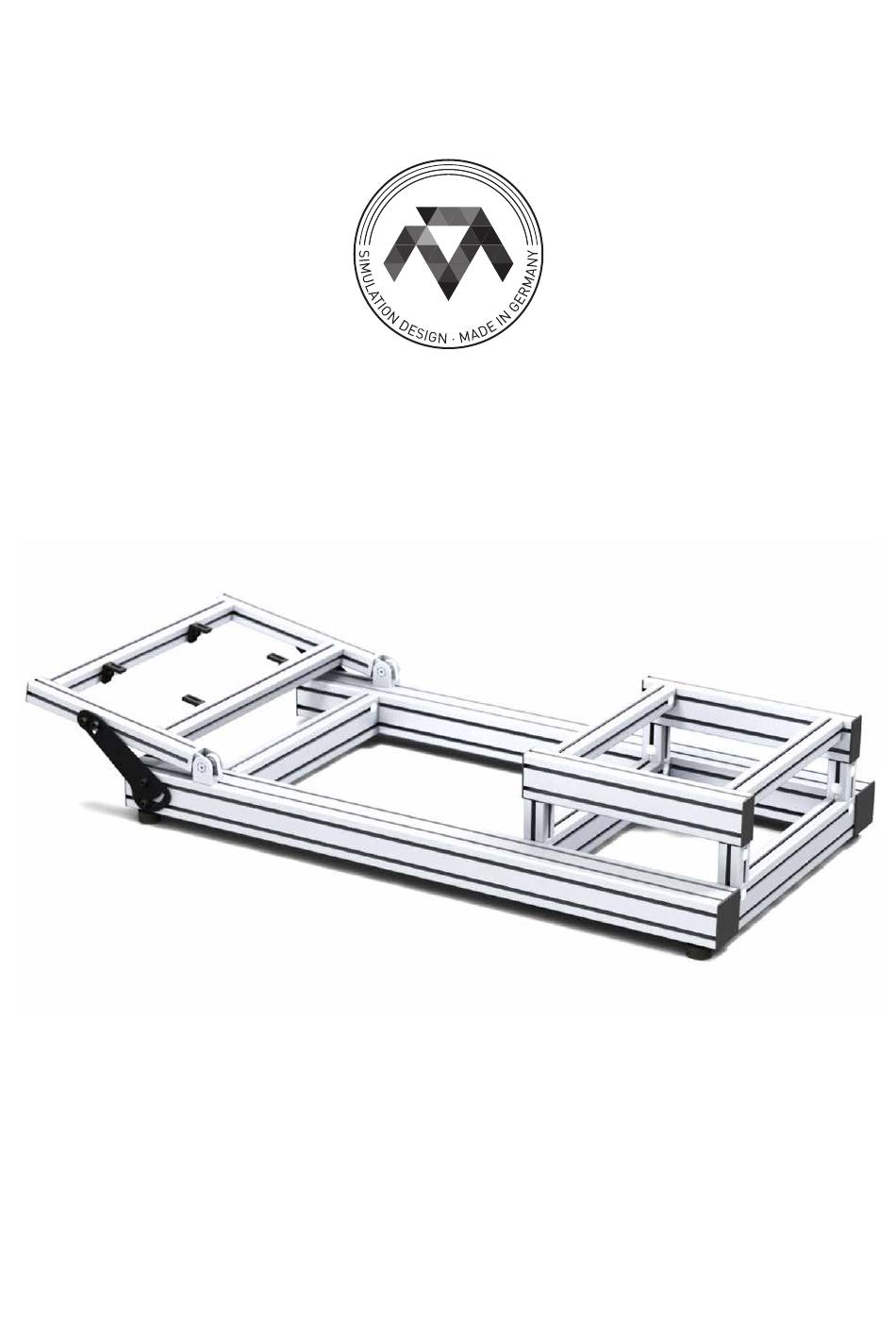

  • Page 1 MTX BASE FRAME Instruction Manual EN...

  • Page 2: General Information

    1.1 Before you start Before you start the MTX Base Frame assembly, we are going to look at some common as- sembly steps and often used parts, as well as required tools.
  • Page 3 MTX BASE FRAME INSTRUCTION MANUAL 1.1.2 Inserting T-Nut into Profile There are two ways to insert the M8 T-Nuts into the respective profile groove; refer to Figure 1 and 2 respectively. Figure 1: Slide in from side Figure 2: Rotate in from top...
  • Page 4 MTX BASE FRAME INSTRUCTION MANUAL 1.1.3 Universal Fastener Assembly The universal fastener assembly can be prepared the following way, so long as the T-Nut can be slid in from the side. One Universal Fastener Assembly is made up from one (1) M8x30 Hex Screw, one (1) T-Nut, and one (1) Universal Fastener.
  • Page 5 MTX BASE FRAME INSTRUCTION MANUAL 1.1.4 Angle Bracket Stud Removal Sometimes it might be necessary to break off the studs from angle brackets (if those are part of the product). This is best achieved by: 1. Inserting a flat-head screwdriver between the stud and the bracket, and then...
  • Page 6 For some assemblies the use of angle brackets is required. These are prepared by using two (2) M8x18 hex screws, two (2) washers, and two T-Nuts. Figure 5: Angle bracket assembly 1.1.6 Adjustment of Profile Feet The profile feet are installed on the MTX Base Frame or MTX Stand-Alone TV Figure 6: Profile feet...
  • Page 7 MTX BASE FRAME INSTRUCTION MANUAL 2 Overview 2.1 Completed MTX Base Frame Base - Overview Figure 8: Complete MTX base frame Use the above image as reference for the following MTX Base Fra- me assembly instructions.
  • Page 8 MTX BASE FRAME INSTRUCTION MANUAL Figure 9: Frame assembly - step 1 Figure 10: Frame assembly - step 2...
  • Page 9 MTX BASE FRAME INSTRUCTION MANUAL Figure 11: Frame assembly - step 3 Figure 12: Frame assembly - step 4...
  • Page 10 MTX BASE FRAME INSTRUCTION MANUAL Figure 13: Frame assembly - step 5 Figure 14: Frame assembly - step 6...
  • Page 11 MTX BASE FRAME INSTRUCTION MANUAL Figure 15: Frame assembly - step 7 Figure 16: Frame assembly - step 8...
  • Page 12 MTX BASE FRAME INSTRUCTION MANUAL Figure 17: Frame assembly - step 9 3.10 Figure 18: Frame assembly - step 10...
  • Page 13 MTX BASE FRAME INSTRUCTION MANUAL 3.11 Figure 19: Frame assembly - step 11 3.12 Figure 20: Frame assembly - step 12...
  • Page 14 MTX BASE FRAME INSTRUCTION MANUAL 3.13 Figure 21: Frame assembly - step 13 3.14 Figure 22: Frame assembly - step 14...
  • Page 15 MTX BASE FRAME INSTRUCTION MANUAL 3.15 Figure 23: Frame assembly - step 15 3.16 Figure 24: Frame assembly - step 16...
  • Page 16 MTX BASE FRAME INSTRUCTION MANUAL 4 Pedal Mount Figure 25: Pedal mount...
  • Page 17 MTX BASE FRAME INSTRUCTION MANUAL Figure 26: Pedal mount assembly - step 1 Figure 27: Pedal mount assembly - step 2...
  • Page 18 MTX BASE FRAME INSTRUCTION MANUAL Figure 28: Pedal mount assembly - step 3 Figure 29: Pedal mount assembly - step 4...
  • Page 19 MTX BASE FRAME INSTRUCTION MANUAL Figure 30: Pedal mount assembly - step 5 Figure 31: Pedal mount assembly - step 6...
  • Page 20 MTX BASE FRAME INSTRUCTION MANUAL Figure 32: Pedal mount assembly - step 5 Figure 33: Pedal mount assembly - step 6...
  • Page 21 MTX BASE FRAME INSTRUCTION MANUAL Figure 34: Pedal mount assembly - step 7 Your Completed MTX Base Frame Congratulations! You’re all done with your MTX Base Frame!
  • Page 22 MTX BASE FRAME INSTRUCTION MANUAL 5 MTX Extensions On the following pages you can see some additional components to customize your MTX Base Frame even further. Whether you’re into Sim Racing, Flight or Space Simulations, Mons- tertech offers the right Sim Rig extensions for your hobby.
  • Page 23 MTX BASE FRAME INSTRUCTION MANUAL 5.1 Wheel Mount 5.2 HOTAS Mount...
  • Page 24 MTX BASE FRAME INSTRUCTION MANUAL 5.3 Center Mount 5.4 Monitor Racing internal (Wheel Extension required)
  • Page 25 MTX BASE FRAME INSTRUCTION MANUAL 5.5 Triple Monitor Racing internal (Wheel Extension required) 5.6 TV/Monitor self-standing...
  • Page 26 MTX BASE FRAME INSTRUCTION MANUAL 5.7 TV/Monitor triple self-standing 5.8 Desk...
  • Page 27 MTX BASE FRAME INSTRUCTION MANUAL 5.9 Keyboard (Wheel or Desk Extension required)
  • Page 28 Das Rennsitzgestell ist zur Verwendung in Kombination mit einem Autositz und nur zur Verwendung im Innenbereich ausgelegt. Wir übernehmen keine Haftung für zweckentfremdete Benutzung. Bei Fragen zur Sicherheit oder Aufbau des Rennsitzgestells, wenden Sie sich an info@monstertech.de oder besuchen unsere Website unter www.monstertech.de.

  • Page 29: Warning Notices

    NOTE: Contains small parts not suitable for children under 3 years. Only suitable for children over 12 years and adults. All MONSTERTECH products are handmade and quality checked. The racing frame is only designed for inside usage in combination with a car seat.
