Akces-Med Ursus Active User Manual

Active wheelchair
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
URSUS ACTIVE
™
ACTIVE WHEELCHAIR

USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ursus Active and is the answer not in the manual?

Questions and answers

Summary of Contents for Akces-Med Ursus Active

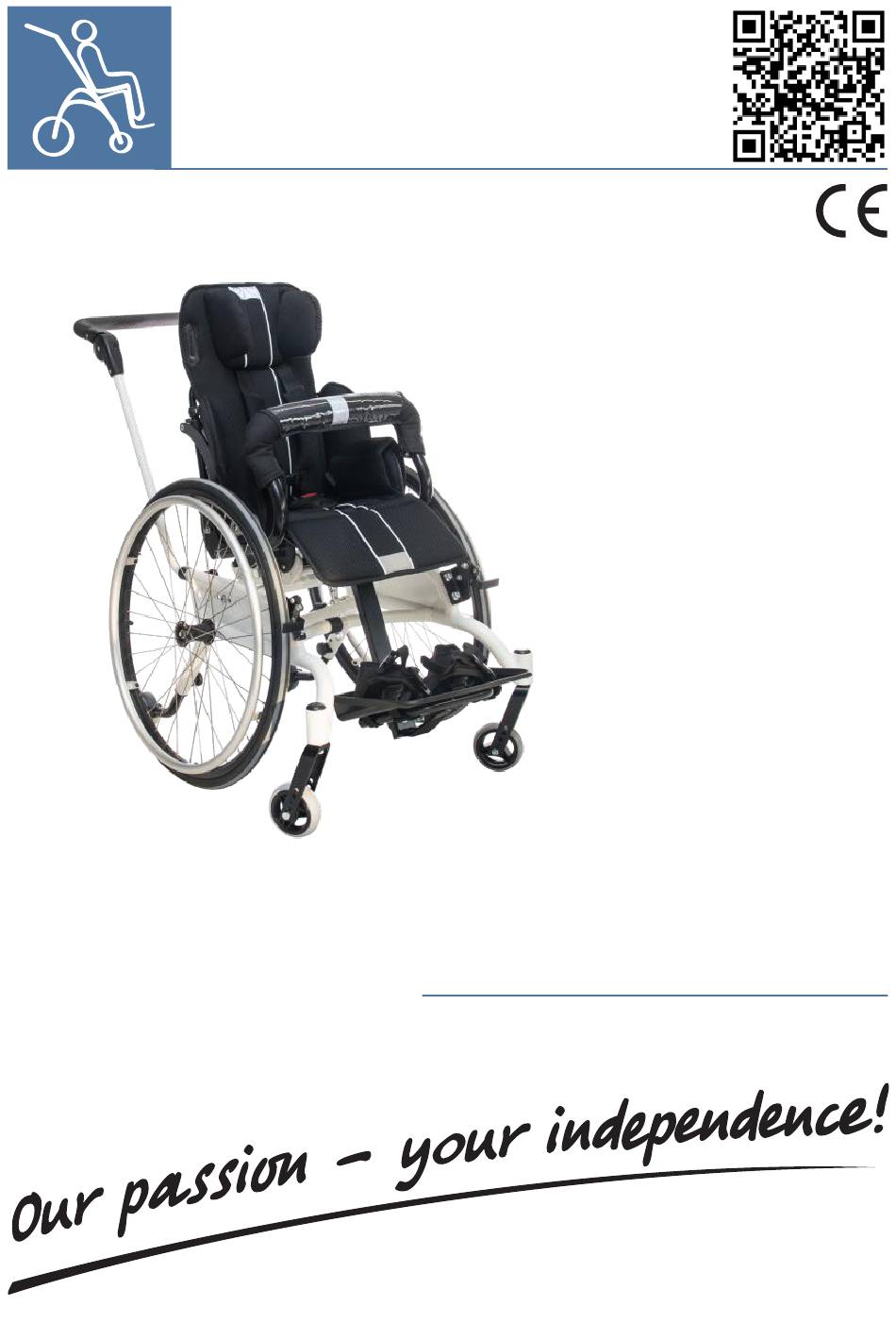

  • Page 1: User Manual

    URSUS ACTIVE ™ ACTIVE WHEELCHAIR USER MANUAL...
  • Page 2 CAUTION! Manufacturer takes responsibility for proper usage of the device only when the product was purchased from qualified Akces-Med employee or at specialized medical store! CAUTION! AKCES-MED Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning.

  • Page 3: Table Of Contents

    URSUS ACTIVE CONTENTS The purpose of user ......................5 2. Indications for use........................5 3. General characteristics of wheelchair................6 3.1. Standard equipment....................6 3.2. Additional equipment....................7 4. Size table..........................8 5. Description how to wheelchair.....................9 6. Description how to use wheelchair...................10 6.1 Wheels.........................11 6.2 Brakes..........................12 6.3 Push handle.......................13...
  • Page 4 Stable construction and extensive system of supports and belts makes children feel very confidently and safely in URSUS ACTIVE™. Large rear wheels are equipped with special strings that allow young patients to drive the wheelchair independently.

  • Page 5: The Purpose Of User

    URSUS ACTIVE THE PURPOSE OF USER The present user manual contains basic information which is essential for proper usage, preparation, maintenance, cleaning and guarantee conditions regarding URSUS ACTIVE™ wheelchair User manual should be kept in easily accessible place. It is designed for people who look after disabled children, and for both doctors as well as physiotherapists who operate the device.

  • Page 6: General Characteristics Of Wheelchair

    URSUS ACTIVE GENERAL CHARACTERISTICS OF WHEELCHAIR 3.1 Standard equipment 8. Adjustable pelvic pelottes 1. Adjustable handle 9.Footplate with 5 points feet stabilizing 2. Adjustable backrest belts equipped with heel support 3. Adjustable seat 10.Soft upholstery with spine load 4. Head support equipped with width adjustment reducing and ventilating function 5.

  • Page 7: Additional Equipment

    URSUS ACTIVE 3.2 Additional equipment USA_001 USA_003 USA_101 Thight abduction belts LED Lights Soft cover for tray USA_107 USA_113 USA_114 Trunk stabilizing belt Pelvic belt H Harness USA_121 USA_124 USA_125 Head-neck support Loins support 6 points safety vest USA_126 USA_127...
  • Page 8 URSUS ACTIVE USA_403 USA_134 USA_137 Narrowing pads 6 cm Narrowing pads 10 cm Stolik USA_410 USA_411 USA_414 Cotton headrest cover Cup holder Tray Plexiglas USA_426 USA_426 USA_502 USA_503 Lady’s bag Stylish spoke covers Bag DeLux USA_504 USA_507 USA_606 Hi-Low Frame Men’s bag...

  • Page 9: Size Table

    URSUS ACTIVE SIZE TABLE Unit Size Size Symbol Measurement Size Seat width [cm] 19-25 22-30 24-34 Seat depth [cm] 21-26 27-35 34-42 Back rest height [cm] 44-55 49-59 55-67 Back rest width [cm] Distance from seat to foot rest [cm]...

  • Page 10: Description How To Use Wheelchair

    URSUS ACTIVE DESRIPTION HOW TO MOUNT WHEELCHAIR Remember that wheelchair needs to be assembled. Manufacturer cannot assemble this wheelchair due to transportation issues. We will give you wheelchair which needs to be mounted. It consists of 2 parts: frame and seat . In order to use the wheelchair please follow these steps: STEP 1.

  • Page 11: Wheels

    URSUS ACTIVE CAUTION! If you hear a “click”, it means that seat is correctly mounted. In order to check if seat is placed in a correct place, raise it upwards. DESRIPTION HOW TO USE WHEELCHAIR 6.1. Wheels 6.1.1. Rear casters Wheelchair’s frame is equipped with 2...

  • Page 12: Brakes

    URSUS ACTIVE CAUTION! Slide out the casters adjustment maximum while using seat in horizontal position (bed function)! 6.1.2. Rear wheels There is a possibility to disassembled the rear wheels for easy transport and storage. To dismantle the rear wheels please push the pin placed on the middle of the wheel and take it out (fig.6, 7).

  • Page 13: Push Handle

    URSUS ACTIVE 6.3 Push handle Push handle is a standard equipment of the Ursus Active. If you want to install the push handle please place it into the holes located on the wheel chair’s frame (pic. 10). Put the knob into the frame’s hole and tighten it firmly (fig.11, 12).
  • Page 14 URSUS ACTIVE STEP 2. Adjust the tilt angle of the footrest at your discretion and tighten firmly the lever. Turn the lever clockwise as long as needed (fig.14). fig.14 6.4.2. Please follow these steps if it is necessary to change the tilt angle of footrest's plate: STEP 1.
  • Page 15 URSUS ACTIVE STEP 4. Fasten the belt by means of Velcro tape that is situated under the footrest's plate (fig.18). 6.4.2. It is possible to adjust the height of the footrest, please use Allen key so as to adjust it. Loosen two screws situated at the back of the footrest (fig.19), adjust...

  • Page 16: Seat

    URSUS ACTIVE CAUTION! Once the adjustment of tilt angle is done, it is necessary to tighten adjustable lever and screws which regulate the height of footrest. 6.5 Seat 6.5.1. Follow these steps so as to rearrange seat: STEP 1. Activate brakes (look point 6.2, page 12);...
  • Page 17 URSUS ACTIVE CAUTION! If you hear a “click”, it means that seat is correctly mounted. In order to check if seat is placed in a correct place, raise it upwards. 6.5.2. It is possible to adjust the depth of seat: loosen two regulating screws and four knobs that are placed under seat.

  • Page 18: Pelvic And Chest Pelottes

    URSUS ACTIVE 6.5.4. Tilt in space Tilt in space adjustment: fot 1. Loosen lever on the wheelchair’s frame. Seat up needed angle of the seat. Tighten the lever; fot 2. Put the nut no 1 max in highest position; fot 3. Put the nut no 2 max in lowest position.

  • Page 19: Head Support

    URSUS ACTIVE 6.6.2. As far as chest pelottes are concerned, it is possible to adjust their tilt angle. Chest pelottes are placed on frame with the aid of plastic handles. Side pelottes can be dismantled if necessary. If you wish to dismantle them, it is necessary to pull pelottes (fig.30).

  • Page 20: Safety Rail

    URSUS ACTIVE 6.8.2.It is also possible to adjust the tilt angle of backrest. In order to adjust it, loosen knobs that regulates backrest's tilt angle (this knob is situated behind backrest) and turn it anticlockwise (fig.33). Next, adjust backrest at your discretion and tighten fastening element clockwise.

  • Page 21: Wrench Cover

    URSUS ACTIVE fot.15 fig.36 fig.37 fot.15 CAUTION! Once 5 points belts are fastened, it is necessary pull them so as to check if: buckles do not become undone due to the pressure ź buckles do not move due to incorrect assembly ź...

  • Page 22: Additional Equipment

    URSUS ACTIVE ADDITIONAL EQUIPMENT Lady's bag USA_502 Bag DeLux USA_503 Men's bag USA_504 Bags are very capacious and have a lot of useful pockets. There is possibility to attach them to the stroller or worn them on the arm thanks to the long adjustable belt.
  • Page 23 URSUS ACTIVE USA_411 Cup holder So as to mount cup holder (fig.45) it is necessary to loosen clip and place it on handle's frame. Next, adjust proper position and tighten knob (fig.46). Cup can be mounted on frame in any place where handle's covers are applied fig.45...
  • Page 24 URSUS ACTIVE USA_411 H Harness Please follow these steps so as to mount H harness: STEP 1. Dismantle standard 5 points belts. fig.49 fot.15 STEP 2. Upper belts from H harness should be inserted into grooves from wheelchair's backrest (fig.49) and then insert them into clasps from backrest's back (fig.50).
  • Page 25 URSUS ACTIVE fig.53 fot.15 fig.54 fot.15 CAUTION! Each time before using the harness check whether: · The buckles do not unclip under the pressing force; · The buckles and belts do not move as a result of incorrect fastening. USA_130...
  • Page 26 URSUS ACTIVE USA_125 6 points vest Please follow these steps so as to mount 6 points vest: STEP 1. Put vest on the patient and then zip up both zipper and clamp situated at the front of the vest (fig.55-58); Adjust vest with the aid of Velcro tapes situated at the back of the vest (fig.
  • Page 27 URSUS ACTIVE fig.63 fot.15 CAUTION! Each time before using the harness check whether: · The buckles do not unclip under the pressing force; · The buckles and belts do not move as a result of incorrect fastening. Tray USA_403 Please follow these steps so as to mount tray: STEP 1.
  • Page 28 URSUS ACTIVE 7.10 USA_414 Tray Plexiglas Mount Tray Plexiglas on the wheelchair in the same way as Tray is mounted (-> look point 7.9, Tray, page 27); fig.68 fot.15 7.11 USA_003 Soft cover for tray Soft cover for tray is equipped with Velcro tapes (fig.69).

  • Page 29: The User Of Wheelchair

    Remember to use the product only with someone who is trained and knowledgeable. Do not forget to prepare both product as well as patient before using URSUS ACTIVE™ wheelchair! 8.1. Preparation of the patient Before using the product, it is essential to make sure that: ·...

  • Page 30: How To Use Wheelchair

    URSUS ACTIVE 8.2. How to use wheelchair 1. Before use it is necessary to: · Unfold the device; · Place the device on even ground; · Make sure that all parts are serviceable, correctly mounted and stable; · Block brakes;...

  • Page 31: Safety Rules

    SAFETY RULES CAUTION! URSUS ACTIVE™ wheelchair has to be used in compliance with guidelines in this user manual. It is highly important to consult either doctor or physiotherapist in order to make right decision concerning the choice of wheelchair and its size.
  • Page 32 URSUS ACTIVE · secure patient with the aid of elements such as vest, foot stabilizing belts, pelottes, abduction block, headrest. It is highly important to secure patient because it safeguards him/her from falling out. If abduction contracture occurs, it is recommended to use abduction block in order to prevent ulcers between knees.
  • Page 33 9 where you will find information regarding this issue. 1) AKCES-MED Sp. z. o. o sells products free from manufacturing defects or faults. 2) Manufacturer gives the purchaser 24-month guarantee from the date of purchase.

  • Page 34: Maintenance And Cleaning

    4. It is forbidden to clean upholstery with strong chemical agents such as solvent or caustic chemicals. CAUTION! Akces-MED. Sp z o. o takes no responsibility for damages caused by use of wrong clearing agent. 5. It is forbidden to soak upholstery during cleaning. Remember that upholstery has to be always dry before using.
  • Page 35 URSUS ACTIVE CAUTION! Remember that upholstery has to be always dry before using! Before using it is necessary to: · clean wheels; · check if base as well as wheels are correctly mounted; check if brake stops turning wheel ·...
  • Page 36 ORTHOPAEDIC DEVICES MANUFACTURER Akces-MED Sp. z o.o. Jasionka 955B 36-002 Jasionka tel. (17) 864 04 77 www.akces-med.com e-mail: export@akces-med.com Authorised Dealer Date of issue: 25.11.2013 The last update: 27.12.2016...
