Summary of Contents for ROLA-CHEM GLOBE FLOWCELL
-

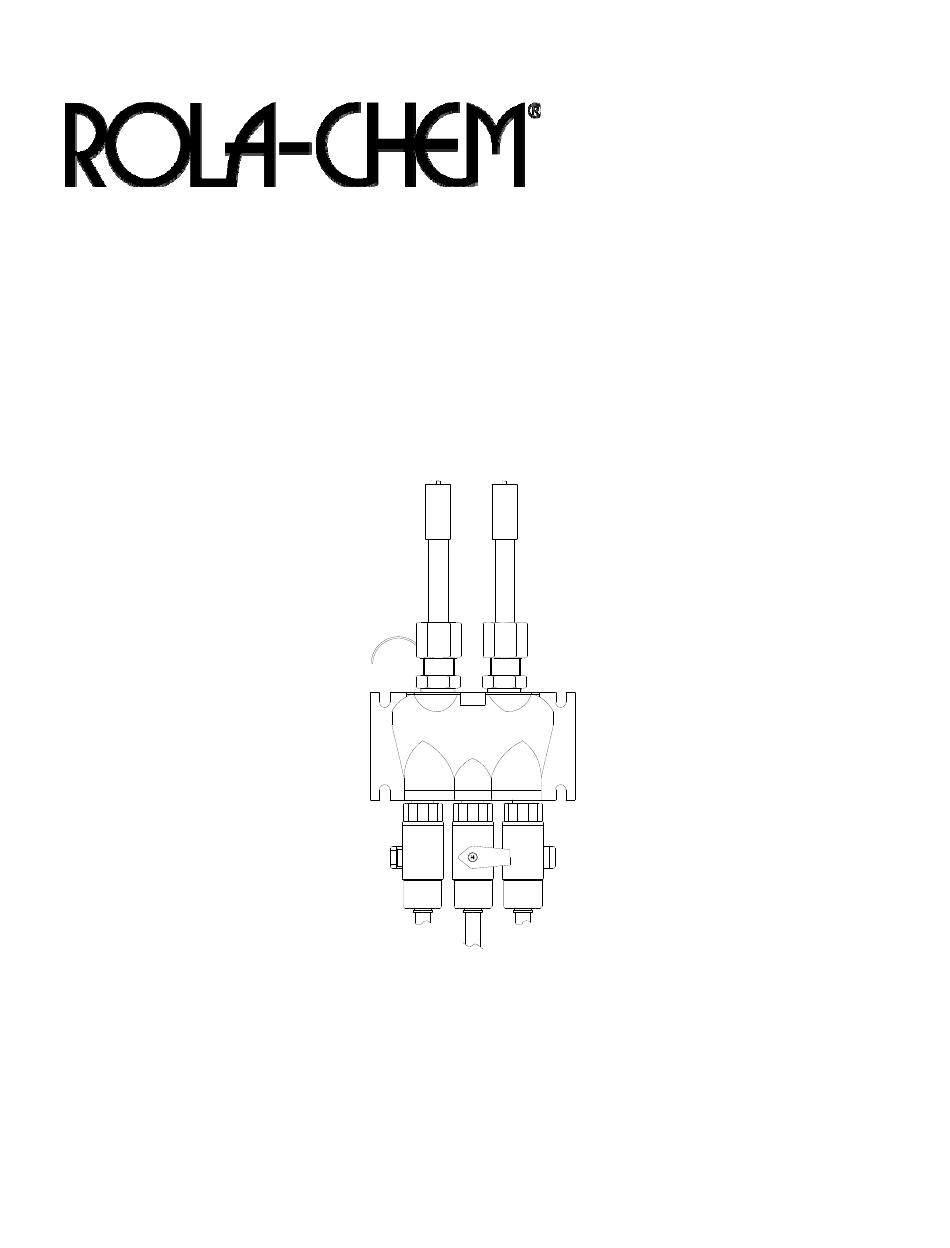

Page 1: Operating Manual
GLOBE FLOWCELL Operating Manual ® ROLA-CHEM Flowcell PN 550182 7/11/2019 page: 1 of 8... -
Page 2: Table Of Contents
Pre-mark hole locations for Flowcell mounting screws using the Flowcell. The Flowcell should not be above the controller unit or other equipment or electrical devices. Flowcell holes will accept #10 screws. ® ROLA-CHEM Flowcell PN 550182 7/11/2019 page: 2 of 8... - Page 3 Repeat the procedure for the ORP probe in the left probe fitting. 3.3 Install Flowcell Connections to the Pool Water System Turn off the pool's pump system during this procedure. ® ROLA-CHEM Flowcell PN 550182 7/11/2019 page: 3 of 8...
- Page 4 Flowcell process water to earth ground. Grounding/bonding the Flowcell helps to eliminate ground loop problems that could potentially damage probes and/or cause erroneous readings. ® ROLA-CHEM Flowcell PN 550182 7/11/2019 page: 4 of 8...
-
Page 5: Use Of Flowcell
4.2 Sampling Water Using Sampling Valve The center Valve on the Flowcell can be used to conveniently take water samples from the pool water. NOTE: Globe Flowcell valves should be closed when back flushing filter to prevent damage to probes. 5. Maintenance 5.1 Cleaning... -
Page 6: Troubleshooting
NOTE: It is recommended that an inline filter be used to help keep the Globe Flowcell (including probes) and flow switch free from debris. Debris may cause obstruction in flow switch and prevent the switch from functioning. -
Page 7: Parts List
ITEMS USED ON FLOWCELLS WITH 1/4 TUBING 550054 VALVE, SHUT-OFF, PVC-1/4 TUBE X 1/4 NPT 550027 TUBING, PE, 1/4 OD x 40 FT 550026 FITTING, 1/4 TUBE X 1/4 NPT ® ROLA-CHEM Flowcell PN 550182 7/11/2019 page: 7 of 8... -
Page 8: Warranty And Service
This warranty does not apply to any product damage caused by improper use, accident, misuse, improper line voltage, fire, flood, lightning, earthquake, other acts of ® nature, or if product was altered or opened by anyone other than qualified ROLA-CHEM personnel. All expendable items (tubing, etc.) are not covered under this warranty.
