Kanguru BioSlider II
User Manual
Trademarks and/or registered trademarks are the property of their
respective owners:
The information presented in this publication has been carefully prepared and is
believed to be correct at the time of publication. However, no responsibility will be
assumed for any inaccuracies. Specifications are subject to change without notice.
1
Advertisement
Summary of Contents for Kanguru BioSlider II

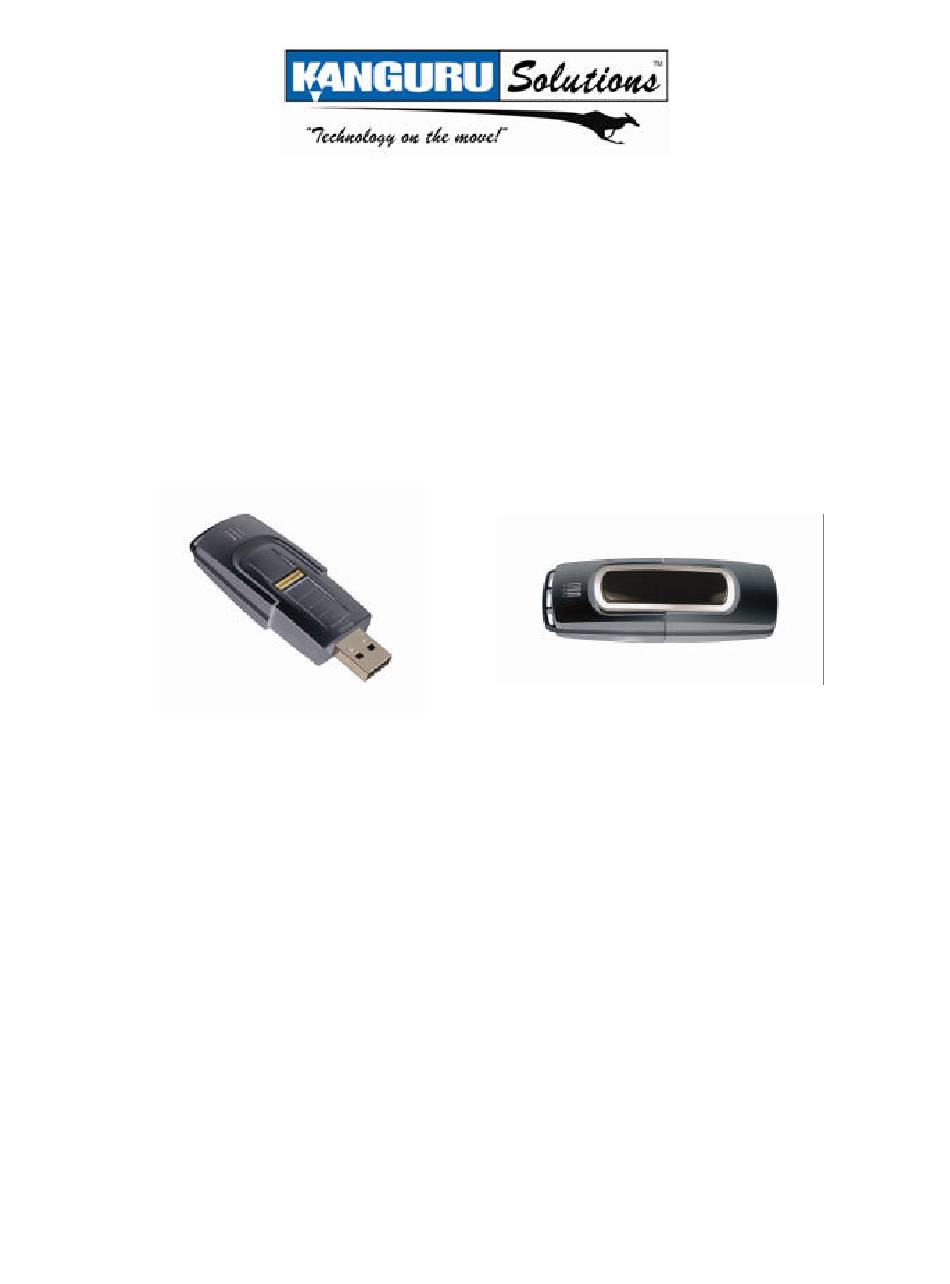

- Page 1 Kanguru BioSlider II User Manual Trademarks and/or registered trademarks are the property of their respective owners: The information presented in this publication has been carefully prepared and is believed to be correct at the time of publication. However, no responsibility will be...
- Page 2 1 year from the date of purchase. The Hard Drive installed in the QS2 is covered for 3 years. This warranty does not apply if, in the judgment of Kanguru Solutions, the product fails due to damage from handling, accident, abuse, misuse, or if it has been used in a manner not conforming to the product’s instructions, has been modified in...
- Page 3 Table of Contents Chapter 1: Introduction………..…………………………………………………...4 Chapter 2: Installation Guide……..………………………………………………...6 Chapter 3: Starting the BioSlider II……………………………………………….10 Chapter 4: Recovery…………………………………………………………….….18...
-
Page 4: Chapter 1: Introduction
Weight: Approximately 19g Available Capacities: 256MB, 512MB, 1GB, 2GB, 4GB, and 8GB. The Kanguru BioSlider II is one of the most secure and developed data storage devices on the market. It utilizes leading-edge biometric technology, and a user can only access the hidden secure files upon providing his/her identity that is approved by the scanner’s authentication. - Page 5 E. Do not paint the BioSlider II. Paint will clog the parts and prevent proper operation F. On the side of the BioSlider II is a small dipswitch, which allows you to protect data from accidental erasure. The driver will not allow copying to or erasing of the contents on the drive.
-
Page 6: Chapter 2: Installation Guide
No driver installation is required for Window s ME, 2000 or XP operating systems as Windows has built-in drivers to support the BioSlider II. Plug the BioSlider II into a USB port and it will be recognized by the system. Double click “My Computer” on the desktop;... - Page 7 Click “Stop” in the Unplug or Eject Hardware Window. Select “USB Mass Storage Device” and click “OK” Click “OK” and remove BioSlider II...
- Page 8 Make sure the LED is not flashing before removing the BioSlider II. If you remove the BioSlider II while the LED is flashing, it could result in data loss and damage to the file s and damage to the BioSlider II itself.
- Page 9 Make sure the LED is not flashing before removing the BioSlider II. If you remove the BioSlider II while the LED is flashing, it could result in data loss and possible damage to the files and the disk itself.
-
Page 10: Chapter 3: Starting The Bioslider Ii
To obtain the best result, select the section of your finger which will present unique, clear rib and valley patterns . Step 1. Place your finger towards the top of the BioSlider II; close to the USB connection... - Page 11 Step 2. Slide your finger down towards the other end of the BioSlider II Step 3. Apply just enough pressure with your finger so as to obtain a sharp image by the scanner. It is highly recommended to use the index finger, as it will present the be st fingerprint image.
- Page 12 “level of security” from low to high. Users can decide the degree of complexity when the BioSlider II identifies the user ’s fingerprint image. This will can increase the print complexity and therefore security at the risk of higher false negatives rates.
- Page 13 7. A green dot will be shown on the appropriate finger after the enrollment is completed. Click the “X” to exit the enrollment. It is recommended to equip the BioSlider II with fingerprint images as well as password functions. The password function will act as secondary access option.
- Page 14 Unlock USB BioSlider II: Accessing the Secure Partition: 1. Right click the “Red Fingerprint” icon and select “Open”. 2. Click on the ‘Kanguru-Pass’ menu item. 3. Slide your finger so the sensor can read your fingerprint.
- Page 15 4. Access to the secure encrypted drive will be visible once the correct fingerprint or rescue password is entered. If window does not automatically appear, please navigate to the ‘My Computer ’ Screen to access the secure drive. Note: Drive Letters May be different 1.
- Page 16 “Yes” if you wish to delete the fingerprint. It is highly recommended have at least one fingerprint enrolled on the BioSlider II. Handling and Cleaning Procedure s The fingerprint sensor must to be protected against any direct contact with metal objects, such as keys.
- Page 17 Chlorine based cleaners will not necessarily affect the functionality of the finger print sensor; however they can discolor the BioSlider II and could damage the circuitry surrounding the fingerprint sensor. Do NOT use any solvents, such as acetone, paint thinner, turpentine, etc.
-
Page 18: Chapter 4: Recovery
Chapter 4: Recovery If the BioSlider II sensor or the Flash storage itself is damaged, you can use the Recovery tool to restor e the unit to its factory default settings. Running the Recovery program will result in all data or files being erased in the BioSlider II All data on the BioSlider II will be deleted during the execution of this procedure . - Page 19 10. Click “OK” to confirm BioSlider II recovery. All files on the drive will be deleted. 11. Follow the on-screen instructions to complete the Recovery process. You will be required to un-plug and re-plug your BioSlider II. Recovery Disk performs a basic level of format on your BioSlider II , erasing all...
- Page 20 Tech Support If you experience any problems installing your Kanguru BioSlider II or have any technical questions regarding any of our products, please call our tech support department. Our tech support is free and available Monday thru Friday, 9am to 5pm EST.
