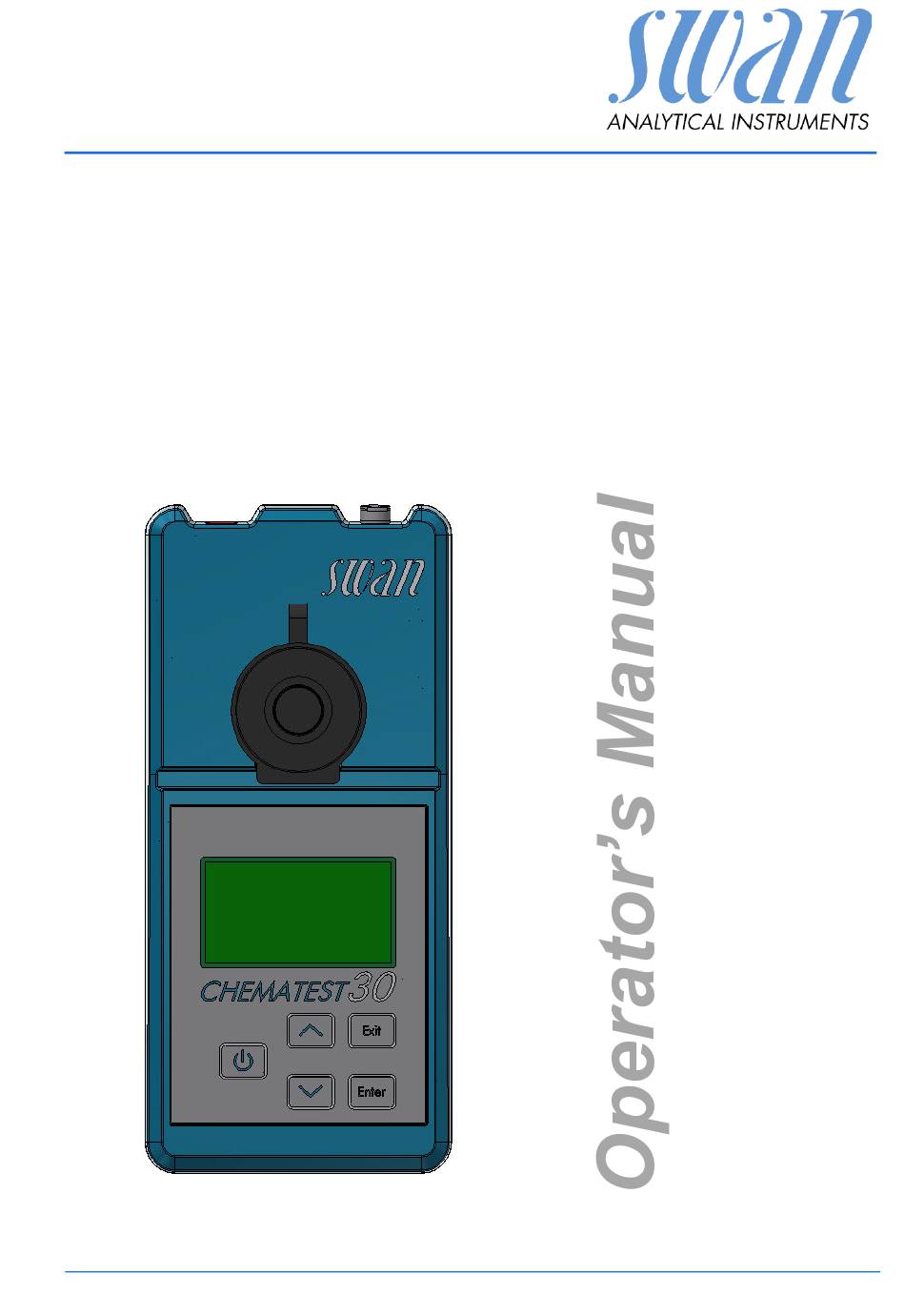

- Page 1 Chematest 30 Version 1.00 and higher A-96.730.101 / 100519...
- Page 2 SWAN representative, or the manufacturer: SWAN ANALYTISCHE INSTRUMENTE AG Studbachstrasse 13 8340 Hinwil Switzerland Internet: www.swan.ch E-mail: support@swan.ch Document Status Chematest 30 Operator’s Manual Title: A-96.730.101 Revision Issue November 2018 First edition © 2019, SWAN ANALYTISCHE INSTRUMENTE AG, Switzerland, all rights reserved...
-
Page 3: Table Of Contents
Chematest 30 Table of Contents Safety Instructions ........ - Page 4 Chematest 30 Part Numbers ........
-
Page 5: Safety Instructions
Chematest 30 Safety Instructions Chematest 30 – Operator’s Manual Safety Instructions For safe instrument operation, you must read and understand the instructions in this manual. Warning notices The symbols used for safety-related notices have the following meaning: WARNING Severe injuries or damage to the equipment can occur if such warnings are ignored. - Page 6 Chematest 30 Safety Instructions Reagents WARNING Health hazard For safe handling of the reagents, you must read and under- stand the corresponding Material Safety Data Sheets (MSDS). These can be downloaded from www.swan.ch. Electronics CAUTION Observe the following instructions during operation and when charging the instrument: ...
-
Page 7: Parts And Controls
Chematest 30 Parts and Controls Parts and Controls 2.1. Instrument Overview Charging socket Keypad Cuvette adapter Cuvette cap Display Cuvette A-96.730.101 / 100519... -
Page 8: Keys
Chematest 30 Parts and Controls 2.2. Keys POWER to power on or off the instrument ARROW UP to move up in a menu list and to increase digits ARROW DOWN to move down in a menu list and to decrease digits... -
Page 9: Display
Chematest 30 Parts and Controls 2.3. Display Once the instrument has started up, the main menu is displayed. The main menu is organized as follows: Main Menu Free chlorine Comb. Cl 1 cuv. pH Phenol red Method Catalogue Menu Quick start list Provides quick access to the most important methods. -
Page 10: Initial Setup
The user can choose between two types of method guidance: Expert mode inactive (default setting): In this mode, the Chematest 30 guides the user step-by-step through each measurement. The user has to confirm each step before the next step is displayed. -
Page 11: Optional: Set Up A Fixed Quick Start List
Chematest 30 Initial Setup 3.5. Optional: Set up a fixed quick start list By default, the instrument is configured to display the last three methods selected from the method catalogue [B] in the quick start list [A]. The list is automatically adjusted every time a method is se- lected from the method catalogue. -
Page 12: Measuring
Chematest 30 Measuring Measuring 4.1. Basic Rules for Photometric Determinations The precision and repeatability of a photometric determination de- pends greatly on the operator's technique. Please observe the fol- lowing rules: Always use clean utensils Residues from previous measurements can falsify the results. All utensils such as syringes, cuvettes or similar and the cuvette cap must be rinsed with clean water after each measurement. -
Page 13: How To Use Reagents
To dispense the necessary number of drops, hold the bottle at a 45° angle. Before proceeding with the measurement, make sure that the reagents are well mixed with the sample. The Chematest 30 is calibrated against Swan's OXYCON reagents. Accuracy may suffer severely, when reagents from other sources are used. -
Page 14: Notes On Individual Methods
Combined The method catalogue of the Chematest 30 contains two options for measuring combined chlorine: with one cuvette or with two cu- chlorine vettes. Apart from the fact that one or two cuvettes are used, the two methods are identical. -
Page 15: Performing A Photometric Measurement
Chematest 30 Measuring 4.4. Performing a Photometric Measurement WARNING Health hazard For safe handling of the reagents, you must read and under- stand the corresponding Material Safety Data Sheets (MSDS). These can be downloaded from www.swan.ch. Explanation of The basic procedure is largely the same for all photometric mea- surements and is briefly outlined below. - Page 16 Chematest 30 Measuring Example: Step 1: Zero measurement Measurement of Free chlorine Free chlorine free chlorine Fill 10 ml of sample into Place the adapter in a cuvette. Dry outer part the Chematest and and place it in the adapter.
- Page 17 Chematest 30 Measuring Step 3: Display of the results Pressing [Enter] saves the Free chlorine measurement in the data history The measurement is initially 0.26 saved without ID and user. NOTICE: Pressing [Exit] <Enter> to save discards the measurement.
-
Page 18: Automatic Shutoff
Chematest 30 Measuring 4.5. Automatic Shutoff If the instrument is waiting for a user input (e.g. if the measurement result is displayed) and no key is pressed for 10 minutes, the instru- ment shuts off automatically to save power. The automatic shutoff has the same effect on the saving of measurement results as pressing the [Exit] key. -
Page 19: Recalling Stored Measurement Data
Chematest 30 Recalling Stored Measurement Data Recalling Stored Measurement Data Data history Previous measurements can be displayed under the menu item <Menu> / <Data Storage> / <Data History>. Scrolling Press the ARROW DOWN and Data History through the ARROW UP keys to scroll through Date, Time 20.03.19 07:59... -
Page 20: Maintenance
Chematest 30 Maintenance Maintenance 6.1. Photometer Verification The verification kit contains two reference cuvettes (labeled “Low” and “High”) with certified reference absorptions of approximately 0.3 and 1.5 and an additional cuvette for zero point determination. The exact values are specified in the enclosed calibration certifi- cate. -
Page 21: Cleaning
Chematest 30 Maintenance 6.2. Cleaning Outside of If reagents drip onto the housing, wipe them off quickly with a soft cloth moistened with water. the housing Photometer The photometer compartment can be easily cleaned if water or re- agents have been spilled. Turn the unit to the rear, loosen the two compartment screws [A] and remove the cover [B]. -
Page 22: Setting Time And Date
Chematest 30 Maintenance 6.3. Setting Time and Date The correct setting of the clock is important for the identification of the stored measurements. It is therefore recommended to check the date and time setting regularly. The time and date can be set under the menu item <Menu>/ <Maintenance>/<Set Time>. -
Page 23: Troubleshooting
Chematest 30 Troubleshooting Troubleshooting This chapter contains some hints to facilitate troubleshooting. For detailed information on handling and cleaning parts, see Mainte- nance, p. 18. For detailed information on programming the instru- ment, see Menu Explanations, p. 7.1. Device Errors When this symbol is displayed at the top of the screen, a device er- ror has occurred. -
Page 24: Errors During Measurement
Chematest 30 Troubleshooting 7.2. Errors During Measurement Measurement Error message: Operation not possible! Consult the manual. cannot be Possible cause Corrective action started See Device Errors, p. Error E002, E003 or E004 is present Zero measure- Error message: Operation not possible! Signal out of range. -
Page 25: Menu Explanations
Chematest 30 Menu Explanations Menu Explanations Selecting <Menu> on the main screen displays the following sub- menus: Menu 1 Data Storage Menu 2 Diagnostics Menu 3 Maintenance Menu 4 Settings The functions and settings of each menu are explained in the fol- lowing sections. -
Page 26: Diagnostics
Advertising: The instrument is searching for other devices. Connected: A connection with another device has been established. Hardware address of the Chematest 30, which serves as a unique identification feature during Bluetooth communication. Fw ver Firmware version of the Bluetooth module. -
Page 27: Maintenance
Chematest 30 Menu Explanations 3 Maintenance 3.1 Simulation For test purposes a measurement can be made with one or both LEDs on. The results are displayed as raw values in volts. In case of problems in the field, Swan Support may ask for these values. - Page 28 Data History Completely Cal. + Ver.: Deletes the user calibration of all electrodes (not relevant for Chematest 30) and all recorded verification measurements. All other values are kept in memory. Data History: Deletes all recorded measurements. All other values are kept in memory.
- Page 29 Chematest 30 Menu Explanations Load Firmware Initiates a firmware upload. NOTICE: Firmware updates should be done by instructed service personnel only. Load Firmware Expert mode Here you can choose between detailed instructions and expert mode for fast workflow. Expert Mode...
- Page 30 Chematest 30 Menu Explanations 4.5 Bluetooth Bluetooth Activates the Bluetooth connection to connect to an external app (not yet available). Bluetooth Active Inactive A-96.730.101 / 100519...
-
Page 31: Part Numbers
Chematest 30 Part Numbers Part Numbers 9.1. Reagents Reagent sets Part no. Product name Methods Free chlorine A-85.590.200 Oxycon Pool pH (phenol red) Free chlorine A-85.590.300 Oxycon Chlor Total chlorine Combined chlorine Free chlorine A-85.590.400... -
Page 32: Accessories
Description A-85.153.580 Veri-Kit Transmission 9.3. Spare Parts and Consumables Part no. Description A-70.065.204 Carrying case for Chematest 30 A-70.065.630 Cuvette adapter with cap A-70.065.631 Glass cuvettes (10-pack) A-70.065.633 Spare part set consisting of: 1 dropper bottle 125 ml 3 disposable syringes 10 ml ... -
Page 33: Product Description
Chematest 30 Product Description Product Description 10.1. List of Supported Methods Photometry The Chematest 30 supports the following photometric methods: Method Range Issued values Displayed Chlorine Free chlorine 0–10 ppm Free chlorine ppm or mg/l Total chlorine 0–10 ppm... -
Page 34: Instrument Specification
Chematest 30 Product Description 10.2. Instrument Specification Housing IP67 rated Power supply Rechargeable lithium-ion battery. Only charge the instrument using a standard type A USB socket and the supplied USB cable. Protect from heat and splash water during charging (not IP67). -
Page 35: Scope Of Supply
10.3. Scope of Supply Carrying case 2 glass cuvettes 10 ml syringe Blister pack for reagent Dropper bottle for rinsing bottles water Chematest 30 Brush for cuvette cleaning USB charging cable (located Wipes for cuvette cleaning under the Chematest 30) A-96.730.101 / 100519... -
Page 36: Regulatory Information
Chematest 30 Regulatory Information Regulatory Information This product contains a third party Bluetooth module, which has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. Contains FCC ID: T9JRN4020 This product meets all requirements of the relevant EU directives. -
Page 37: Notes
Chematest 30 Notes Notes A-96.730.101 / 100519... - Page 38 Chematest 30 Notes A-96.730.101 / 100519...
- Page 39 Chematest 30 Notes A-96.730.101 / 100519...
- Page 40 Chematest 30 SWAN is represented worldwide by subsidiary companies and distributors. cooperates with independent representatives all over the world. SWAN Products Analytical Instruments for: High Purity Water Feedwater, Steam and Condensate Potable Water Pool and Sanitary Water Cooling Water Waste Water and Effluents Made in Switzerland A-96.730.101 / 100519...
