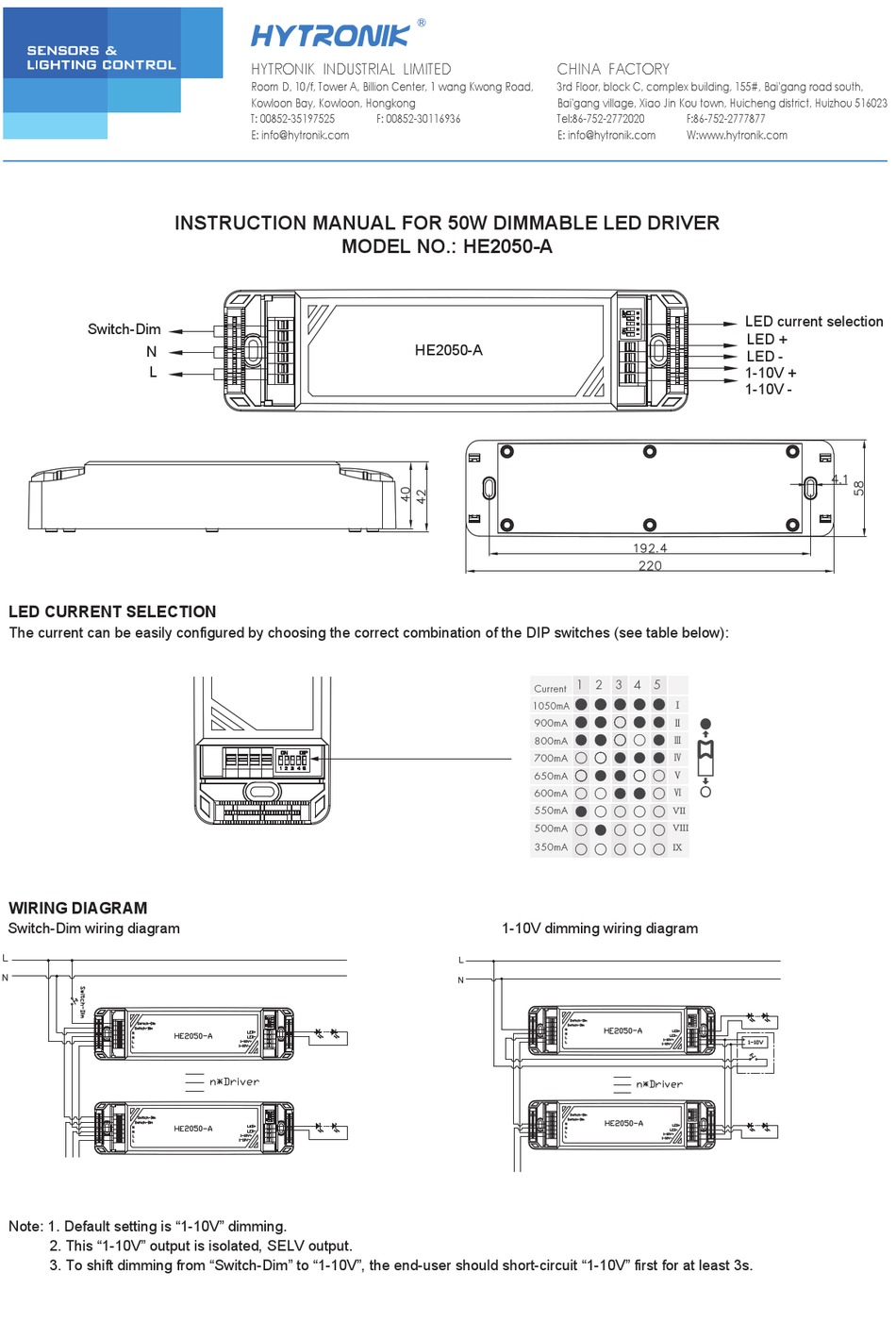

INSTRUCTION MANUAL FOR 50W DIMMABLE LED DRIVER
Switch-Dim
N
L
LED CURRENT SELECTION
The current can be easily configured by choosing the correct combination of the DIP switches (see table below):
WIRING DIAGRAM
Switch-Dim wiring diagram
Note: 1. Default setting is "1-10V" dimming.
2. This "1-10V" output is isolated, SELV output.
3. To shift dimming from "Switch-Dim" to "1-10V", the end-user should short-circuit "1-10V" first for at least 3s.
HYTRONIK INDUSTRIAL LIMITED
Room D, 10/f, Tower A, Billion Center, 1 wang Kwong Road,
Kowloon Bay, Kowloon, Hongkong
T: 00852-35197525
F: 00852-30116936
E: info@hytronik.com
MODEL NO.: HE2050-A
HE2050-A
CHINA FACTORY
3rd Floor, block C, complex building, 155#, Bai'gang road south,
Bai'gang village, Xiao Jin Kou town, Huicheng district, Huizhou 516023
Tel:86-752-2772020
E: info@hytronik.com
5
1
2
3 4
Current
1050mA
900mA
800mA
700mA
650mA
600mA
550mA
500mA
350mA
1-10V dimming wiring diagram
F:86-752-2777877
W:www.hytronik.com
LED current selection
LED +
LED -
1-10V +
1-10V -
Ⅰ
Ⅱ
Ⅲ
Ⅳ
Ⅴ
Ⅵ
VII
VIII
IX
Advertisement
Table of Contents
Summary of Contents for Hytronik HE2050-A
-
Page 1: Wiring Diagram
Bai'gang village, Xiao Jin Kou town, Huicheng district, Huizhou 516023 T: 00852-35197525 F: 00852-30116936 Tel:86-752-2772020 F:86-752-2777877 E: info@hytronik.com E: info@hytronik.com W:www.hytronik.com INSTRUCTION MANUAL FOR 50W DIMMABLE LED DRIVER MODEL NO.: HE2050-A LED current selection Switch-Dim LED + HE2050-A LED - 1-10V + 1-10V - LED CURRENT SELECTION... - Page 2 SWITCH-DIM On/off control: short push (<1s) on the switch. push and hold to dim Note: Short push should be at least 0.12s, and the time interval between two pushes should be longer than 0.12s also. Stepless dimming: long push (>1s) on the switch. For fine tuning of light level: with every other long push, the light level goes to the opposite direction.
