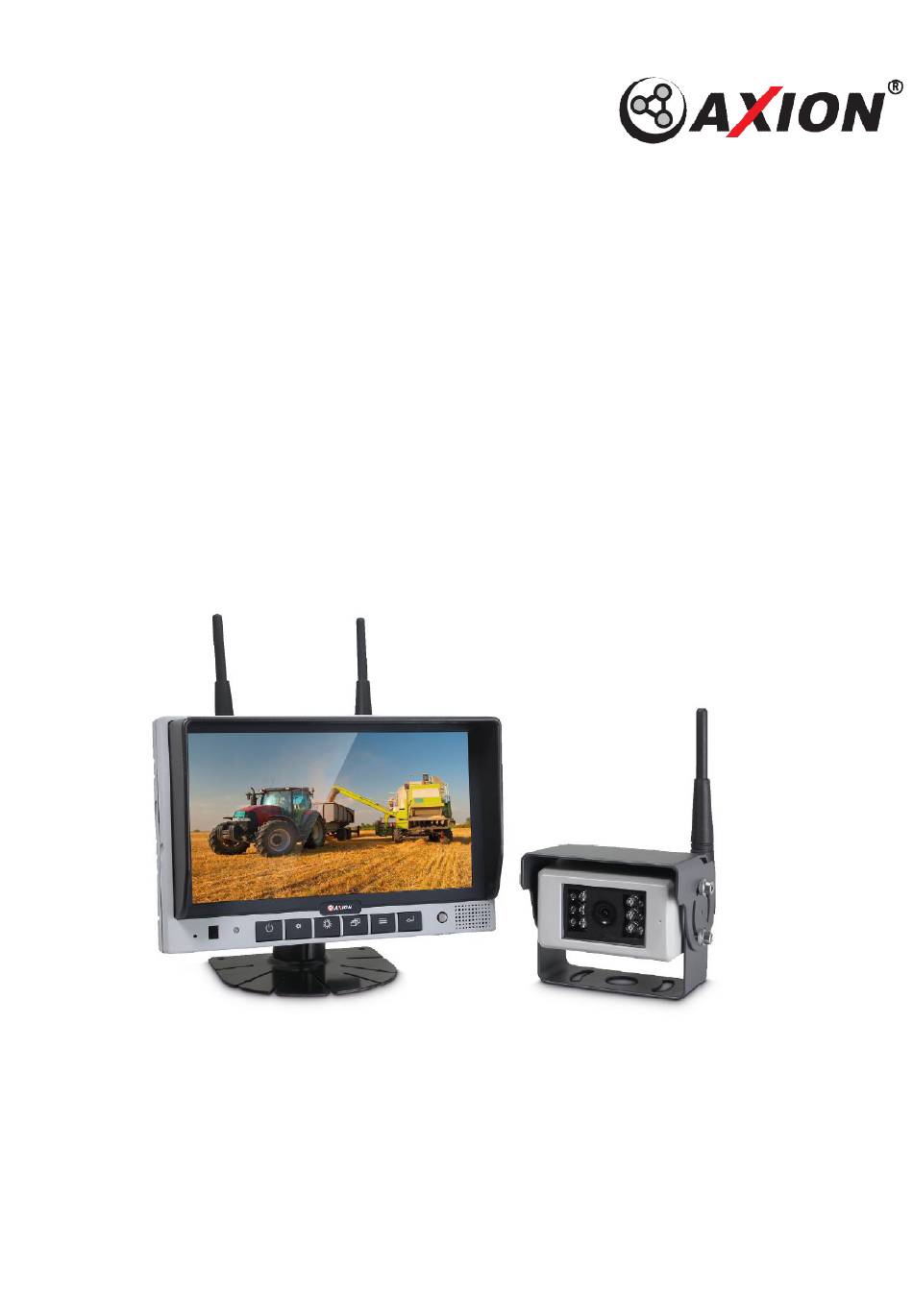

- Page 1 Instruction Manual CRV 7044 AIR 2,4G Digital Wireless Set with 7" LCD color monitor...
-
Page 2: Table Of Contents
Contents Precautions ......................1 2. Features ......................... 2 3. Technical Specifications ................... 2 4. Accessories ......................3 5. Parts Identification ....................3 6. Basic Operation ...................... 4 7. Menu ........................5 8. Troubleshooting....................10... -
Page 3: Precautions
1. Precautions ● Storage and Keeping 1. Do not expose the monitor to excessive heat or cold. The storage temperature of this device is -30~+80℃ , and the operating temperature is -20~+70 ℃ . The humidity is Rh90%. 2. 4. Avoid dropping or striking this device. 3. -
Page 4: Features
2. Features 1. TFT LCD monitor with wide angle view and high resolution display. 2. NORMAL, MIRROR, FLIP and MIR-FLIP viewing available. 3. Split mode, auto-scan mode and single-display mode available. 4. Auto pairing: Auto pairing happens when camera is activated. 5. -
Page 5: Accessories
4. Accessories Center Mount Bracket Sun Shield Power cable 5. Parts Identification Digital Color LCD screen Menu Power indicator Loudspeaker Light level sensor Select channels Power switch Volume decrease Volume increase OK confirm... -
Page 6: Basic Operation
6. Basic Operation 7.1 Installation of Center Mounting Bracket: Adjust monitor level by sliding the support to the desired height. Adjust the angle of the monitor and tighten the knob on the center mounting bracket. Support attaching piece Knob Single red wire to positive power supply of DC/10-32V. Single black wire to GND. -
Page 7: Menu
7.3.Reversing Display: 7.3.1. When the white wire is connected to the positive wire of the left turn light , the monitor automatically switches to Left(left side camera) when the left turn indicator is activated. 7.3.2. When the blue wire is connected to the positive wire of the right turn light, the monitor automatically switches to Right (right side camera) when the right turn indicator is activated. - Page 8 Press to select MODE. and press to select Press OK to enter the submenu, QUAD/H-SPLIT, Press MENU return to main menu (2) Press to select PICTURE, and press OK to enter the submenu...
- Page 9 Press to select BRIGHTNESS / CONTRACT / HUE / VOLUME, and then press OK to enter the setting accordingly. When the icons turn red, press on menu for selection decreasing or adding. Press OK to exit the menu. At the submenu, press MENU return to main menu.
- Page 10 Press to select F-CAM/L-CAM/R-CAM/B-CAM/SCANTIME, and then press OK to enter the setting accordingly. When the icons turn red, press on menu for selection decreasing or adding. Press OK to exit the menu. At the submenu, press MENU return to main menu. ...
- Page 11 COLOR-SYS: Press to select COLOR-SYS, Press OK to enter, Press to select NTSC/PAL. AUTO-DIM: Press to select AUTO-DIM. Press OK to enter, and then press select ON/OFF. When it is on, the monitor will automatically turn darker when it is placed in dark environment for 5s.
-
Page 12: Troubleshooting
8. Troubleshooting The symptoms described below do not necessarily mean a failure within the display. Please check the following items before you initiate request for repair. Symptoms Possible Causes/Solutions Improper connection of automobile adapter. Use of un- No picture, no sound authorized power supply.
