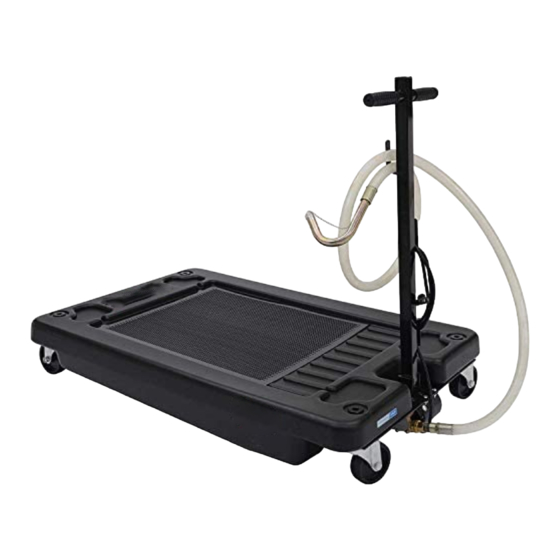

- Page 1 Assembly and operation instructions 17 U.S. gallon portable low profile drain with electric pump Model 3669 Date of issue February 2018 Form number 404513 Version...
-
Page 2: Table Of Contents
Contents Safety ......Explanation of signal words for safety ......Specifications . -
Page 3: Safety
Safety WARNING Read manual prior to installation or use of this product. Keep manual nearby for future reference. Failure to follow Explanation of signal instructions and safety precautions may result in death or serious injury. words for safety Read and carefully observe all assembly, •... -
Page 4: Assembly
Assembly 1 Refer to Fig. IPB 1 and place electric 11 Refer to Fig. IPB 2 and position NOTE pump (6) under mounting bracket (15). handle (12) in slot of mounting To prevent cutting or pinching electric 2 Install bolts (10) through top of bracket (15). -
Page 5: Usage
Usage Drain operation Discharge operation 1 Place reservoir (1) under vehicle. 1 Remove nozzle plug from J-hook (3). CAUTION 2 Place J-hook (3) securely into oil storage Do not use electrical pump in an area tank opening of an appropriate bulk fluid that is wet. - Page 6 Fig. IPB 3...
-
Page 7: Parts List
Parts list Item Description Part number Quantity Reservoir Filter screen 278407 Evacuator hose with J-hook 278348 Adapter, GHT (Garden hose type) in internal 278411 in NPT external in serrated 278500 Electric pump 278459 Adapter, GHT 278456 Hose clamp Reservoir hose 8 in (812 mm) Bolt in x 20 pan head 278499... -
Page 8: Troubleshooting
Troubleshooting Condition Possible cause Corrective action Pump will not prime or retain prime after Air leak in suction line. Repair or replace. operating. Defective impeller. Replace. Seal worn. Replace. 0-ring leaking. Replace. Groove worn in shaft at seal area Replace motor. Hose kinked. - Page 9 This page left intentionally blank.
