Summary of Contents for protech PIRAMID XL3

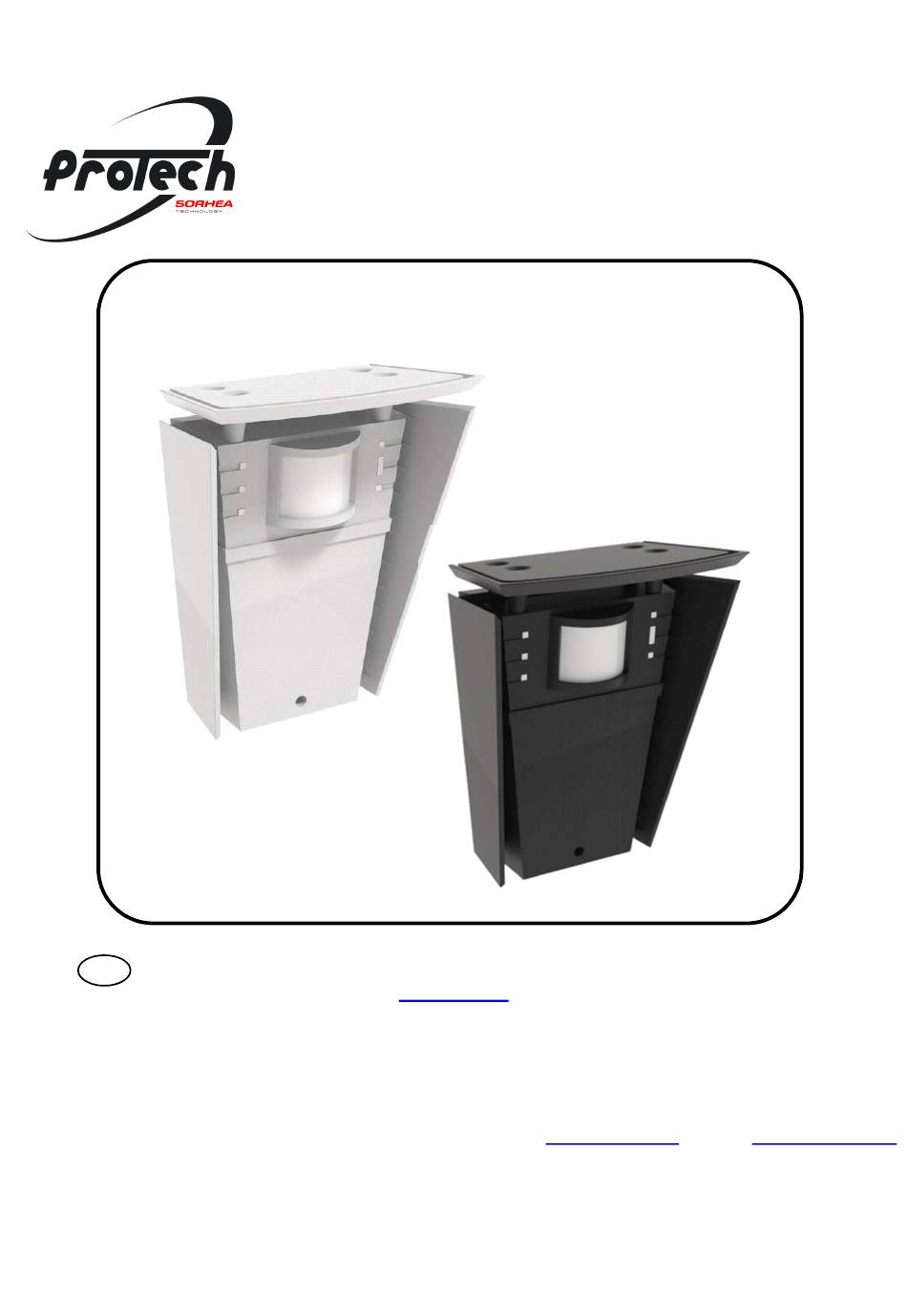

- Page 1 PIRAMID XL3 PIRAMID XL3 DUAL-TECHNOLOGY SENSOR Installation instructions - Pages 1-28 529 VISTA BLVD 89434 SPARKS, NV - USA Toll Free: 1-800-498-9662 / Phone: (775) 856-7333 / Fax: (775) 856-7658 Website: www.protechusa.com E-mail: sales@protechusa.com NT412 / V1.2 / 09.18...
-
Page 3: Table Of Contents
Maximum length of 12VDC power supply cables ..............12 SET-UP ....................... 12 Settings PIRAMID XL3 ......................12 Anti-masking alarm ......................15 Reading the parameters of the PIRAMID XL3: "READ" Mode ..........16 SMARTPHONE APPLICATION ................17 Managing settings ........................ 19 PIRAMID XL3 settings ......................19 Real-time Information ...................... -
Page 4: General
PROTECH PIRAMID XL3 GENERAL PIRAMID XL3 is a dual-technology sensor: • A passive infrared unit composed of a pyroelectric infrared (PIR) sensor that detects radiation emitted by the human body in the infrared spectrum. • A Microwave antenna using a 10,510 GHz frequency transmitter and a Doppler Effect receiver detect changes in the state of the radiation field caused by passage of an object or body in the lobe created by the antenna. -
Page 5: Description
PROTECH PIRAMID XL3 DESCRIPTION PIR Lens MW antenna cover Front view Back view Top view Side view - 3 -... -
Page 6: Operation
PROTECH PIRAMID XL3 OPERATION Characteristics of detection zone: SDI-78XL3-A SDI-78XL3-B Top view Top view 98 ft / 30 m Side view lens B 98 ft / 30 m Side view lens A Side view lens B-Pet Side view lens A-Pet... - Page 7 PROTECH PIRAMID XL3 SDI-78XL3-H SDI-78XL3-H60 Top view Top view 98.4 ft / 30 m Side view 98.4 ft / 30 m Side view SDI-78XL3-H40 SDI-78XL3-H20 Top view Top view 98.4 ft / 30 m Side view 98.4 ft / 30 m...
-
Page 8: Installation Precautions
PROTECH PIRAMID XL3 INSTALLATION PRECAUTIONS It is important to follow certain rules to ensure proper installation of the detector: ENSURE THAT NO VEGETATION IS FOUND IN THE DETECTION ZONE. CHECK THAT THE CLOSEST VEGETATION DOES NOT OBSTRUCT THE DETECTION ZONE IN CASE OF WIND. - Page 9 Support Structure USE AS A MOTION DETECTOR AND NOT AS A PERIMETER DETECTOR DON’T use the PIRAMID XL3 as a perimeter detector. For good transverse detection, the DO: Use the PIRAMID XL3 as an approach sensitivity must be set to maximum, which risks detector (use of A, B or C lenses possible).
- Page 10 PROTECH PIRAMID XL3 DON’T leave any bin in the range of the detector which could attract small animals and birds. When they are near to the detector, they may be identified as larger targets by the DO: Place bins away from the range of the detector.
- Page 11 PROTECH PIRAMID XL3 BE CAREFUL OF ANIMALS PASSING THROUGH HOLES IN OR DUG UNDER A FENCE DON’T ignore openings which have been made in a fence and may provide an easy DO: Repair holes in the fence (or fill in...
-
Page 12: Installation
PROTECH PIRAMID XL3 INSTALLATION For optimum performance, the PIRAMID XL3 detector must be installed at a height between 6.6ft / 2m and 13ft / 4m. Drilling template for wall mounting: 2.4 in / 60mm REQUIRED ACCESSORIES TO MOUNT PIRAMID XL3: 4 Screws 4.8x60... -
Page 13: Wiring
PIRAMID XL3 Opening the cover Loosen the screw, raise, and then pull the cover up. WIRING 6.1 Wiring PIRAMID XL3 1: 12V DC power supply 13: Tamper Contact NC * 2: 0V DC power supply 14: Tamper Contact NO *... -
Page 14: Maximum Length Of 12Vdc Power Supply Cables
When using several wires with the same section in parallel by polarity, the indicated distances should be multiplied by the number of connected wires. SET-UP 7.1 Settings PIRAMID XL3 Using the setting mode: ALARM LED... - Page 15 1. Turn the “Test Mode” switch to the ON position to change to Settings mode. 2. Set the sensitivity to maximum (code selector set to 9). Code selector sensitivity setting 3. Set the maximum distance beyond which the PIRAMID XL3 should not detect. Code selector Code selector setting Distance value Max.
- Page 16 PIR LED MW LED 5. Determine the desired PIRAMID XL3 detection range by performing walk test in this area. Adjust detector orientation and sensitivity to the required settings. When one of the technologies, PIR or MW, switches to alarm status, the associated LED will light up red.
-
Page 17: Anti-Masking Alarm
PROTECH PIRAMID XL3 6. Turn the "Test Mode" to the OFF position to switch to detection mode. 7. Close the cover. 8. In normal operation, the LEDs are off. It is possible to activate them via smartphone application (see §8.2). -
Page 18: Reading The Parameters Of The Piramid Xl3: "Read" Mode
PROTECH PIRAMID XL3 7.3 Reading the parameters of the PIRAMID XL3: "READ" Mode Sensitivity and distance settings max. can be modified: Either via the code selectors on the detector Or via the smartphone application Note: In Settings mode, sensitivity and distance settings are stored in memory by the code selectors. -
Page 19: Smartphone Application
PROTECH PIRAMID XL3 4. Turn the code selector until the LED is permanently lit. The value displayed on the code selector corresponds to the stored setting. 5. Turn the "Test Mode" switch OFF to exit “Read” mode. SMARTPHONE APPLICATION Note: The smartphone application is compatible from Android 4.1 or higher. - Page 20 2 seconds, then release. Note: the connection remains active for as long as the PIRAMID XL3 is connected to the smartphone application. It is disconnected when the cover is shut (tamper contact closed) or after 1 minute of inactivity (application closed).
-
Page 21: Managing Settings
PROTECH PIRAMID XL3 8.1 Managing settings Setting the time on the PIRAMID XL3 Name of PIRAMID XL3: Click on the name to change it then click on Save. 8.2 PIRAMID XL3 settings 1. Click on Menu Menu 2. Click on Settings... - Page 22 PROTECH PIRAMID XL3 3. PIRAMID XL3 settings Legend: Enable Disable Sensor ejected Sensor not ejected LEDS enabled / disabled Buzzer enabled / disabled Relay outputs enabled / disabled Antimask enabled / disabled MW ejection PIR ejection Moving direction: Settings save above...
-
Page 23: Real-Time Information
PIRAMID XL3 8.3 Real-time Information 1. Click on Menu Menu 2. Click on Real-time Real-time 3. Viewing PIRAMID XL3 real-time information MW and PIR sensor status Intrusion and anti-mask relays status “Test mode” switch status : Setting mode : Detection mode... -
Page 24: Event Log
PROTECH PIRAMID XL3 8.4 Event log 1. Click on Menu Menu 2. Click on Event log Event log - 22 -... - Page 25 PROTECH PIRAMID XL3 3. View event log Date/Time of the event Type of events PIRAMID XL3 setting List of events: − Alarm intrusion − Alarm mask − End alarm mask − Alarm tamper − End alarm tamper − Time setting −...
-
Page 26: Periodic Maintenance
If the tamper is to be used in a network connection, turn the switches to the bottom. - The PIRAMID XL3 BLE Press on the tamper switch for at The smartphone connection is not activated. least 2 seconds, then release. -
Page 27: Technical Specifications
PROTECH PIRAMID XL3 11 TECHNICAL SPECIFICATIONS SDI-78XL3-A: 98ftx98ft / 30mx30m SDI-78XL3-B: 98ftx33ft / 30mx10m SDI-78XL3-C: 131ftx19.7ft / 40mx6m SDI-78XL3-D: 131ftx9.8ft / 40mx3m Maximum outdoor range SDI-78XL3-H: 98ftx85ft / 30mx26m SDI-78XL3-H60: 98ftx46ft / 30mx14m SDI-78XL3-H40: 98ftx23ft / 30mx7m SDI-78XL3-H20: 98ftx9.8ft / 30mx3m... -
Page 28: Product References
60760410 • SDI-78XL3-H60 range 98ft x 46ft / 30x14m gray anthracite ref: 60760411 Changes or modifications not expressly approved by PROTECH could void the user’s authority to operate the equipment. FCC Part 15 compliance statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. - Page 29 équipement à une distance inférieure. Cet émetteur ne doit pas être co-situé ou fonctionner conjointement avec une autre antenne ou un autre émetteur PROTECH hereby declares that the device PIRAMID XL3 is in conformity with the essential requirements of Directive 2014/53/EU. The declaration of conformity can be found at: www.protechusa.com...
- Page 30 PROTECH PIRAMID XL3 In compliance with the European environmental directives, this product must not be thrown away but recycled through an appropriate subsidiary. - 28 -...
