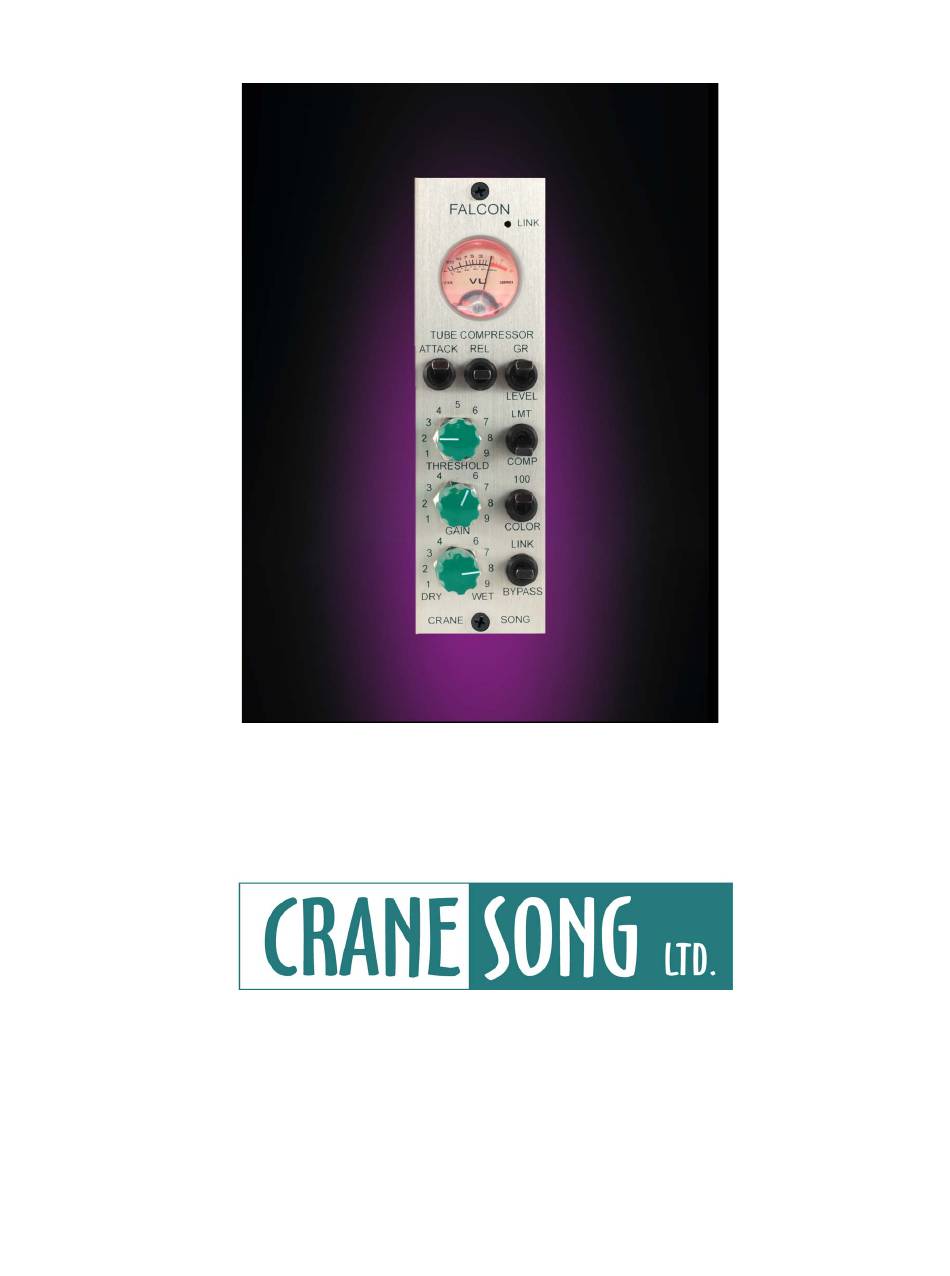

FALCON
O
M
PERATOR'S
ANUAL
Version 1.0
20160917
LTD.
2117 East 5th Street
Superior, WI 54880 USA
tel: 715-398-3627
fax: 715-398-3279
www.cranesong.com
© 2013 Crane Song, LTD.
Subject to change without notice.
Printed in the U.S.A.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Falcon and is the answer not in the manual?

Questions and answers

Summary of Contents for Crane Song Falcon

  • Page 1 FALCON PERATOR'S ANUAL Version 1.0 20160917 LTD. 2117 East 5th Street Superior, WI 54880 USA tel: 715-398-3627 fax: 715-398-3279 www.cranesong.com © 2013 Crane Song, LTD. Subject to change without notice. Printed in the U.S.A.
  • Page 2 ATTACK SWITCH: A three position switch with fast, medium and slow settings, which controls the time it takes Falcon to respond to the input signal. Fast is the top position RELEASE SWITCH: This switch controls the time it takes Falcon to return to no gain reduction.
  • Page 3 In link mode: ATTACK, RELEASE, METER SWITCH, COLOR SWITCH, and THRESHOLD controls are controlled on the master channel THRESHOLD The threshold control governs the amount of gain reduction. GAIN: The gain control will adjust the compressor gain from off to +15 dB of gain. When linked the gain controls operate independently.
  • Page 4 ATTACK an RELEASE Meter switch have 3 positions compressor-limiter mode system color Link Bypass...
  • Page 5 Bright LED indicates the Dim LED indicates the MASTER SLAVE Set to BYPASS This channel is the SLAVE This channel is the MASTER Set to LINK LINK MODE OPERATION The GAIN and DRY-WET controls operate individually, all others are controlled by the MASTER. The SLAVE channel must first be in BYPASS for the LINK to work...
  • Page 6 Input INPUT - OUTPUT RELATIONSHIP RATIO Falcon is a feedback design, as a result the ratio changes depending on how much gain reduction is taking place. This measurement was made with the Attack set to fast, Release set to mid. The threshold was set so that with a +24dbu input there is16 db of...
  • Page 7 LINK CABLE CONNECTION...
  • Page 8 SPECIFICATIONS Connections: The input and output are balanced, with the output being transformer balanced. Signal Level: The maximum specified signal level is +26 dbu Noise Floor: -82.5 dbu measured 20Hz to 20 kHz Power: 110mA with 16 volt bipolar power supplies Tube: 12AX7B Attack Time:...
