Real E4-9 User Manual

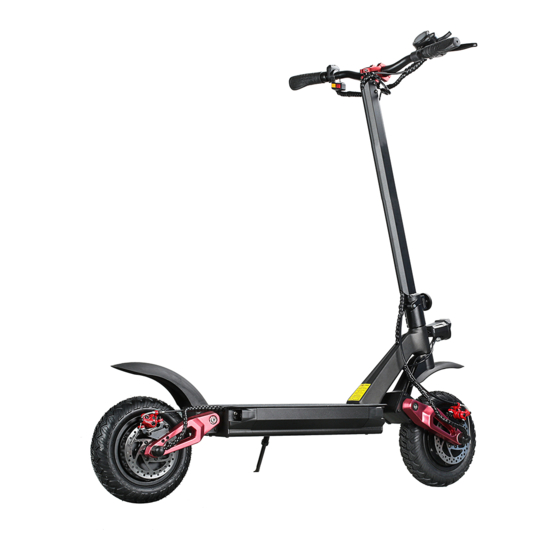

Foldable electric scooter
Hide thumbs

Advertisement

Table of Contents

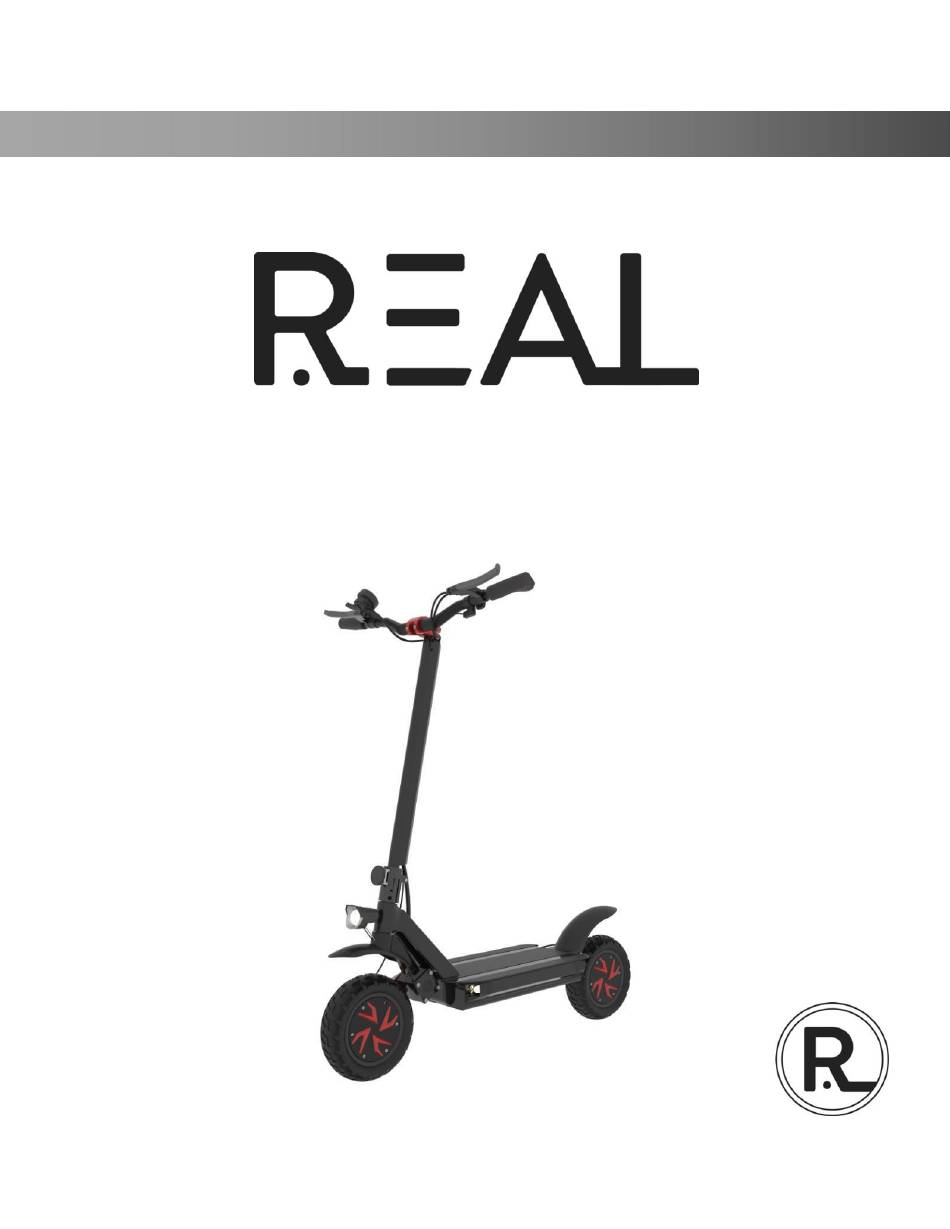

Foldable Electric Scooter
USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E4-9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Real E4-9

  • Page 1 Foldable Electric Scooter USER MANUAL...

  • Page 2: Read Me First

    Read Me First Dear Customer， Thank you for purchasing your electric scooter from The Real Scooters. Your new electric scooter is a safe, environmentally-friendly, high-tech means of transport that features excellent shock absorption and riding comfort along with a streamlined appearance and superior portability and reliability.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Read Me First ………………………….…………………………………………………………2 Section 1. Product and Accessories ……………………………………………………4 Section 2. Assembly Instructions ……………………………………………………….6 Section 3. Speedometer Operation Instructions ………………………………6 Section 4. Folding Instructions ………………………………………………………….8 Section 5. Safety Precautions ……………………………………………………………8 Section 6. Care and Maintenance …………………………………………………….11 Section 7.

  • Page 4: Section 1. Product And Accessories

    SECTION 1. PRODUCT AND ACCESSORIES Read this manual before using your scooter and save the document for future reference. Please include this manual when transferring your scooter to someone else. Several accessories are included with your purchase: Scooter Body User Manual Charger Warranty Card Tool...
  • Page 5 SCOOTER ACCESSORIES AND DIMENSIONS...

  • Page 6: Section 2. Assembly Instructions

    SECTION 2. ASSEMBLY INSTRUCTIONS Assembling your scooter takes just two steps: 1. Place the handlebar on the steering rod and tighten the screw. 2. Using the arrows and color coding as guides, join the waterproof connectors. SECTION 3. SPEEDOMETER OPERATION INSTRUCTIONS The speedometer has two buttons, Power and Function.
  • Page 7 Press the Power button to change the instrument display interface: ▪ - 00:00 indicates time - TRIP indicates single trip mileage - ODO indicates accumulated mileage - VOL indicates battery voltage Under the selected interface, press and hold the Function button to modify.

  • Page 8: Section 4. Folding Instructions

    SECTION 4. FOLDING INSTRUCTIONS Your scooter can be conveniently folded and unfolded for easy storage and transport. To quickly fold: Loosen the folding knob by turning, then fold the steering rod down toward the footboard. To quickly unfold: Push the steering rod upright. Tighten the folding knob completely and fasten the buckle to the folding seat.

  • Page 11: Section 6. Care And Maintenance

    SECTION 6. CARE AND MAINTENANCE Cleaning Your Scooter Ensure your scooter is OFF and unplugged before cleaning. ▪ Scrub with a damp cloth and non-aggressive detergent. Do not use chemicals or other ▪ corrosive substances. Do not use excessive amounts of water when cleaning and never submerge your scooter in ▪...
  • Page 12 Note: Never attempt to disassemble the battery pack yourself as serious safety accidents may result. Charging Your Scooter ▪ Only charge the lithium battery in temperatures ranging from 32 degrees Fahrenheit to 114 degrees Fahrenheit. ▪ Turn the scooter OFF before charging. ▪...

  • Page 13: Section 7. Product Specifications

    SECTION 7. PRODUCT SPECIFICATIONS Model No. E4-9 52 V 20.8 Ah Lithium Battery Battery Power 1081.6Wh Motor Power 1000W (Single motor) N.W/G.W. 51lb./62lb. Speed 12-18-27 MPH (3 speed modes) Max. Mileage 40-43 miles Charging Time 6-8 hrs. 25-30 degrees Max. Climb Capability Max.

  • Page 14: Section 9. Warranty Information

    Conditions Apply The Real Scooters limited warranty covers damage to your scooter that may occur in transit, such as motor or battery failure. The warranty is guaranteed for a period of one year from the date of purchase.
  • Page 15 WARRANTY CARD (ARCHIVE CARD) Product: Model: Serial number: Purchase date: After sale service Phone: Customer name: Phone: Customer address: 1. Repair details: Service evaluation: Customer signature • Satisfaction • Dissatisfaction 2. Repair details: Service evaluation: Customer signature • Satisfaction • Dissatisfaction ---------------------------------------------------------------------------------------------- WARRANTY CARD (CUSTOMER RETENTION) Product:...
