Summary of Contents for Ultra-tow 52513

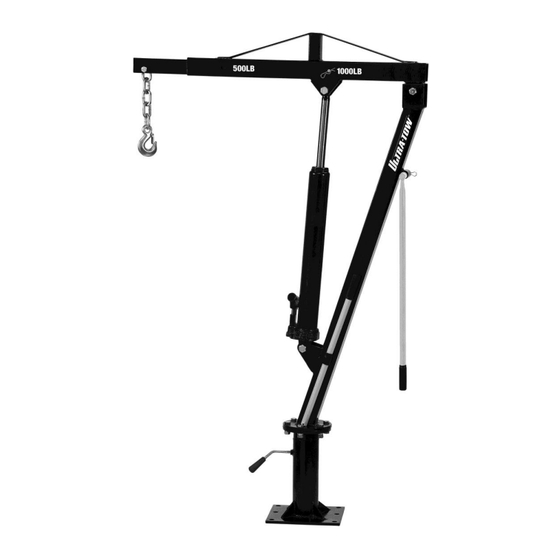

- Page 1 1000-lb Hydraulic Truck Crane Owner’s Manual WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item #52513 SAVE THESE INSTRUCTIONS...
- Page 2 Thank you very much for choosing an Ultra-Tow™ product! For future reference, please complete the owner’s record below: Serial Number/Lot Date Code: ________________________________ Purchase Date: ____________________________________________ Save the receipt, warranty, and this manual. It is important that you read the entire manual to become familiar with this product before you begin using it.
-
Page 3: Table Of Contents
Table of Contents Intended Use ............................4 Technical Specifications ........................4 Important Safety Information ....................... 4 Specific Operation Warnings ....................... 5 Main Parts of Product ........................... 6 Assembly Instructions .......................... 6 Before Each Use ............................ 9 Operating Instructions .......................... 9 After Each Use ............................ -
Page 4: Intended Use
Intended Use Ultra-Tow’s 1000-lb Hydraulic Truck Crane provides the power to lift a 1000 lb load when fully retracted and a 500 lb load when fully extended. It pivots 360°in base for easy loading, which saves time and effort loading and unloading cargo from a pickup bed. -
Page 5: Specific Operation Warnings
⚠WARNING PERSONAL SAFETY Stay alert, watch what you are doing, and use common sense when operating the crane. Do not use the crane while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the tool may result in serious personal injury. ... -
Page 6: Main Parts Of Product
Operate on a hard level surface. Always wear the proper personal protective gear such as gloves and steel toed boots. No alteration shall be made to this product. Do not adjust the safety valve. Not for use by or around children. Main Parts of Product Reference Subassembly... - Page 7 Attach the boom (12) to the main post (9). Connect the jack (8) to the boom (12) and main post (9). Secure the base (1) to the truck bed, garage floor, or wherever the crane will be used. Insert the assembled parts (main post, boom, and jack) to the base.
- Page 8 Insert the boom extension (14) into the boom. Attach the wheel working arm (5) to the main post, securing it with the R-pin (27). Attach the wheel binding bolt (4) to the base (1). Page 8 of 14...
-
Page 9: Before Each Use
Before Each Use ⚠WARNING Do not use damaged equipment. If an abnormal noise or vibration occurs, have the problem corrected before further use. Inspect the general condition of the tool. Check for: Loose hardware Misalignment or binding of moving parts ... -
Page 10: Troubleshooting
Use only soap and a damp cloth to clean your tools. Many household cleaners are harmful to plastics and other insulation. Never let liquid get inside a tool. When servicing, use only identical replacement parts. Use of any other parts will void the warranty. -
Page 11: Parts Diagram
Parts Diagram Page 11 of 14... -
Page 12: Parts List
Parts List Part Part Part Description Quantity Part Description Quantity Number Number BASE BOLT M12x70 WHEEL HUB HOOK AND CHAIN BOLT M12x35 BEARING 30207 (720E) WHEEL BINDING BOLT M12 NUT WHEEL WORKING ARM M12 LOCK WASHER BOLT M16x9 M12 WASHER JACK HANDLE M14 NUT JACK (3 TON) -
Page 13: Limited Warranty
Northern Tool and Equipment Company, Inc. ("We'' or '"Us'') warrants to the original purchaser only ("You'' or “Your”) that the Ultra-Tow product purchased will be free from material defects in both materials and workmanship, normal wear and tear excepted, for a period of one year from date of purchase. - Page 14 Distributed by: Northern Tool & Equipment Company, Inc. Burnsville, Minnesota 55306 www.northerntool.com Made in China Page 14 of 14...
