Summary of Contents for ITL IFH-1710 Series

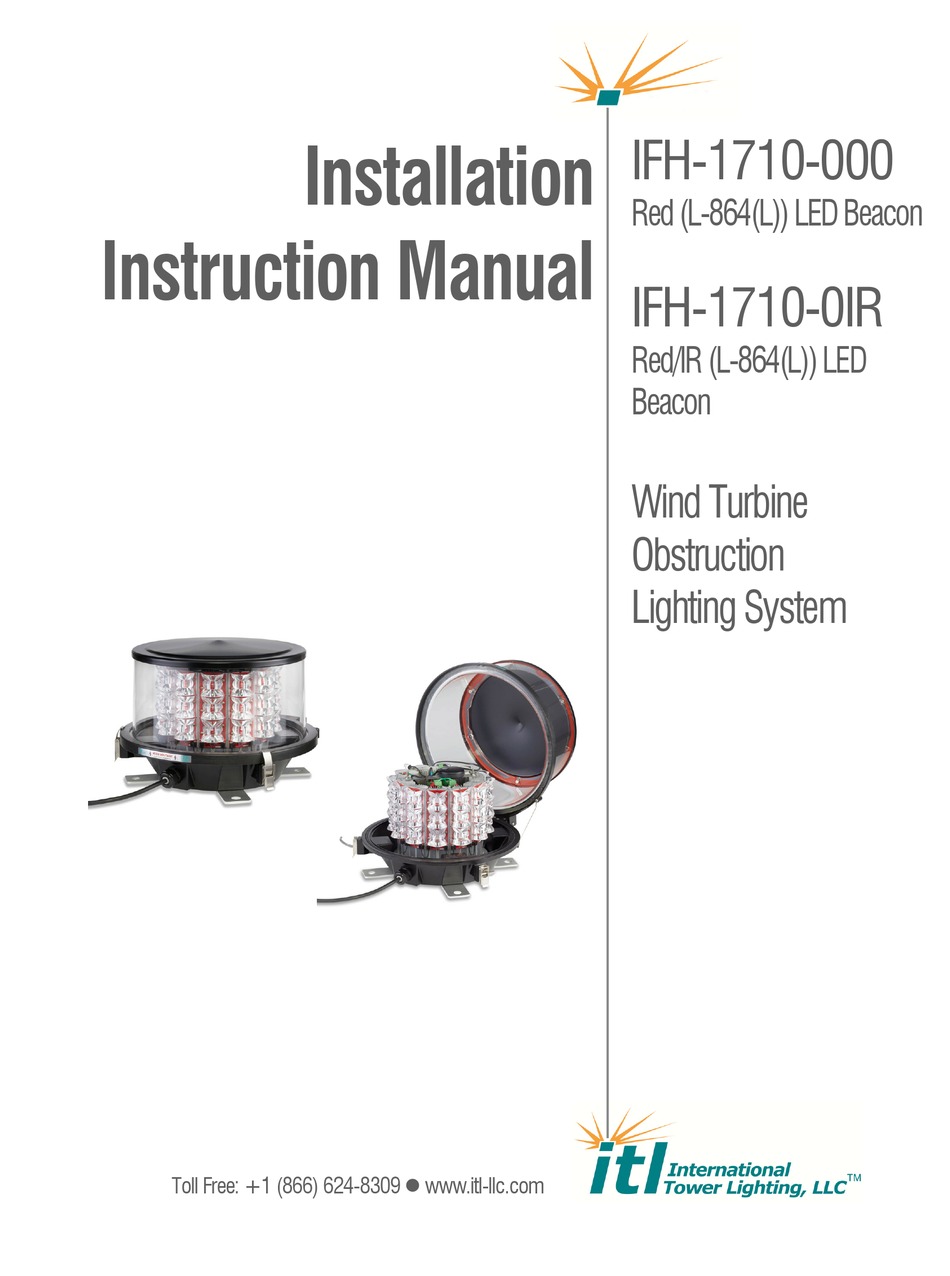

- Page 1 Installation IFH-1710-000 Red (L-864(L)) LED Beacon Instruction Manual IFH-1710-0IR Red/IR (L-864(L)) LED Beacon Wind Turbine Obstruction Lighting System Toll Free: +1 (866) 624-8309 www.itl-llc.com...
-
Page 2: Front Matter
ITL, LLC in order to obtain a Return Authorization Number, RMA. In no event shall ITL, LLC’s liability exceed the price paid for the product from direct, indirect, special, incidental, or consequential damages resulting from the use of the product, its accompanying software, or its documentation. -
Page 3: Safety Warning
Only attempt repairs in a lab setting. Do not wear any jewelry. Gold and silver are excellent conductors of electricity. This equipment emits near infrared radiation. Avoid direct eye exposure. Copyright 2009-2019 ITL, LLC (10/7/2019) Page 3 of 22... -
Page 4: Table Of Contents
................... 19 Spare Parts & Replacement Parts continue ..............20 Technical Support and Contact Info ................21 Contact Info ......................... 21 ..........................21 Copyright 2009-2019 ITL, LLC (10/7/2019) Page 4 of 22 DOC-1710-MNL Rev20.doc... -
Page 5: List Of Illustrations And Tables
Figure 7: IFH-1710 Wiring Diagram ................. 13 Figure 8: IFH-1710 Grounding ..................14 Figure 9: ITL-0720-CTL Controller Board ................ 15 Figure 10: IFH-1710 Controller Board DIP Switch Settings ..........15 Figure 11: IFH-1710 Controller Board LED Indicators ............. 15 ... -
Page 6: Introduction
IFH-1710 Red/Infrared LED Beacon Introduction Congratulations, and thank you for choosing an ITL lighting system component. We trust that ITL’s reputation for technical excellence, experience in product development, commitment to our customers and testing will ensure your complete satisfaction. You have chosen one of the most technologically innovative lighting components available on the market today. -
Page 7: Specifications
120-240VAC, 50/60Hz Power Consumption average power, night mode. average power over 24 hours (Note 1: At 25°C, 120Vac) (Note 2: 12 Hours night mode, 12 Hours day mode) Copyright 2009-2019 ITL, LLC (10/7/2019) Page 7 of 22 DOC-1710-MNL Rev20.doc... -
Page 8: Installation
Please examine the shipping containers and their content thoroughly upon receipt and report any potential shipping damage to the carrier. Tools for Installation The following tools are suggested for mounting of the ITL flash head. Digital multi-meter Nut Drivers and Sockets ... -
Page 9: Flash Head
“torpedo” level on two axes to ensure that the flash head is mounted level. If the flash head mounting surface is not level already use shims to correct. Do not compromise grounding of the four flash head mounting feet. Copyright 2009-2019 ITL, LLC (10/7/2019) Page 9 of 22... -
Page 10: Figure 3: Flash Head Leveling - Axis 1
IFH-1710 Red/Infrared LED Beacon Figure 3: Flash Head Leveling - Axis 1 Figure 4: Flash Head Leveling - Axis 2 Copyright 2009-2019 ITL, LLC (10/7/2019) Page 10 of 22 DOC-1710-MNL Rev20.doc... -
Page 11: Ifh-1710 Flash Head Mounting
IFH-1710 Red/Infrared LED Beacon IFH-1710 Flash Head Mounting 4 SETS OF MOUNTING HARDWARE BOLT HDW-B500-150-GAL LOCK WASHER HDW-0500-LGA H.H.NUT HDW-0500-NGA INCLUDED Figure 5: IFH-1710 Flash Head Dimensions and Mounting Detail Copyright 2009-2019 ITL, LLC (10/7/2019) Page 11 of 22 DOC-1710-MNL Rev20.doc... -
Page 12: System Overview
LEDs to produce light. Each LED module contains three high power LEDs with a custom optic mounted in front of each LED. The optic focuses the light from the LED into the required beam pattern. Figure 6: IFH-1710 Block Diagram Copyright 2009-2019 ITL, LLC (10/7/2019) Page 12 of 22 DOC-1710-MNL Rev20.doc... -
Page 13: Wiring Diagram
IFH-1710 Red/Infrared LED Beacon Wiring Diagram IFH-1700-ENG / IFH-1700-ENG-IR LED LIGHT ENGINE Figure 7: IFH-1710 Wiring Diagram Copyright 2009-2019 ITL, LLC (10/7/2019) Page 13 of 22 DOC-1710-MNL Rev20.doc... -
Page 14: Grounding
AWG 6 copper conductor. Fiberglass nacelle covers are non-conductive and do not provide a ground connection. Nacelle cover AWG 6 Ground Wire Ring Lug, HDW-RLUG-06U-500, Included Figure 8: IFH-1710 Grounding Copyright 2009-2019 ITL, LLC (10/7/2019) Page 14 of 22 DOC-1710-MNL Rev20.doc... -
Page 15: Setup And Operation
10 flash cycles. Holding the TEST button depressed for 3 or more flash cycles will cause an alarm to be generated for test purposes. Figure 9: ITL-0720-CTL Controller Board DESCRIPTION FLASH RATE: ON - 30FPM... -
Page 16: Flash Inhibit Input
The Red and Green Mode LEDs flash together when flashing is inhibited. A Readiness Test is automatically performed once every 24 hours. The ADS must deactivate the Flash Enable Input once every 24 hours. Copyright 2009-2019 ITL, LLC (10/7/2019) Page 16 of 22... -
Page 17: Maintenance / Trouble-Shooting
Verify the all cables are fastened securely at appropriate intervals to prevent damage. Inspect all electrical components for evidence of damage caused by lightning or power line induced electrical surges. Replace any components showing evidence of damage. Copyright 2009-2019 ITL, LLC (10/7/2019) Page 17 of 22 DOC-1710-MNL Rev20.doc... -
Page 18: Recommended Tools
A voltage near 180V indicates that one of the twelve LED modules may have failed. Use an ITL-0705-TST Tester to check each LED module and replace as necessary. If an LED module has failed, check for and replace any damaged optics on that module. -
Page 19: Spare Parts & Replacement Parts
IFH-1710 Red/Infrared LED Beacon Spare Parts & Replacement Parts ITL-0710-PWR LEN-1700-CLR-ASY ITL-0720-CTL ITL-0730-PHD ANT-018X-GPS LEN-FLAR-864-1 ITL-0760-LED or ITL-0761-0IR ITL-1700-ENG or ITL-1700-ENG-IR Figure 12: IFH-1710 Replacement Parts Detail Copyright 2009-2019 ITL, LLC (10/7/2019) Page 19 of 22 DOC-1710-MNL Rev20.doc... -
Page 20: Spare Parts & Replacement Parts Continue
LEN-1700-864-1 optic, one ITL-0705-TST LED module tester and one TOL-1700-LED-2 wire installation tool. KIT-1700-0IR REPAIR KIT. Kit includes one ITL-0761-0IR LED module, For IFH-1710-0IR one LEN-1700-864-1 optic, one ITL-0705-TST LED module tester and one TOL-1700-LED-2 wire installation tool. -
Page 21: Technical Support And Contact Info
Technical Support and Contact Info Contact Info For information on the ITL lighting systems’ basic functions, refer to this manual and the accompanying drawings. For additional help with the installation or operation of any ITL products, please contact ITL, LLC at one of the following below. - Page 22 Approved By: Andy Rudolph Updated Flash Head Dimensions and Mounting Detail 8/4/2015 Prepared By: Elke Hinson Approved By: Andy Rudolph Replaced ITL-1700-KIT with KIT-1700-LED & updated description 5/12/2015 Prepared By: Elke Hinson (Figure 12 Flash Head Parts List Table) Approved By: Andy Rudolph Added installation note “All fixtures, enclosures and junction boxes...
