Summary of Contents for Scamol Skamotec 225

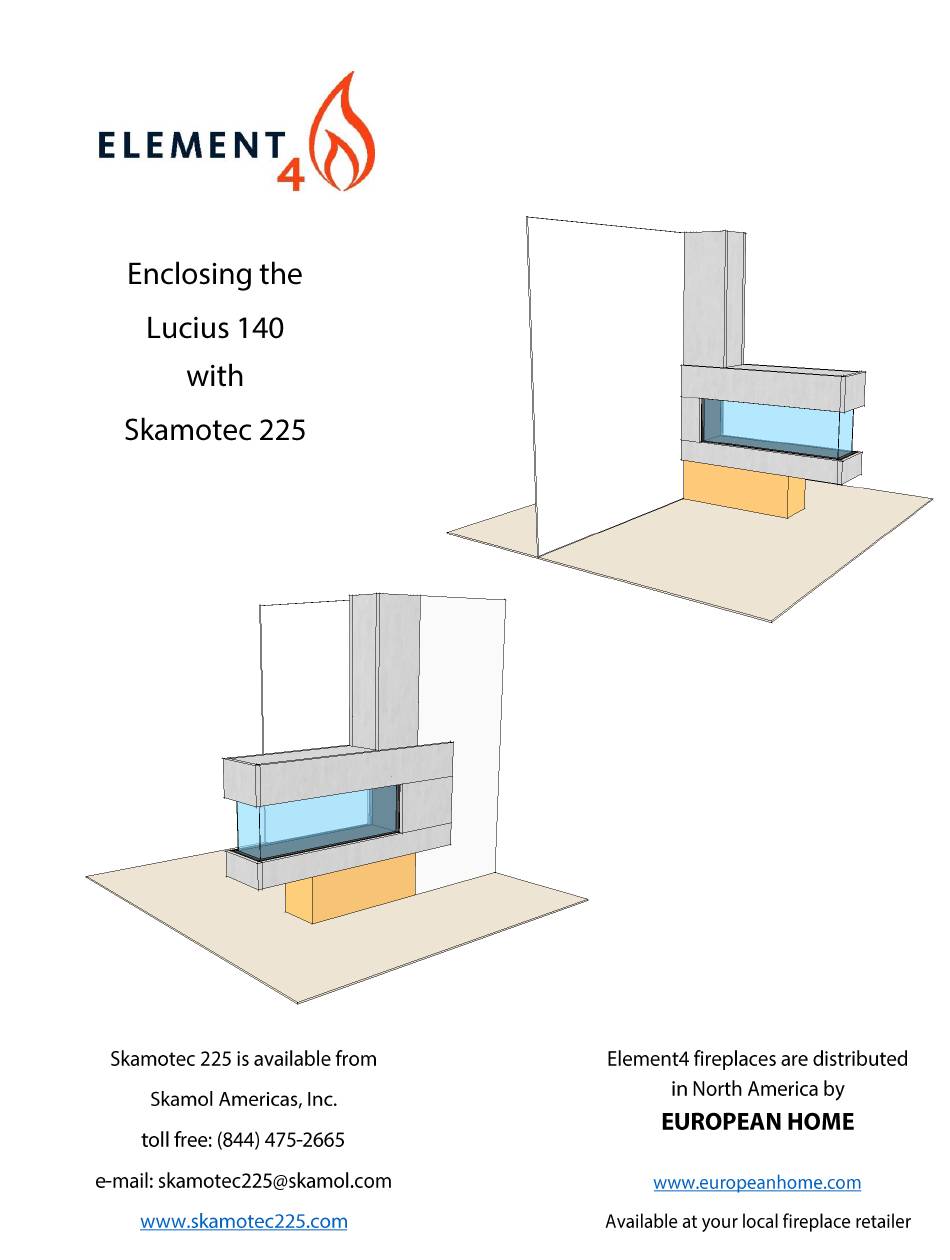

- Page 1 Note: Dimensions do not apply for the Lucius 140 MKII or Glass Safety Barrier versions. Please use this resource in reference to the standard Lucius 140 model only. f i r e - p a r t s . c o m Middleton, MA...
- Page 2 All joints shall be attached using 2-1/2” construction screws & construction adhesive. All Skamotec 225 surfaces must be moistened with water before assembly. This is to prevent the adhesive from drying out too quickly & adhering incorrectly ...
- Page 3 Material Required SKAMOTEC 225 48” X 80-5/16” X 1-1/2” Quantity - 3 boards Cut-List 11-1/2” x 55-1/2” – qty 1 14-11/16” x 28” – qty 1 17-13/16” x 55-1/2” – qty 2 11-1/2” x 52-3/8” – qty 1 f i r e - p a r t s . c o m 8”...
- Page 4 f i r e - p a r t s . c o m Exploded View...
- Page 5 Pre-Assemble of Panels Before you starting assembling your SKAMOTEC enclosure, it will be necessary to pre-assemble a few of the panels f i r e - p a r t s . c o m LH - Wall Side Panel RH - Wall Side Panel Assembly instructions ...
- Page 6 Pre-Assemble Panels Firebox Top Front Panel Assembly instructions f i r e - p a r t s . c o m Moisten all joining surfaces before attaching support blocking Fastened using 2-1/2” screws & construction adhesive Maintain a fastener spacing of 6”...
-
Page 7: Installation
INSTALLATION f i r e - p a r t s . c o m Step 1 – Assemble and Install Fireplace Platform... - Page 8 f i r e - p a r t s . c o m Step 2 – Install Back Wall panels to wall structure Fastened using 2-1/2” screws & construction adhesive Maintain a fastener spacing of 6” – 8” Step 3 –...
- Page 9 Step 4 – Install Wall Side Panels LH & RH f i r e - p a r t s . c o m Locate Side Panel against Back Panel Fastened using 2-1/2” screws & construction adhesive Maintain a fastener spacing of 6”...
- Page 10 Step 6 – Install Bottom Side Panel LH Locate Bottom Panel against Back Wall, Fireplace Platform & Fireplace Fastened using 2-1/2” screws & construction adhesive. Maintain a fastener spacing of 6” – 8” IMPORTANT Always maintain a minimum of 1/8” clearance from the window frame, this is to allow for the expansion of the unit.
- Page 11 Step 9 – Install Bottom Side Panel RH Locate Bottom Panel against Back Wall, Fireplace Platform & Fireplace Fastened using 2-1/2” screws & construction adhesive. Maintain a fastener spacing of 6” – 8” f i r e - p a r t s . c o m Step 10 –...
- Page 12 Step 12 – Install Middle Side Panel RH Locate Interior Baffle as shown Fastened using 2-1/2” screws & construction adhesive. Maintain a fastener spacing of 6” – 8” f i r e - p a r t s . c o m Step 13 –...
- Page 13 f i r e - p a r t s . c o m Step 15 – Install Top Panel Locate Top Panel against support Blocking & Side Panels Fastened using 2-1/2” screws & construction adhesive. Maintain a fastener spacing of 6” – 8”...
- Page 14 f i r e - p a r t s . c o m LH – Side View Front View RH – Side View LUCIUS 140...
