Summary of Contents for RJ Laser Photonic Satellite

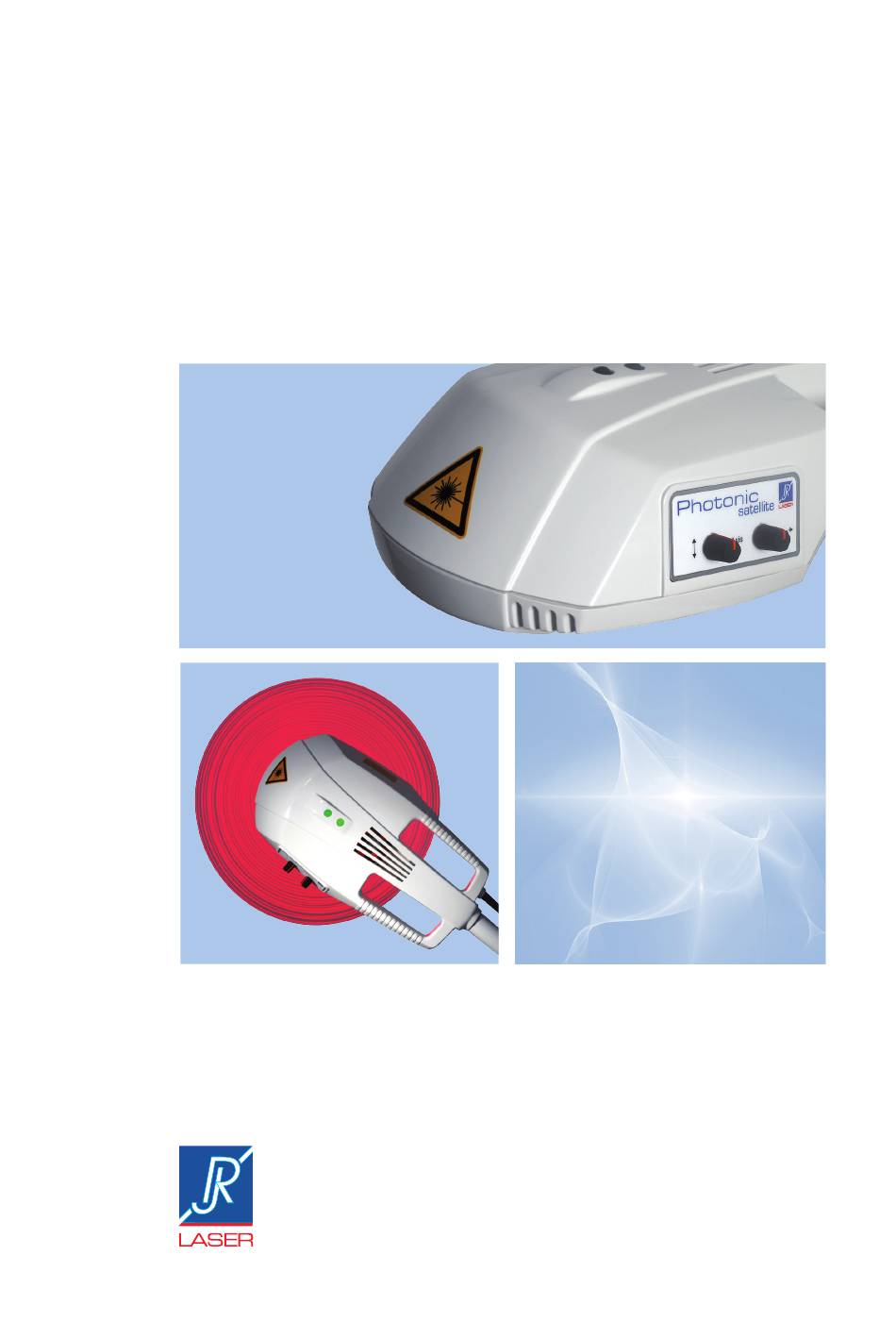

- Page 1 Photonic Satellite Compact scanning device Operation manual...
- Page 2 Thank you for choosing the Physiolaser including the Photonic Satellite – the latest generati- on, high-quality laser device from Reimers & Janssen GmbH. The RJ laser design is founded on over 28 years of experience in the development and pro- duction of laser devices for medical therapy. Our profound knowledge about complemen- tary therapy methods are built into this product: gentle laser therapy for a broad scope of applications.
- Page 3 Static and movable forms On the Physioalser screen „Select Form“ you can choose between stable/fixed and three movable forms. The fixed forms offer a circle, a vertical/ho- rizontal line and apoint. The movabale forms offer a filled circle (oscillation) a square (the line moves up and down on an rectangle).
- Page 4 Change expansion On the screen „Adjust Satellite“ you can change the amplitude/size.of all forms ex- cept the point. Witht he arrow buttosn you can change the size of the form for horizontal orvertical, dimension. For example you may change the circle to an ellypse. The pilot beam (<5mW) control lamps on top of the housing will be active during the setting.
- Page 5 Movable forms Movable forms can be adjusted in the amplitude, position and speed (press button „Speed“). Please use the plus/minus buttons to im- crease or decraease the speed of the laser beam. With „+“- and „-“ the speed of the laser beam movement can be changed.
- Page 6 Function of arrow buttons, turning knobs X-Achse Active refers to left refers to right Vertical button Horizontal button Function knob knob Upper: Left: Turn right Turn left vertical stretch horizontal upsetting Amplitude Lower: Right: Trun left Turn right vertical upsetting horizontal stretch Upper: move up Left: move to the...
- Page 7 Reset individual settings With „Reset“ you can get back to the origi- nal settings. Your Satellite „memorizes“ the With „Reset“ (circle) all individual settings forms. After restart the device will will be deleted. always keep the last settings. Start the therapy After all forms are selected start the thera- py with the button „Start“.
- Page 8 The therapy mode Prior to the therapy please wear protection goggles! After the beep, the theraapy screen appears with the treatment programs and all the set parameters. During the therapy, a short beep willbe an- nounced every fifteen seconds. The timer will count down to zero, and the administe- red amount of energy increases.
- Page 9 Speed and temperature increase Therapeutic options With your Satellite you can select and irradiate geometric forms in order to treat the body in correct dimension fitting to the body part. Additionally you can determine the speed of the movement of the beams. By means of this innovative options you may apply more therapeutic effect: If you want a more point orientated therapy, slow down the speed this will bring more heat to the body, in case you want less heat, simply reduce the speed.
-
Page 10: Care And Maintenance
Care and maintenance Cleaning and disinfection Unplug the power cord of the Satellite unit before beginning all cleaning and care! Please ensure that you do not use sharp or caustic agents (e.g. acetone) when cleaning the plastic parts. Avoid getting moisture in the housing. A damp cloth is the best cleaning tool. To disinfect the device, use a soft cloth that has been dampened with a mild DGHM-appro- ved [DGHM=Deutsche Gesellschaft für Hygiene und Mikrobiologie=German Hygiene and Microbiology Association] disinfecting agent. -
Page 11: Technical Description
Technical description Technical Data Laser therapy proeb cl. 3B Satellite Weight 4 kg Dimension drive unit (L x D x H) 38 cm x 21 cm x 10 cm Transport and storage Room temperature -20° C bis +40 C Relative humidity 30% bis 75% Atmospheric pressure 700 hPa bis 1060 hPa... -
Page 12: Guarantee And Disposal
Guarantee and disposal Guarantee The manufacturer’s guarantee is valid for 24 months. The manufacturer is only responsible for the features warranted by the user manual, if the device has been operated carefully according to the user manual. Readjustment, calibration and maintenance or repairs should only be performed by the retailer, otherwise the guarantee expires. - Page 13 Manufacturer / Distributor REIMERS & JANSSEN GmbH Photomedicine — Laser Therapy Fabrikstr. 22 79183 Waldkirch, Germany Tel. +49-7681-4934149 Fax +49-7681-4934149 www.rj-laser.com service@rj-laser.com Quality Management ISO 13485: 2003 + AC:2003 V. 1.2, 25.05.2012 Distributor...
