Arista ARS-0002-A01 Quick Start Manual

Talk to us. We listen.
2-Channel Analog In/Out Dante
ARS-0002-A00
ARS-0002-A01
ARS-0200-A00

Quick Start Guide

1
Features
• Compact design, easy to use, supports hot-plug.
• Easily and freely convert between analog audio signal and Dante TM digital audio signal.
• Built-in 2 input or 2 output audio channels.
• Extends audio, control, Ethernet, and power over a single affordable network cable.
• Replaces multiple analog or multi-core cables with only a network cable, cost-effective, versatile.
• Extends uncompressed high-quality audio signal with near-zero latency.
• Audio signal transmission latency is adjustable(ARS-0002-A01).
• Transmits high quality 2-channel audio safely and reliably.
• Perfectly supports Dante software, the network and audio routing can be easily expanded and
reconfigured with just a few mouse clicks.
• PoE support, Line powering function compliant with IEEE802.3af.
• Built-in lightning & surge protection.
2

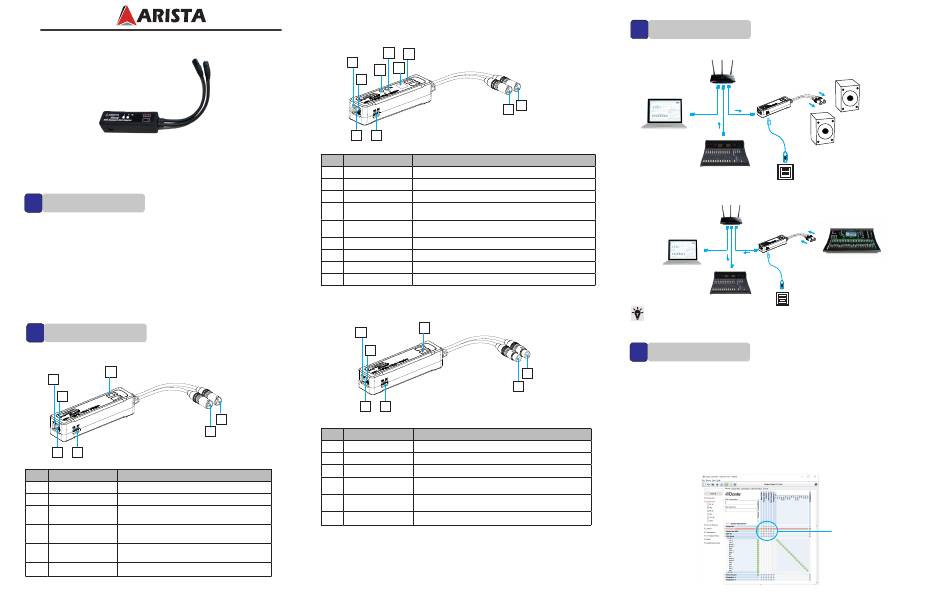

Product overview
ARS-0002-A00
7
5
6
1 2
No. Connector Description
1 RJ-45/PoE LAN port For network connection, connect to network device.
2 DC 5V IN 5V DC power input
Analog audio signal out to audio device(mixing console, speak-
3/4 Audio out
er, headphone,amplifier etc.)
Network bandwidth Lights yellow: current network bandwidth >100Mbps
5
indicator Off:network bandwidth <10Mbps
Lights green: No data transmission
6 Data transfer indicator
Flashes green: data is transmitting
7 Power indicator Light red: Analog audio signal out
ARS-0002-A01
TM Adapter
8
5
7
6
1 2
No. Connector
1 RJ-45/PoE LAN port
2 DC 5V IN
3/4 Audio out
Network bandwidth
5
indicator
6 Data transfer indicator
7 Latency up
8 Latency down
9 Latency dispaly
10 Signal out indicator
ARS-0200-A00
5
6
1 2
4
3
No. Connector
1 RJ-45/PoE LAN port
2 DC 5V IN
3/4 Audio IN
5 Network speed indicator
6 Data transfer indicator
7 Signal in indicator
10
9
4
3
Description
For network connection, connect to network device.
5V DC power input
Analog audio signal out to audio device(speaker, headphone,amplier etc.)
Lights green: current network bandwidth >100Mbps
Off:network bandwidth <10Mbps
Lights green: No data transmission
Flashes green: data is transmitting
Press this button to raise latency
Press this button to lower latency
Displays latency time
Light red: Analog audio signal out
7
4
3
Description
For network connection, connect to network device.
5V DC power input
Analog audio signal input to media device(PC,mixing console etc.)
Lights yellow: current network bandwidth >100Mbps
Off:network bandwidth <10Mbps
Lights green: No data transmission
Flashes green: data is transmitting
Light red: Analog audio signal input
3
Connections
1. Connection diagram for ARS-0002-A00 and ARS-0002-A01
(
Converting a Dante TM signal into an analog audio signal)
Router
ARS-0002-A00
/ARS-0002-A01
Line out
PC
RJ45/PoE
LAN cable
Line out
Line in
USB cable
Audio signal input source
(Dante TM mixing console etc.)
USB Power supply
2. Connection diagram for ARS-0200-A00
(Converting an analog audio signal into a Dante TM signal)
Router
RJ45/PoE
PC
LAN cable
ARS-0200-A00
Line out
USB cable
Audio out devices
( Dante
TM mixing console etc.)
USB Power supply
TIPS:
1. If you use a router with PoE support in the audio system, then USB power supply is not required.
TM
2. Connect the Arista In/Out Dante adapter d epending on your desired application.
4
Extra Controls
Controlling the Dante TM adapters with the Dante TM
Arista 2-Channel In/Out Dante TM adapters can be monitored and controlled by the Dante
allows users to configure and route audio around Dante networks. Dante
application that enable user easily set up a Dante TM network. Within seconds of a Dante-enabled device
connecting to a network, Dante Controller will automatically discover and display the device, allowing you
to configure channels and route audio.
TM
Follow the below steps to set up a Dante network for controlling.
1. Download and install the Dante Controller from Audinate website (www.audinate.com).
2. Connect the computer to the router using a standard network cable.
3. Launch the "Dante TM Controller" software.
4. In the routing menu, click the "+ / -" symbols for the devices to configure the audio routing.
Once set up and configured the audio routing between audio device, the audio device will remember and
save the settings, the computer and the "Dante TM Controller" software can be disconnected from the net-
work.
Audio out devices
(Speaker etc.)
Audio signal input source
(Analog mixing console etc.)
Line in
Line out
controller
TM controller which
TM controller is a free software
+/- symbos
