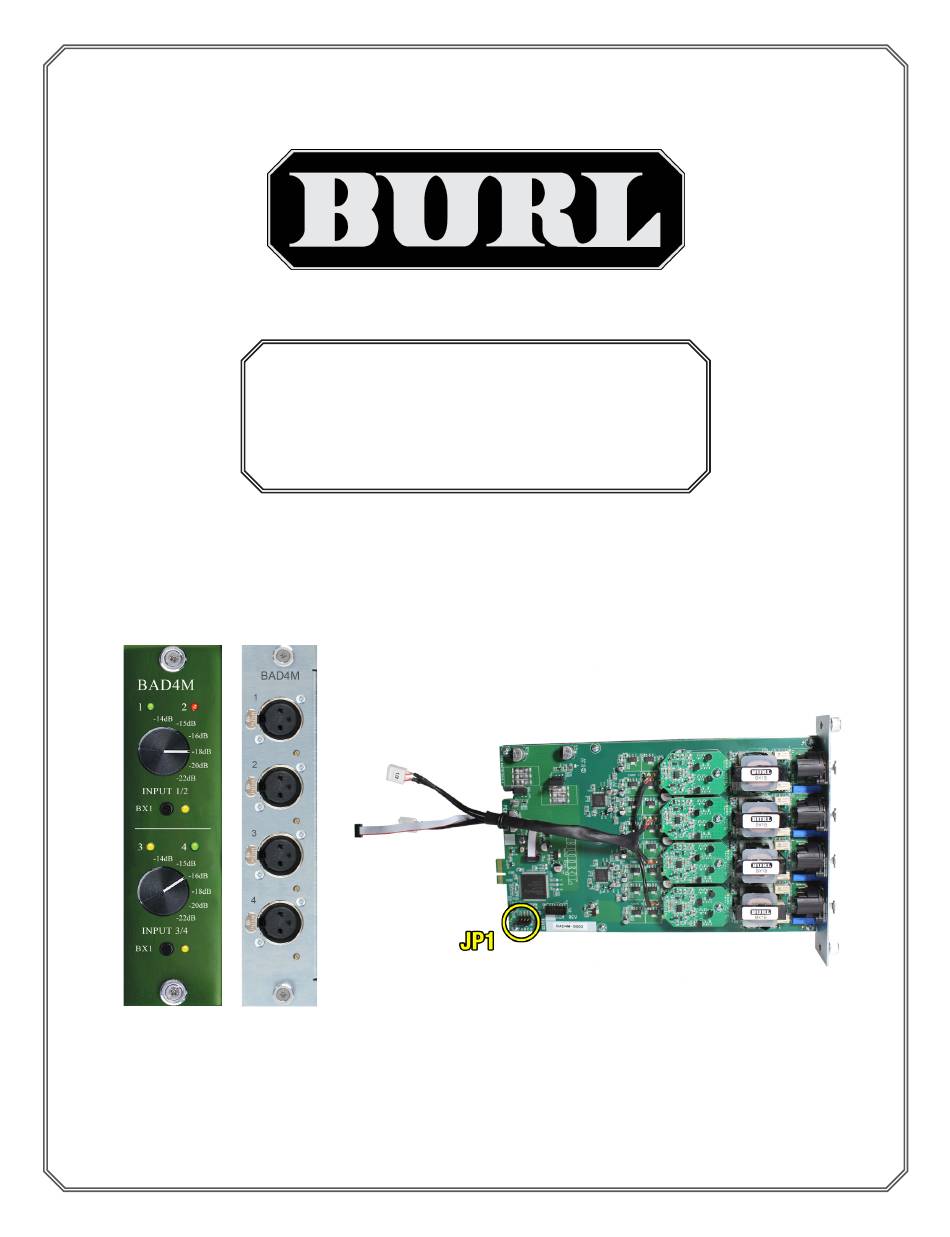

- Page 1 BAD4M DAUGHTER CARD Quick Start Guide REGISTER YOUR PRODUCT TO ACTIVATE WARRANTY www.burlaudio.com/register Revision A November 7, 2019...
- Page 2 Important information regarding BAD4M latency: The BAD4M uses jumpers on “JP1” (as shown on cover) to adjust 2 variables: ADC filter selection, high pass filter, and AVID HDIO delay matching. Jumper Settings for “JP1” Jumper A - ADC Filter Setting: In default mode with no jumpers set, the BAD4M uses the short delay filter with the classic “Burl Sound”.
- Page 3 *NOTE- See B16 Mothership Quick Start Guide for more information Image 9: With the B16 cover removed, Image 10: Pull the cables through to the install the BAD4M into the card guides as front of the chassis. Attach the 4-pin shown (BDA4M shown here). Make sure...
- Page 4 Front Panel: Rear Panel: Image 11: BAD4M Front Panel Image 12: BAD4M Rear Panel BAD4M Analog Input Switch and Level Attenuation See the table below for maximum analog input at each level setting:...
- Page 5 BAD4M Op-amp Configuration The BAD4M Daughter Card can be customized with four channels of the BOPA14, four channels of the BOPA11, or two channels of each op-amp. The BOPA11 is ideal for mastering, with maximum clarity, detail, and minimal dis- tortion.
