Page 1: Instruction Manual

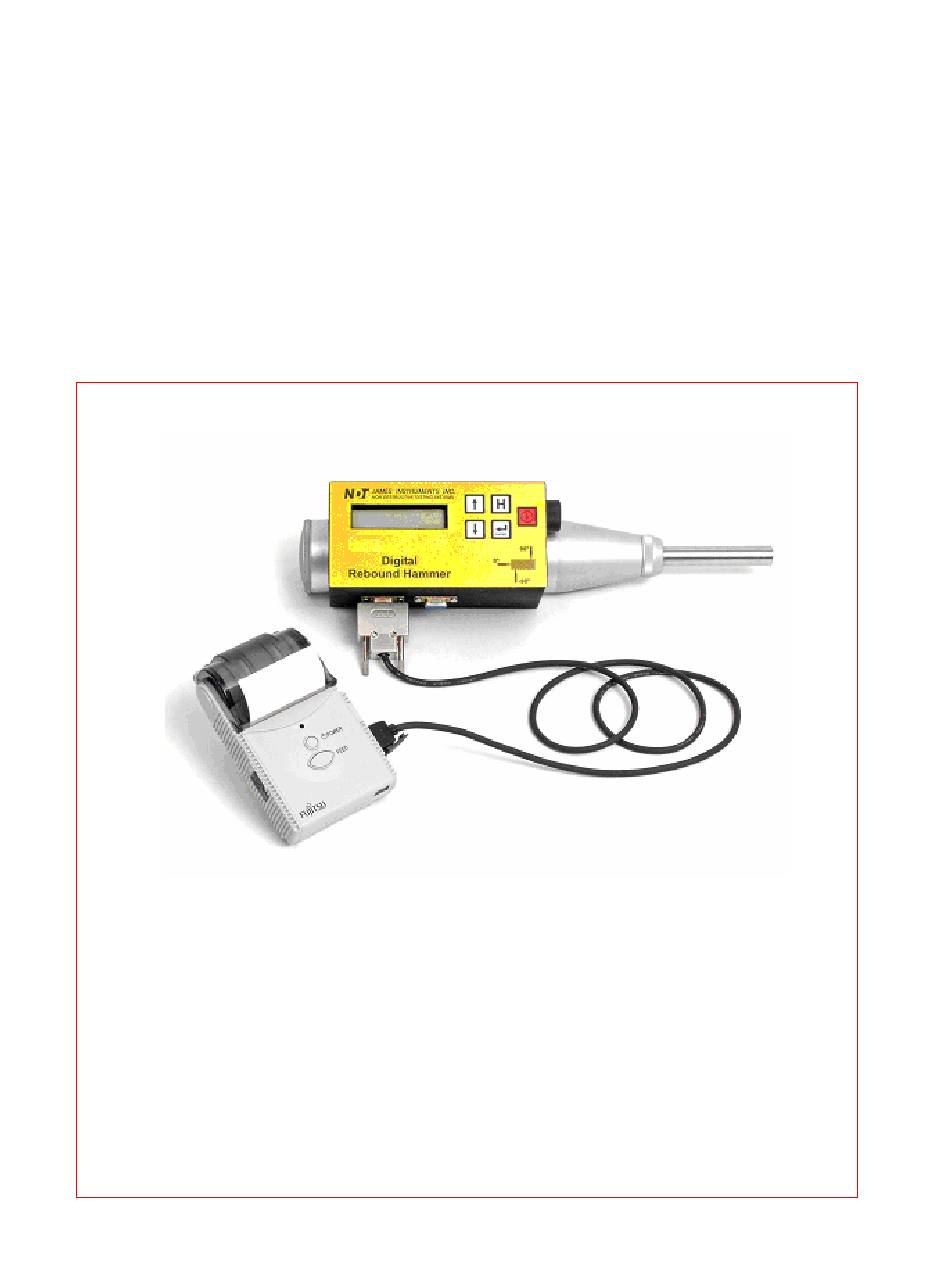

W-D-2005, W-D-1705, W-D-1505 Digital Hardness tester Instruction Manual James Instruments Inc. 3727 N. Kedzie Avenue Chicago, IL, 60618 Phone: (773) 463-6565 1-800-426-6500 Fax: (773) 463-0009 www.ndtjames.com... -
Page 2: Table Of Contents
CONTENTS OVERVIEW ....................... 4 MEASUREMENT ...................... 6 MEASUREMENT PRINCIPLE................6 2.1.1 Impact direction ....................6 2.1.2 Surface texture ....................6 2.1.3 Moisture effect....................6 2.1.4 Selection of the test area.................. 7 TESTING PROCEDURE ..................7 2.2.1 Test area ......................7 2.2.2 Hammer positioning .................. - Page 3 TEST PRINTER....................15 INITIALIZATION (PLEASE NOTE THIS PROCEDURE HAS BEEN PERFORMED AT THE FACTORY AND IS LEFT HERE FOR REFERENCE PURPOSES ONLY)..16 ............16 NITIALIZE EMORY AND ECORD UMBER ....................16 AMMER ..................16 ALIBRATING THE AMMER ................. 16 NSTRUMENT ONFIGURATION MAINTENANCE......................
-
Page 4: Overview
The NDT James Instrument’s Digital Hammer is a digital meter used for measuring the hardness of paper rolls. Menus are used to navigate through the functions of the instrument. This manual covers the use of the W-D-2005 system, the W-D- 1705 and W-D-1505 systems. The differences among these units are the capabilities to print the results in the field and the ability to upload data from the instrument to a PC. - Page 5 INSTRUCTIONS FOR USE 1. Having taken the test hammer from its case, gently push the piston inwards pressing it against a stiff surface (held the hammer with both hands when using it). The piston will release itself from its catch and emerge from the body of the device which will then be ready for testing.
-
Page 6: Measurement
2 MEASUREMENT 2.1 MEASUREMENT PRINCIPLE The Digital Hammer measures the rebound number of a paper and film rolls. The rebound number is related with the harness, stiffness and strength of the material. There are several factors that must be taken into account when analyzing the rebound number of rolls. -
Page 7: Selection Of The Test Area
2.1.4 Selection of the test area The member to be tested should be at least 10 cm thick and it should be fixed within the structure. Testing areas exhibiting honey combing, high porosity or scaling should be avoided. 2.2 TESTING PROCEDURE 2.2.1 Test area The test area should be selected to obtain at least 10 readings with the rebound hammer. - Page 8 CONFIG – This mode is used to select the Operating Language (English or Spanish) and a Discard Value. Also this mode is used to reset the Test Number to zero. UPLOAD DATA – This mode is used to send stored Test Records to a PC Computer PRINT –...
-
Page 9: Keys
Test Record but selected the mode. 4.5.2 Entering Test Routines When power is first turned on “NDT James Inst.” will be displayed for 5 seconds. If the ESC key is pressed during this time the instrument will use a test menu to enable the operation to perform instrument tests and initialization. -
Page 10: Operating Modes
5 Operating Modes 5.1 REBOUND Test Record Number Number of Impacts Current Time 0 - 936 0 - 20 Rebound Value Current Date R: Rebound When this mode is selected an operator may cock the hammer and take impact readings. The display will indicate the rebound value and the number of impacts taken. -
Page 11: Angle
5.2 ANGLE Selecting the Angle Mode will enable the operator to select the angle of impact for the hammer. When this mode is selected, displayed will be the current impact angle. Using the Up and Down Arrow Keys other angles may be selected. -
Page 12: Printed Format
5.5.2 Printed Format The following are two examples of printed Test Records. Rebound Test Record ********************************* NDT JAMES INSTRUMENT ********************************* Test Record Number TEST RECORD NUMBER Date and Time (24 Hr clock) July 31, 2006 09:39 RECORD TYPE: Rebound Rebound impact data... -
Page 13: Operation
When this mode is selected displayed will be “Cock Hammer” or if the hammer is already cocked the message “Read Anvil will be displayed. Insert the hammerhead into NDT James’ calibration anvil and release the hammer. The hammerhead will impact the calibration surface and rebound 80 counts. -
Page 14: Test Functions
Test functions can be accessed by pressing the ESC Key when power is first turned on and “NDT James Inst.” is displayed. Several functions are available for both testing and initialization. To return the instrument back to it’s normal functions will require that power be turned off and then back on. -
Page 15: Set Hammer Zero
6.8 TEST PRINTER When this mode is selected a short test message will be printed and this mode will be automatically exited. Below is what the printed test message should look like. ********************************* NDT JAMES INSTRUMENT ********************************* 0123456789 ABCDEFGHIJKLMNOPQRSTUVWXYZ Abcdefghijklmnopqrstuvwxyz... -
Page 16: Initialization (Please Note This Procedure Has Been Performed At The Factory And Is Left Here For Reference Purposes Only)
Turn on power, select the “CAL HAMMER” menu item and press the ENTER Key. Displayed is “Cock Hammer” or if the hammer is already cocked the message “Read Anvil will be displayed. Insert the hammerhead into NDT James’ calibration anvil and release the hammer. The hammerhead will impact the calibration surface and rebound 68 counts. -
Page 17: Maintenance
The impact plunger and housing should be wiped using a dry and clean cloth after using the instrument. Avoid the use of abrasives or solvents to clean the hammer and do not use water to clean it. 9 SPECIFICATIONS Digital Model W-D-2005, W-D-1705, W-D-1505 Display 2x16 trans-reflective Operating temperature 32 to 122 ˚F (0 to 50 ˚C)
