Table of Contents

Need help?

Do you have a question about the XC-3D55 and is the answer not in the manual?

Questions and answers

Summary of Contents for Apex Instruments XC-3D55

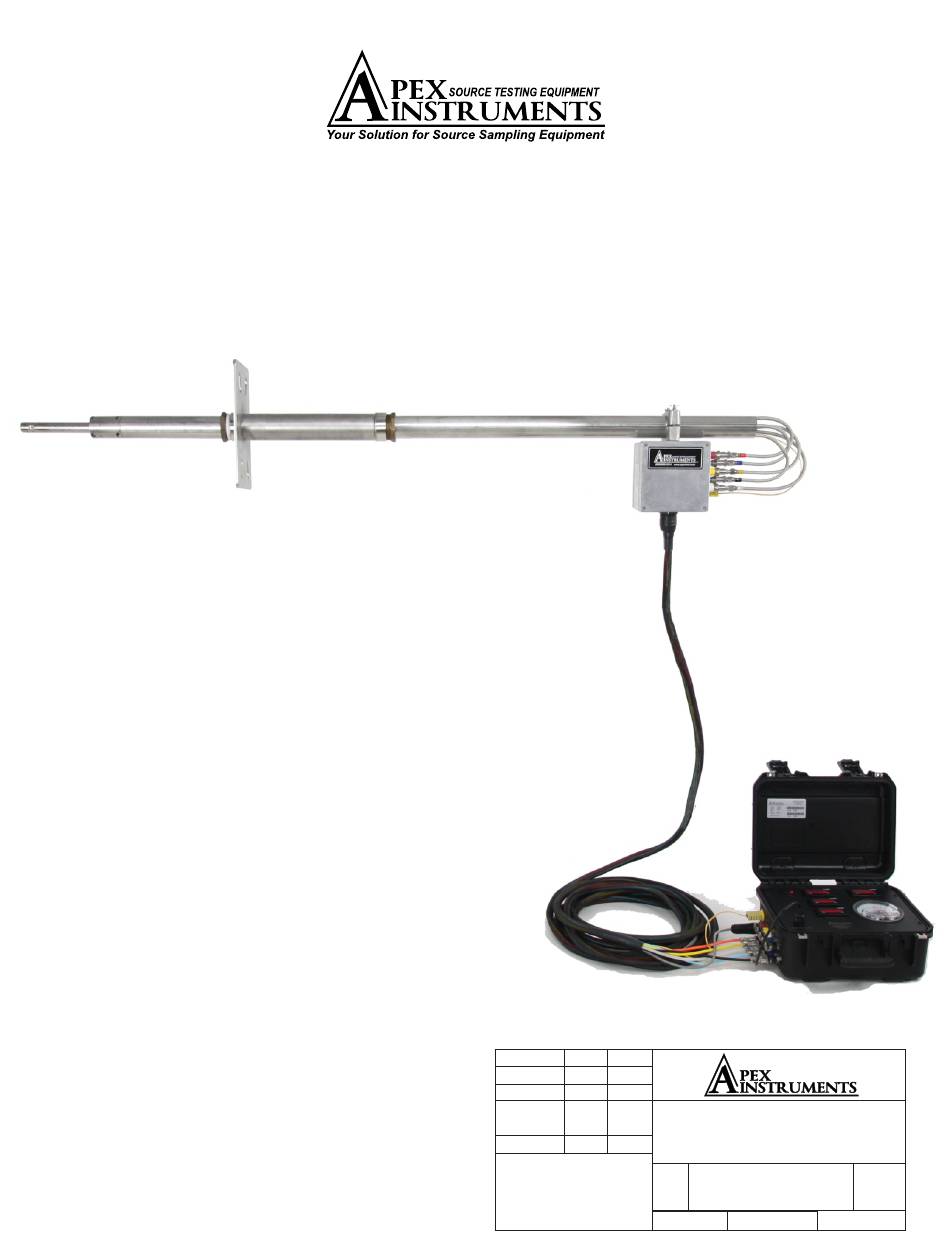

Page 1 XC-3D55 3D Flow Measurement Console Operators Manual UNLESS OTHERWISE SPECIFIED: NAME DATE CREATED DIMENSIONS ARE IN INCHES 9.26.17 TOLERANCES: CHECKED FRACTIONAL ANGULAR: MACH 1 BEND 1 TITLE: ENG APPR. TWO PLACE DECIMAL .010 XC-3D55 THREE PLACE DECIMAL .005 MFG APPR.
Page 2 Apex Instruments, Inc. 204 Technology Park Lane, Fuquay-Varina, NC 27526. Warranty This equipment is sold subject to the mutual agreement that it is warranted by Apex Instruments, Inc. free from defects of material and of construction, and that Apex Instruments, Inc. liability shall be...
Page 3: Table Of Contents
Pages Page 1..Warranty and Important Notice Page 2..Table of Contents and Figures Page 3..Introducton Page 4..Recommended XC-3D55 System Accessories Page 5..Recommended Calibration and Leak Check Accessories Page 6..Components Page 7..Electrical System Components Page 8..Electrical System Schematic Page 9..Plumbing Schematic Page 10..Pitot Heads Page 11-12..System Assembly...
Page 4 NO mass emissions and heat inputs. The XC-3D55 was designed to be utilized with Methods 2, 2F, 2G and 2H. US EPA Method 2G allows Type S probes and 3–D probes (DAT and spherical) to be rotated into the flow to measure total velocity pressure and yaw angle.
Page 5: Recommended Xc-3D55 System Accessories
Pitot Head UINC-3D- XC-3D55 Figure 1 Complete XC-3D55 System Unpacking and Equipment Check The system is carefully packaged to reduce the likleyhood of damage in transit. Unpack the contents carefully, saving all the packing material until the parts have been examined for shipping damage.
Page 6: Recommended Calibration And Leak Check Accessories
Recommended Calibration and Leak Check Accessories Part # Description DHM-M100 Meriam Digital Hand-Held Manometer, 0-28 inch H2O Selectable Range, English/Metric A-396A Dwyer Calibration Pump, Generate Pressure and Vacuum, NIST 0” to 5” H2O M5C-22 Thermocouple Simulator Source 12-1057 Digital Display Reference Inclinometer Speed Square Probe Leak Check Plugs QC-F4-SS...
Page 7 Components Inclinometer The INC-S6-1800 incremental inclinometer contains a high resolution digital tilt sensor that reports the angle of the probe with respect to gravity in degrees with real-time TTL outputs. The weight is placed on one side of a wheel assembly causing it to remain stationary with respect to gravity.
Page 8: Electrical System Components
Electrical System Components The XC-3D55 3-D Flow Measurement console is factory-configured for 120VAC/60Hz and 240VAC/50Hz electrical power. The Electrical Schematic for the console is presented on page 5. A front panel-mounted circuit breaker rocker switch activates the Main Power and power supply. The power supply energizes the velocity pressure and pitch differential pressure transducers, the inclinometer (yaw measurement device) and the temperature display.
Page 9: Electrical System Schematic
Common Pitch (+) Velocity Pitch (-) Pressure Pressure (+) Display Pressure (-) Pitch Pressure Display Pitch Angle +5VDC Display Common +12VDC Ground Neutral Line Inclinometer Amphenol M-PSRD35A Main Power Figure 5 XC-3D55 Electrical Schematic Revision:01 Page 8 of 23 9/26/2017...
Page 10: Plumbing Schematic
(P4-P5) and are connected to LED process meters scaled and calibrated to the appropriate engineering units. A Magnehelic™ differential pressure gauge is utilized to indicate the Yaw Null Pressure (P2-P3). QUICK CONNECTS TRANSDUCERS MAGNEHELIC 2/12/2015 Figure 6 XC-3D55 Plumbing Schematic Revision:01 Page 9 of 23 9/26/2017...
Page 11: Pitot Heads
The unique serial number of the pitot is machined in the head. If an additional copy of the calibration is needed, please contact Apex Instruments,Inc at 877-726-3919. The Type-S Pitot (Figure 7) is designed to measure gas velocities. When the pitot is faced into the gas stream, flow and the pressure difference between the two ports equates to the velocity pressure.
Page 12: System Assembly
System Assembly 1) Connect the 1/4 inch compression fittings of U-PTX-# together to connect the stainless tubes of the pitot tube head (3DPT4) to the PTFE lines. Connect the Thermocouple connectors. 2) Slide the pitot tube head through the extension (32PTX-##T4Q4) into and through the clamping area of the extension.
Page 13 14) Slide the probe into the Universal Probe Extension (PF-346XT32S) 15) Connect the Umbilical/Pod Assembly (UINC-3D-##) to the XC-3D55 Console by connecting the male quick connects to the female quick connects (P1 to P1, P2 to P2, P3 to P3, P4 to P4,P5 to P5).
Page 14 Recalibration Recalibrate the probe either within 12 months of its first field use after its most recent calibration or after 10 field tests, whichever occurs later. In addition, whenever there is visible damage to the probe head, the probe shall be recalibrated before it is used again. Calibration Calibration of inclinometers pressure measuring devices, transducers and process meters/display are required before initial use in the field.
Page 15: System Leak Check
System Leak Check 1) Connect the pressure measuring device and the pressure generating device. Connect the quick connect from the pressure measuring device to the A1 Audit Port on the console. 2) Plug the P1 Velocity Pressure port on the pitot probe head 3) Pressurize the probe’s A1 pressure port until at least 7.6 cm H2O (3 in.
Page 16 Calibration Checks of Pressure Measuring Devices Prior to initial field testing, each pressure transducer requires a 3 point calibration check with a precision manometer or a NIST traceable pressure source within a year of its most recent certification. 1) Disconnect the P1 and P2 lines from the console. 2) Press Reset to Zero.
Page 17 Calibration Checks of Temperature Measuring Device 1) Connect the NIST traceable Reference Temperature generating device to the Thermocouple Jack on the console. 2) Starting at ZERO °F, check the temperature display on the console at 0°F, 100°F, 200°F, 300°F, 400°F and 500°F. The console display temperature reading must be +/-5°F of the reference reading. Should any reading FAIL the acceptable limit, consult the Calibration Procedures section.
Page 18: Back Purging System
Figure 11 Figure 10 Using A-350 pump to pressurize P1 Line Figure 11 Using A-350 pump to pressurize P1 Line through A1 Port on the XC-3D55 Console coming directly out of Probe Extension Revision:01 Page 17 of 23...
Page 19 New Replacement RedLion CUB5 Thermocouple Meter Set-Up(TC-CUB5TCB0) Press and hold SEL for 2 seconds Display will now alternate from Pro to NO screen Press RST once 1- Inp Your screen should display 1- InP Press SEL once typE tc-j Display will now alternate from tyPE to tc-J Press RST once to select Type-K ( typE Display will now alternate from tyPE to tc-...
Page 20 New Replacement RedLion CUB5 Process Meter Set-Up(M-CUB5PB00) Press and hold SEL for 2 seconds Display will now alternate from Pro to NO Press RST once 1- Inp Your screen should switch to 1- InP Press SEL six times StyLE Display will now alternate from StyLE to KeY Aply Display will now alternate from Key to APLY Press SEL once to move to InP 1...
Page 21 RedLion CUB5 Set for Zero on Reset Press and hold SEL for 2 seconds 3 Dsp Press RST 3 times to 3 DSP zero Press SEL 4 times to Zero Press RST for Yes Press SEL until End The display will automatically revert to standard displaying screen after displaying END. RedLion CUB5 Lock Procedure Press and hold SEL for 2 seconds Press RST 3 times to 3 DSP...
Page 22 RedLion CUB5 UnLock Procedure Code Press and hold SEL for 2 seconds Press RST repeatedly until reaching desired 1st number Press SEL to change 1st number Press RST repeatedly until 002 002 reaching desired 2nd number Press SEL to change 2nd number Press RST repeatedly until reaching desired 3rd number Press SEL to change 3rd number...
Page 23: Methods Comments
Methods Comments The general information below includes comments on sampling techniques, compensation for temperature and pressure, number of passes required, and accuracy and speed. To summarize, the 3-D probe is used to determine the velocity pressure and the yaw and pitch angles of the flow velocity vector in a stack or duct.
Page 24 Mark Traverse Points on Probe according to Method 1 Marks Figure 10 Method 1 Traverse Point Determination Marks Stack Axis Yaw Angle Pos (+) Yaw Angle Neg (-) End View of Probe Direction of Flow Figure 11 Probe Yaw Orientation Positive/Negative Revision:01 Page 23 of 23 9/26/2017...
