IPETRONIK M-THERMO 96 Hardware Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Hardware_Manual_M-THERMO_96
9. Juli 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-THERMO 96 and is the answer not in the manual?

Questions and answers

Related Manuals for IPETRONIK M-THERMO 96

Summary of Contents for IPETRONIK M-THERMO 96

  • Page 1 Hardware_Manual_M-THERMO_96 9. Juli 2019...

  • Page 2: Table Of Contents

    5 Device configuration via IPEmotion DAQ software ......28 Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com...

  • Page 3: Important And General Information

    3. Before using an IPETRONIK measurement system in the vehicle it has to be verified that no function of the vehicle, which is relevant for secure operation, might be influenced: - by the installation of the IPETRONIK measurement system in the vehicle, - by an potential malfunction of the IPETRONIK system during the test drive.

  • Page 4: Terms And Conditions

    Website: www.ipetronik.com Limited commercial partnership with its head office in Baden-Baden, registry court HRA No. 201313 IPETRONIK Verwaltungs-GmbH Baden-Baden is an individually liable society, registry court Mannheim HRB No. 202089 CEOs: A. Wocke, C. Buchholz Technical support and product information e-mail: support@ipetronik.com Hardware_Manual_M-THERMO_96 IPETRONIK GmbH &...

  • Page 5: Introduction

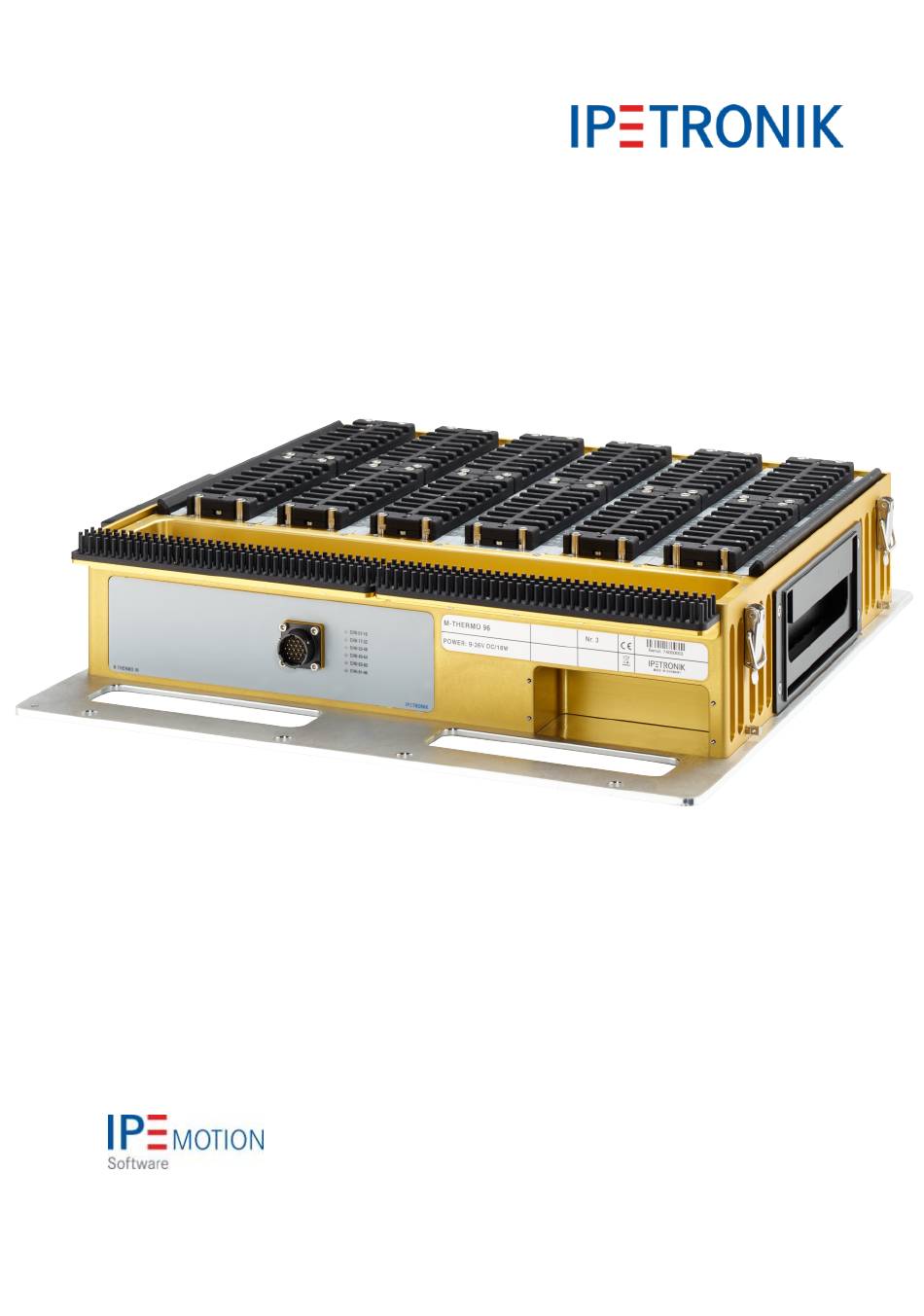

    2 Introduction 2 Introduction The M-THERMO 96 is a thermocouple measurement device with 96 universal inputs. The unit support the TC types E, J, K, N, R, S, T. The measurement system meets the requirements of the aerospace industry. The primary use case is for test bench applications.
  • Page 6 2.1 Hardware setup The following drawing shows interface cable for M-THERMO 96. It consists of 2 CAN interfaces represented as LEMO 9-pole M-CAN connector and the second one in the SUB-D 9 format. The 2 CAN busses are connected to the IPEhub2 which is then sending the data over Ethernet to the test bench PC.
  • Page 7 2.1 Hardware setup As indicated below from the IPEhub2 an Ethernet cable is then connected to the PC. Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 7/30...

  • Page 8: Can Interface

    2.1.2 CAN interface The M-THERMO 96 can also operate with an CAN interface. In this setup it is recommended to uses a 2 channel CAN card like IPEcan FD Pro. With a CAN interface, you have the ability to use it in many combinations with other CAN based measurement modules.
  • Page 9 In the CAN card based set-up the cabling requirements are higher. The cable 520-502 is providing the SUB-D interface to the CAN card and M-CAN T Junction is required to join the M-CAN 9-pole connectors. Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 9/30...

  • Page 10: Device Configuration Via Web Interface

    3 Device configuration via web interface The intended standard use case is to use the M-THERMO 96 with an IPEhub2 over an Ethernet interface. The configuration is done over a web interface with can be reached over the following address: ipe.connect.local...

  • Page 11: Page Configuration - All Channel Overview

    The default view is the all channel table instrument which provides readings for each channel. In the factory configuration the first reading in the thermocouple voltage in micro Volts and in the second channel the resistance in mili Ohm is provided. Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 11/30...

  • Page 12: Chanel Configuration

    Date of the last calibration. Adjust Date Date of the last channel adjustment. Firmware updates, calibrati- on and adjustments are provided by IPETRONIK. Sample rate Can be configured for each block of 16 channels individually. The sample rate can range 0.0167 up to 100 Hz.
  • Page 13 3.2 Chanel Configuration In the example blow you can see the drop down list to edit the Sensor mode. You can switch from Voltage to one of the different Thermocouple types. Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 13/30...
  • Page 14 3.2 Chanel Configuration In the example blow you can configure the Brake detection resistance. The takes the internal resistance of the thermocouple line into account to adapter the brake detection sensitivity. Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 14/30...
  • Page 15 3.2 Chanel Configuration You save the settings with green confirmation button in the bottom line. Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 15/30...
  • Page 16 3.2 Chanel Configuration The system is organized in 6 separate blocks consisting of 16 channels each. You can expand and collapse each block by sing the arrow buttons on the right-hand side. Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 16/30...

  • Page 17: Logger Configuration

    Thermo scanner as defined in the setting of you mobile device. In the case you have several thermo scanner online you need to switch in the mobile device settings to the Thermo scanner in concern. Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 17/30...

  • Page 18: Settings Configuration - About

    Tis work space is dedicated to check the software version of the web application and the build number in the About dialog. All other functions are not relevant at this stage of the implementation. Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 18/30...

  • Page 19: Web Display Page And Instrument Configuration

    All instrument and page configurations are stored on your local PC. At this stage of implementation, you cannot save the confi- Information guration settings under a specific file name and load and modify the configuration later on. Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 19/30...
  • Page 20 4 Web display page and instrument configuration You need to navigate the PAGE work space in order to configure a page. With the pencil tool you can access the Edit mode. Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 20/30...
  • Page 21 4 Web display page and instrument configuration Then you can add any instrument which suits you display requirements. You can also add several instruments and position the instruments via the docking windows. Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 21/30...
  • Page 22 4 Web display page and instrument configuration In this example a Table instrument was created. The Table instrument was chosen as it provides some special configuration functions developed for the M-THERMO 96 which is related to the limit configuration. Hardware_Manual_M-THERMO_96 IPETRONIK GmbH &...
  • Page 23 4 Web display page and instrument configuration With the slider ”all signals” you can add all channels to the instrument. Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 23/30...
  • Page 24 4 Web display page and instrument configuration You can activate for each unit type like temperature, voltage and resistance a global threshold level. Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 24/30...
  • Page 25 4 Web display page and instrument configuration The limit configuration includes a lower and upper threshold value and an individual color can be selected. Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 25/30...
  • Page 26 4 Web display page and instrument configuration The following screen shot is an example of limit color presentation. Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 26/30...
  • Page 27 4 Web display page and instrument configuration Below you have an example of a display page configuration with several instruments Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 27/30...

  • Page 28: Device Configuration Via Ipemotion Daq Software

    5 Device configuration via IPEmotion DAQ software 5 Device configuration via IPEmotion DAQ software The M-THERMO 96 can be used together with IPEmotion data acquisition software also. The IPEmotion software is available on the IPETRONIK website for download. When you have installed the software, you need to activate the IPETRONIK PlugIn-X in the OPTIONS.
  • Page 29 CAN interfaces 3 channel blocks with 16 channels are listed. For each analog input to readings are provide. In the default setting one reading is in ¸ t V and the other reading in m Ohm. Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 29/30...
  • Page 30 When you select a single channel you have access to the scaling tab sheet. In there you can change the senor mode to thermocouple types or Voltage. There are a lot more configuration function within IPEmotion. For more details please refer to the IPEmotion software manual. Author: FOT Hardware_Manual_M-THERMO_96 IPETRONIK GmbH & Co. KG ipetronik.com 30/30...
