Summary of Contents for ShowPro RDM Xpress Kit

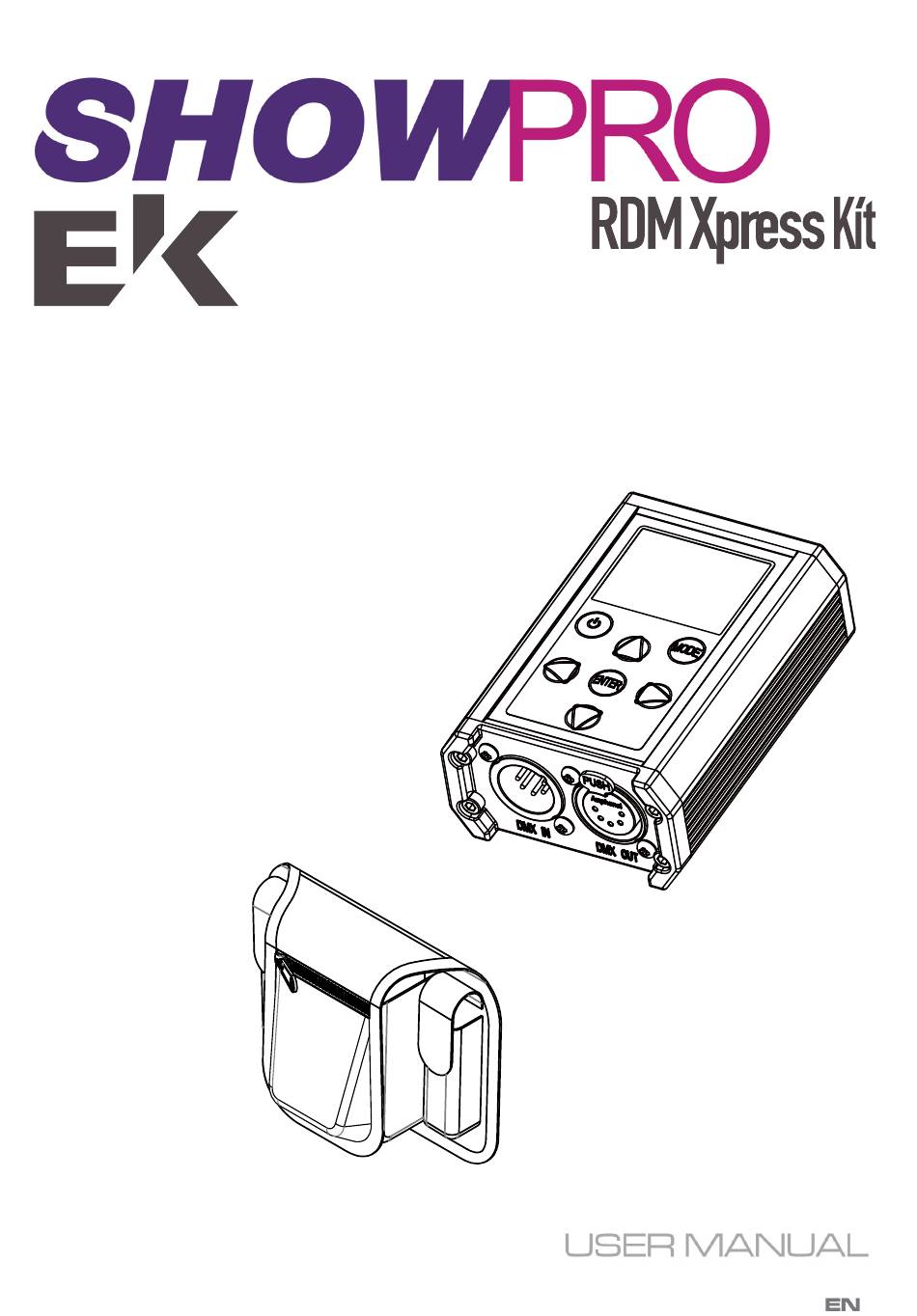

- Page 1 Multi-purpose handheld diagnostic, addressing, recording and playback tool...
- Page 2 INTRODUCTION RDM Xpress Kit is a multi-purpose handheld diagnostic, addressing, recording and playback tool. FEATURES - Rechargeable handheld multifunction RDM & DMX tool kit - Works as a portable DMX controller and recorder - Remote device management of RDM-capable xtures - Scrolling menu with up-down and left-right navigation buttons FUNCTIONS &...
- Page 3 FUNCTION MENU CHART No RDM compatible products No Fixtures Found! connected to the RDM Xpress Kit Shows information about each product. Some attributes will allow * (choose from list * (choose from the changes to be made. See each Discovering...
- Page 5 CONTROL PANEL OVERVIEW ENTER button: Press to con rm displayed menu option or to select currently displayed values On/O button MODE button: Press to exit current Navigate LEFT function or menu through menu Navigate RIGHT through menu Navigate UP through menu or increase numeric values Navigate DOWN through menu or decrease numeric values...
- Page 6 CABLE TEST DISPLAY KEY EXAMPLE 1 : GOOD EXAMPLE 2 : PIN 2 BAD EXAMPLE 3 : PIN 1 SHORTED TO PIN 3...
