Summary of Contents for EZ Way Comfortline II

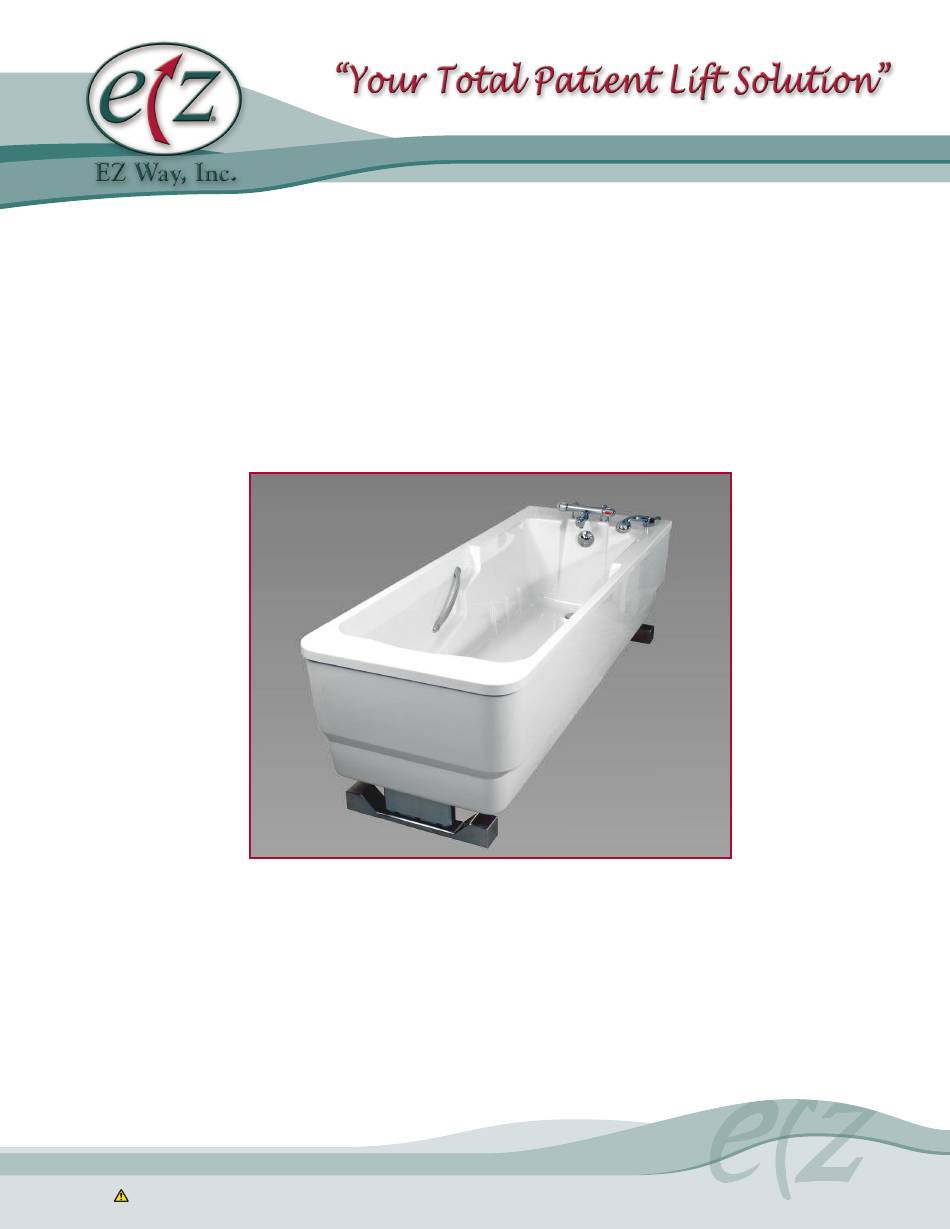

- Page 1 EZ Way Comfortline II The Wellness Bath Operator’s Instructions EZ Way, Inc. PO Box 89 Clarinda, IA 51632 1-800-627-8940 www.ezlifts.com Form 2-201 Rev. 7/30/18 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
- Page 2 Users should read this manual carefully before operating the EZ Comfortline II. This bathing system is intended for professional use only where the patient will be under the supervision of trained personnel. The system is designed for years of trouble-free operation, with proper use and maintenance.
-
Page 3: Safety Notes
The warranty and liability expire automatically if modifications or repairs are carried out or if components are exchanged or opened without EZ Way’s consent. If you have a question regarding the operation or maintenance of your EZ Comfortline II and cannot find the answer in this manual, please contact us at 1-800-627-8940. -
Page 4: Features And Controls
Features and Controls Down Comfortline II Position Description Tub side covers Legs Adjustable feet Lifting mechanism (actuators) Light/Music controls Handles Foot support slots Drain plug Thermostat with bathtub filling spout and shower Shower handle Figure 1 - Manual Up/Down Control... - Page 5 Initialization Instruction Manual An initialization should be carried out the very first Using the Bath time the bathtub is started up and after every power Lower the bath to its lowest position to calibrate the failure. actuators. Should be performed after/when: The drain plug closes (and opens) by turning the •...
- Page 6 Spray over all interior surfaces of the tub. Remove residue and debris with cloth or brush. To clean EZ Way’s Mobile Bath Lift System Chair or Stretcher attachment, position it over the tub and spray it with cleaning mixture. The...
- Page 7 AIR SPA System - Esprit 500 (Option) LED Color Light System (Option) NOTE: The operating time is restricted for safety reasons. The system (air system) switches off The light system touch control is located either at automatically after 30 minutes. the head end (on the side of the tub covers) or at the foot end (on the edge of the tub, depending on Stand-By LED...
- Page 8 Operating Instructions patient for bathing while the tub is pre-filled. • To start the music, press button (1). Press button (2) if you want to turn the music off. General Information • The volume can be turned up and down with the The touch control for the Autofill is located on rear buttons (3) and (4).
-
Page 9: Routine Maintenance
Exchange/replace all connecting hot/cold water hoses. After Approximately 12 Years • EZ Way recommends that both actuators and control system are replaced. Maintenance and/or repairs may only be carried out by qualified staff. Improper maintenance and/or repair will void the warranty. -
Page 10: Installation Instructions
Installation Instructions The HiLo Bathtub Comfortline II is delivered to you fully assembled, ready to be connected to the water and power supply at the customer’s premises and should be installed according to local guidelines and regulations. Assembly Process DO NOT DRAG NOR PUSH THE BATHTUB ACROSS THE FLOOR AS THIS COULD CAUSE DAMAGE TO THE LEGS OR ACTUATORS. - Page 11 Installation Drawing for HiLo Bathtub Comfortline II Floor drainage - Open floor drain or HI pipe DN40/50 (pipe coupling) Wall drainage - HI pipe DN40/50 (pipe coupling) Figure 9 - Installation Diagram...
-
Page 12: System Components
EZ Way 1700 Height Adjustable Bathtub Warranty: EZ Way warrants that its products are free from defects in materials and workmanship for a period of one year from the date of delivery. EZ Way mattresses and pillow of fabric covered PVC over polyester foam shall be warranted for a period of six months from the date of delivery.
