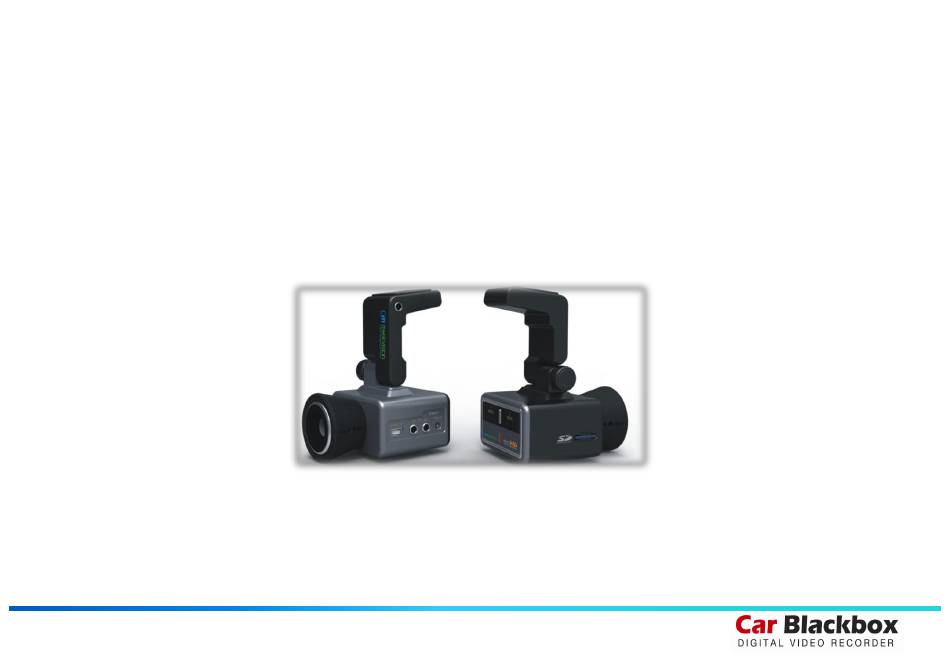

- Page 1 BlackBoxHD dual...
-
Page 2: Table Of Contents
CONTENTS Before Use Cautions upon Use Package Components Names of Product Components Installing in the Vehicle Basic Product Functions Using the Memory Card Firmware Update Key Product Features How to Operate the Product Voice Guidance on Product States and LED Display Checking through the Micro SD Card PC Viewer Features Installing the PC Viewer... -
Page 3: Before Use
Chapter 01┃ Before Use Cautions upon Use Information Contents intended to prevent potential dangers by notifying consumers on the level of damage (bodily, monetary) of product safety matters (electric shock, fire, explosion) in cases of consumer misuse. Read the following contents carefully for proper use. Safety Warnings –... - Page 4 Chapter 01┃ Before Use Cautions upon Use Product related Never clean the product with chemical materials, such as benzene or thinners. Such materials may damage the device surface or cause internal malfunctions. Do not subject the product to severe shock or introduce foreign objects. Please heed caution as the introduction of foreign substances could lead to product malfunction.
- Page 5 Chapter 01┃ Before Use Cautions on Safety and upon Use Driving related Refrain from prolonged use with the ignition turned off. Such acts could lead to battery discharge. Do not watch or operate the product while driving. Operating the product while driving may result in accidents. Heed caution as the quality of recorded videos may not be good in cases of sudden changes to brightness, such as when entering a tunnel, when the backlight is very strong, or when there is no light source during the night.
- Page 6 Chapter 01┃ Before Use Cautions on Safety and upon Use GPS Related Semi-commercial GPS products possess a margin of error of approximately 15m. Buildings, underground roads, tunnels, and roadside trees could increase the margin of error or prevent the GPS from being properly received.
-
Page 7: Package Components
Chapter 01┃ Before Use Package Components Basic Components Cigarette Jack Cable Product Installation CD T9CDR Device Video Cable Mount Cable Clip Micro SD Card User’s Manual Supplementary Adhesive USB Cable Sticker • Check to see that all of the product components, shown above, are included. •... -
Page 8: Names Of Product Components
Chapter 01┃ Before Use Names of Product Components Names of Product Components Mount (external GPS included) DC Power Input Video Input port Terminal 10) GPS Camera Lens Input terminal USB Port VIDEO Output port Micro SD Slot Record Button Speaker Cancel Button ※... - Page 9 Chapter 01┃ Before Use Names of Product Components Descriptions of Product Components Name Description 1) VIDEO output port Displays live video of recorded scenes . 2) USB Port When connected with a PC, plays recorded videos and used to copy files to storage devices. 3) Speaker Outputs product operating states through voice guidance.
-
Page 10: Installing In The Vehicle
Chapter 01┃ Before Use Installing in the Vehicle Caution upon Installation • Please refrain from repeated detaching/re-attaching once the product has been installed. • Do not install or use the device outside of the vehicle. Attach the device in a place where the driver’s field of vision is not blocked. Position of Installation •... - Page 11 Chapter 01┃ Before Use Installing in the Vehicle Connecting the Black box to the Vehicle Connect the Main Unit and the Mount Connect Cigarette Jack (Main Unit) Place the groove at the top side of the main Connect the cigarette jack cable with the unit against the groove area on the mount and main unit.
-
Page 12: Basic Product Functions
Chapter 02┃ Basic Product Functions Installing in the Vehicle Inserting the Memory Card • Insert the memory card with the part where the cut edge facing up. (refer to the product image above) • Fully insert the card into the card slot. •... -
Page 13: Using The Memory Card
Chapter 02┃ Basic Product Functions Using the Memory Card Recording Times by Memory Capacity The recording times shown below are the maximum values calculated for each recording mode and may slightly differ upon actual use. Infinite Mode Parking Mode (2CH 30fps recording) (2CH 5fps recording) Memory Classification... -
Page 14: Firmware Update
Chapter 02┃ Basic Product Functions Firmware Update Firmware Update Download the firmware from the following website. Remove the Micro SD card from the device and use a card reader to connect with the PC. Back up data currently in the memory card separately and format the memory card. -
Page 15: Key Product Features
Chapter 02┃ Basic Product Functions Key Product Features 4. Compatibility with various memory Key Product Features Supports 8GB, 16GB, 32GB memory cards. 1. HD Resolution Real Time Recording Within the HD (1280 x 720) resolution of the 16:9 WIDE screen, recording is conducted up 5. - Page 16 Chapter 02┃ Basic Product Functions Key Product Features Manual Recording (Emergency Recording) Various Recording Features If the user presses the Manual record button, then the 8. Various Recording Features corresponding video will be saved as a manual recording file even when there is no impact. (saved as man file name, Example: man_20120410_121030A) Infinite Recording Normal video files are saved starting from device...
-
Page 17: How To Operate The Product
Chapter 02┃ Basic Product Functions How to Operate the Product Operating the Product After product installation, if the vehicle power or the ignition is turned on, the red / green LED is alternately displayed and then after about 10 seconds, and then the red LED will blink twice, and then the LED will blink as green and the ‘Starting recording’... - Page 18 Chapter 02┃ Basic Product Functions How to Operate the Product Operating the Product An accident, sudden braking, sudden acceleration, sudden turn, or some other form of impact on the vehicle is detected Event by the built-in sensor. Recording ‘Bee Beep’ voice guidance will sound and the red /green LED will blink alternately to indicate that an event video is being recorded.
-
Page 19: Voice Guidance On Product States And Led Display
Chapter 02┃ Basic Product Functions How to Operate the Product Voice Guidance on Product States and LED Display Voice Guidance Button State Operating State GREEN Operation Voice Guidance Beep After ON for 0.2 seconds, turns ON after ON for 0.2 seconds Power ON Power turned On 10 seconds and then... - Page 20 Chapter 02┃ Basic Product Functions How to Operate the Product Voice Guidance on Product States and LED Display - 2 Voice Guidance Button State Operating State GREEN Operation Voice Guidance Beep Changes from recording Start Parking stopped state to parking Normal blinking “...
- Page 21 Chapter 02┃ Basic Product Functions How to Operate the Product Voice Guidance on Product States and LED Display - 3 Voice Guidance Button State Operating State GREEN Operation Voice Guidance Beep When connecting rear When connecting rear view “Rearview recording is selected” “Ddililing(↑)”...
-
Page 22: Checking Through The Micro Sd Card
Chapter 02┃ Basic Product Functions Checking through the Micro SD Card 1. Eject the Micro SD card from the device and use a card reader to connect with the PC. 2. Once connected with the PC, a removable disc will be started. 3. - Page 23 Chapter 02┃ Basic Product Functions Checking through the Micro SD Card Record : Folder with recorded files • As folder in which recorded video files are saved, includes Front/Rear folders. Front folder : Folder where front camera video files are saved •...
-
Page 24: Pc Viewer Features
Chapter 03┃ PC Viewer Features Installing the PC Viewer 4) To continue, click “Next”. To save as a 1) double click different name, enter the desired name. the HuvitechPCViewerSetup- 1.2.0.0.exe file. 5) Check the desired icons you want to 2) In the installation window, create and click “Next”. - Page 25 Chapter 03┃ PC Viewer Features Installing the PC Viewer 1) To install Microsoft Visual C++ 2008 Redistributable, click “Next”. 2) Click “Next”. 6) Once the PC Viewer is properly installed, the Huvitech PCViewer and Huvitech PCViewer Configuration Editor shortcut buttons will be displayed on your desktop. 3) Check the “I agree”...
-
Page 26: Pc Viewer Features
Chapter 03┃ PC Viewer Features PC Viewer Features Main Control Play Control File List & Accelerometer Information Setting Button Information : PC Viewer image and functions may partially change with future updates. 1. Main Screen Increase Playspeed (-5~+5) Play position Recorded files in file list are shown simultaneously as 2CH video. - Page 27 Chapter 03┃ PC Viewer Features PC Viewer Features 3. File List 3) Select Video Type 1) Add Video Files When the right-side mouse button is pressed within the fie list title area, the selection menu shown below is displayed. The file list is sorted in ascending order.
- Page 28 Chapter 03┃ PC Viewer Features PC Viewer Features 4. Partial Video Zoom-In 5. Full Screen Mode Partial Video Zoom-In Select the area to zoom-in on by dragging with the mouse. The zoom-in area is shown on the opposite side. If the area is not properly selected, then video zoom-in is canceled.
- Page 29 Chapter 03┃ PC Viewer Features PC Viewer Features 7. Map 9. Video Capture If GPS information exists within While playing, clicking the video capture button will save or print the video, then the map is displayed the current screen. at the bottom right side. 10.
- Page 30 Chapter 03┃ PC Viewer Features PC Viewer Features Recording 1. Video Resolution : Set infinite video resolution 2. Infinite Video Quality : Set infinite video quality 3. G-Sensor Sensibility : Sets event sensitivity during infinite recording 4. Audio Input Volume : Adjusts volume upon recording (when set to 0, sound is not recorded) 5.
- Page 31 Chapter 03┃ PC Viewer Features PC Viewer Features Camera Parking 1. Brightness 1. Parking Video Quality : Sets Camera Brightness : Sets parking video quality 2. Parking Event Mode 2. Contrast : Sets whether to detect events during : Sets Camera Contrast parking recording 3.
-
Page 32: Product Specifications
Chapter 04┃Product Specifications Product Specifications Category Specifications Reference MV8670 Product Classification Front HD 30fps, Rear HD 30fps 2Chs Black Box Color/Size/Weight Black / 79mm x 53mm x Ø 30mm Supported Capacity micro SD 8GB / 16GB / 32GB Maker : ADATA, Class 10 recommended Sensor 2M HD CMOS Sensor Viewing... - Page 33 Chapter 04┃Product Specifications Product Specifications Category Specification Reference File Saving Method Infinite Recording 1 minute recording : Fixed Size Infinite - Infinite Recording : 64MB 1 minute recording – 10 seconds before event / 50 Mode Event Recording (Impact / Manual) - Parking Recording : 16MB seconds after Infinite Mode...
