Summary of Contents for Dixon Bayco FT7500 Series

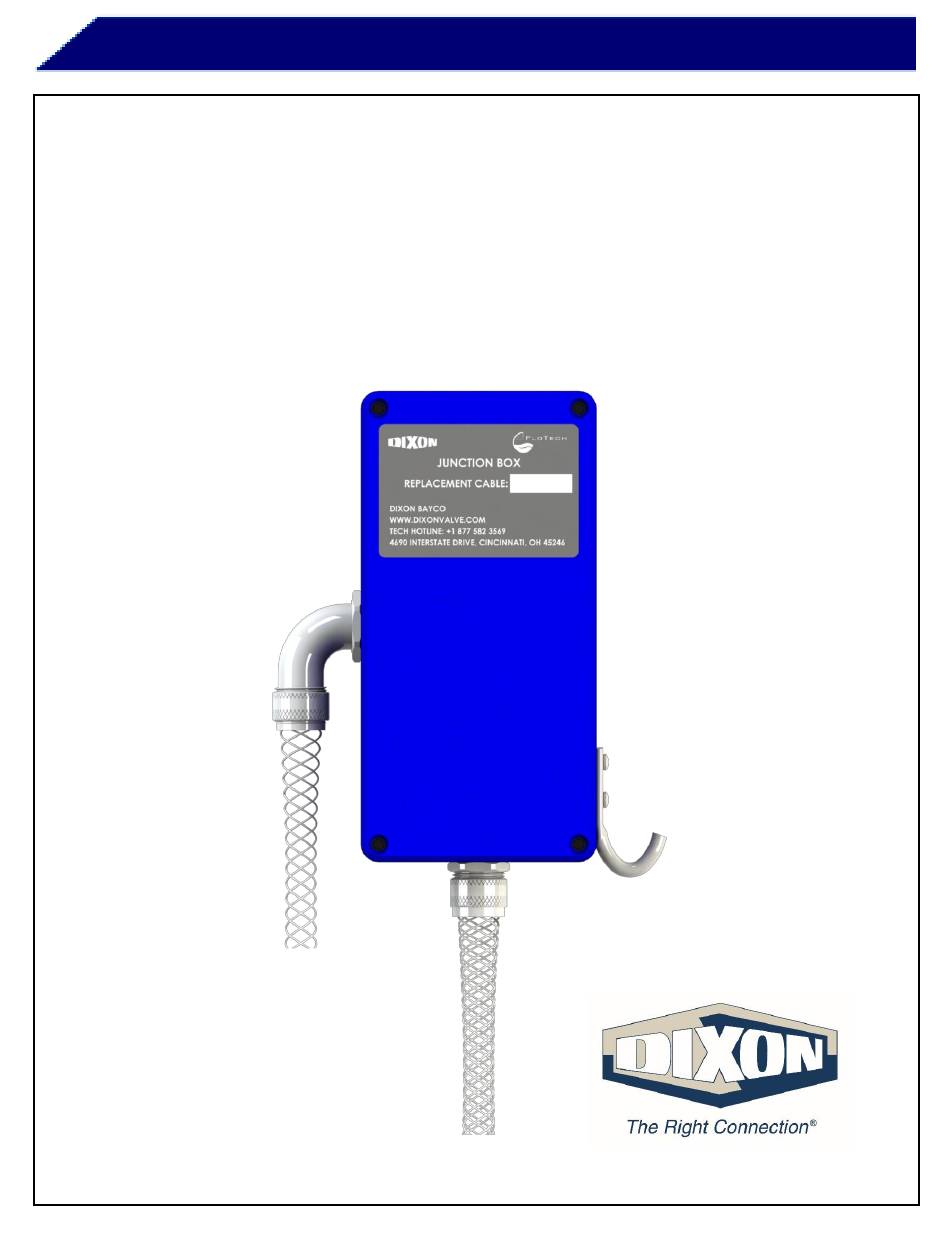

- Page 1 FT7500 Series Junction Box Maintenance & Operating Instructions Dixon Bayco FT7500 SERIES JUNCTION BOXES Refer to Illustration dixonvalve.com 877.582.3569 REV A 2017/11/08...
-
Page 2: Product Overview
FT7500 Series Junction Box Product Overview FT7500 series junction boxes are designed to provide a convenient, safe, and protected point of service for rack cord accessories. When installed correctly, the junction box will protect rack cords from excessive wear and tear, and cord connections from water and corrosion while in harsh environments. - Page 3 FT7500 Series Junction Box Junction Box Installation 1. Using the bolt pattern provided to the right, locate a sturdy area large enough to install the junction box. Consider the proximity to the incoming trailers as rack cords are generally 20-30FT in length. The box should be easily accessible to return the cable to the integrated hook when not in use.
- Page 4 FT7500 Series Junction Box For Sales and Service Contact Mexico: Europe: Dixva, S. de R.L. de C.V. Dixon Group Europe Ltd. Monterrey, N.L Preston, England Phone: 01-800-00-DIXON (34966) Phone: +44 (0) 1772 323529 Fax: 01-81-8354-8197 Fax: +44 (0) 1772 314664 E-mail: contactenos@dixonvalve.com.mx...
