Redback A 2080A Operating Instructions

Public address speaker zone selection panel

The REDBACK A 2080A Public Address Speaker Zone Selection

Panel allows you to select either;

1. One speaker zone only.

2. A combination of speaker zones.

3. All speaker zones

This allows great flexibility when paging.

By connecting together one or more Zone Selection Panels in a 'Daisy

Chain' fashion, any number of speaker zones are available (eg Three

Zone Selection Panels will give you a total of 30 speaker zones).

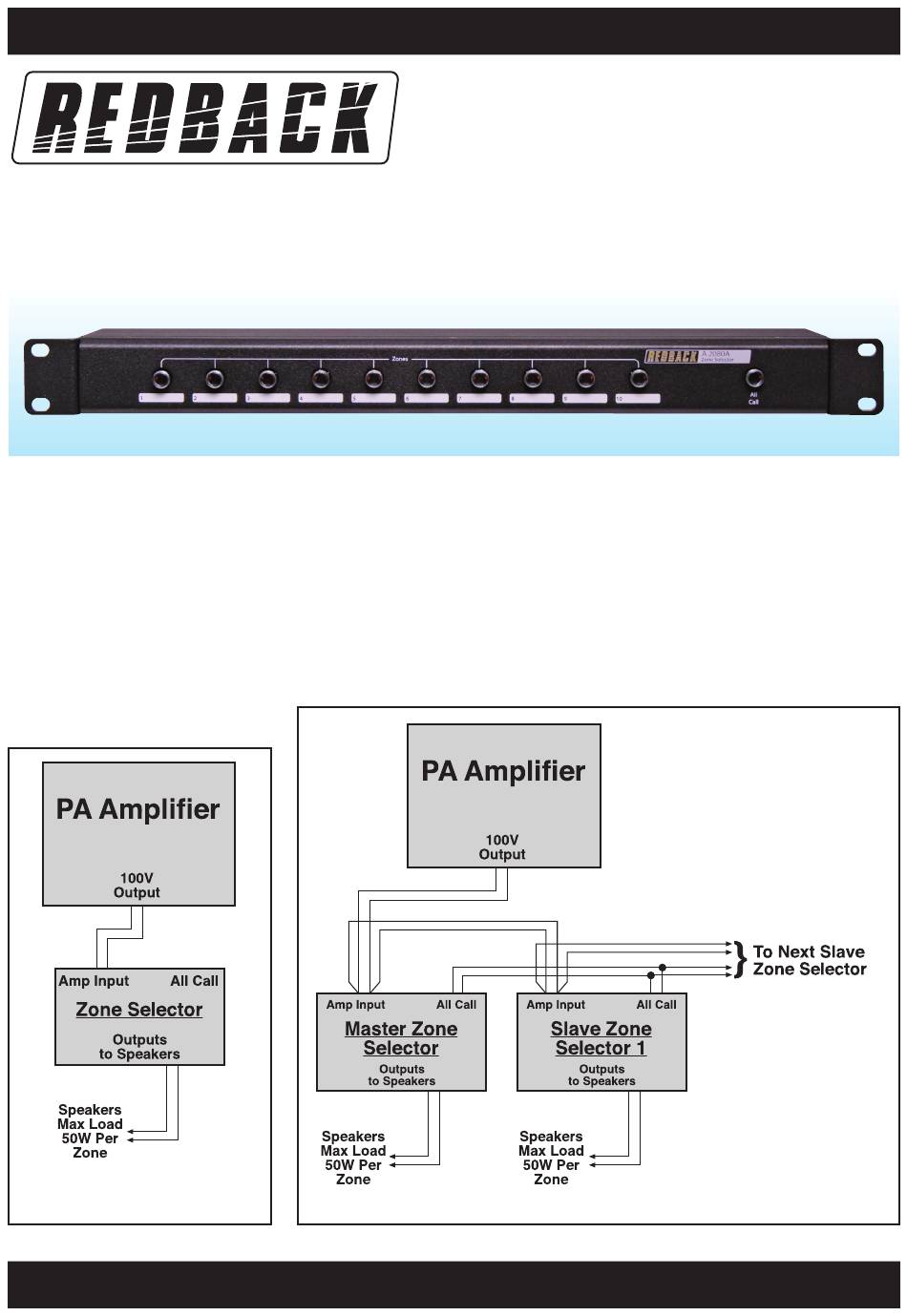

Connecting one zone

selection panel.

REDBACK A 2080A PA Speaker Zone Selection Panel

Operating Instructions

Distributed by Altronic Distributors Pty. Ltd. Perth. Western Australia.

Proudly Assembled in Australia

A 2080A

Zone Selection Panel

We recommend the Zone Selection Panels for use only with 70 Volt or

100 Volt line amplifiers with a maximum load of 50 watts per zone (at

100V). Connecting these units to a 4Ω or 8Ω amplifier system may

damage your amplifier.

We have supplied an identification strip (with double sided tape)

which can be attached to the front panel of the unit. The identifica-

tion strip can be engraved to help identify your speaker zones.

Connecting two or

more zone selection

panels.

Doc. PS1292
